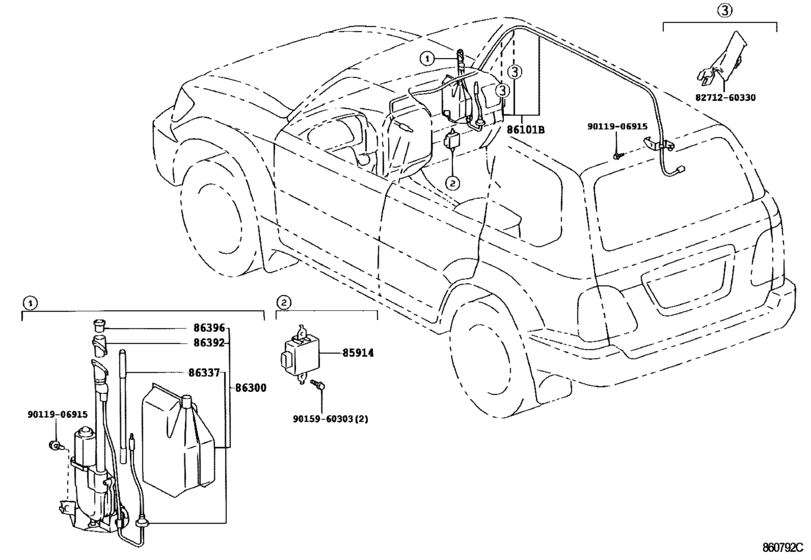

Antenna ([01.1998 - ] W(DIVERCITY ANTENNA) (9801- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85914
|
85914
85914-60070 Relay, Motor Antenna Control[08.2002 - 05.2005] UZJ100 |
85914-60070 |
US $250.43 |
||
|
86101B
|
86101B
86101-60371 Cover, Antenna CordANTENNA CORD [08.2002 - 05.2005] UZJ100 |
86101-60371 |
US $110.66 |
||
|
86101B
|
86101B
86101-60372
Cover, Antenna Cord
[05.2005 -] UZJ100 |
86101-60372 |
— | ||
|
86300
|
86300
86300-60161 Antenna Assy, W/holderW/HOLDER [08.2002 - 05.2005] UZJ100 |
86300-60161 |
from US $363.30 |
||
|
86337
|
86337
86337-60150
Rod & Pipe, Sealed W/cable
[08.2002 - 01.2003] UZJ100 |
86337-60150 |
— | ||
| replacement | |||||
|
86337
|
86337
86337-60151 Rod & Pipe, Sealed W/cable[08.2002 - 01.2003] UZJ100 |
86337-60151 |
US $53.50 |
||
|
86337
|
86337
86337-60151 Rod & Pipe, Sealed W/cable[01.2003 - 05.2005] UZJ100 |
86337-60151 |
US $53.50 |
||
|
86392
|
86392
86392-60150 Ornament, AntennaANTENNA [08.2002 - 05.2005] UZJ100 |
86392-60150 |
from US $7.14 |
||
|
86396
|
86396
86396-89102 Nut, Antenna[08.2002 - 05.2005] UZJ100 |
86396-89102 |
from US $3.32 |
||
|
8271260330
|
8271260330
82712-60330 Hose, Suction |
82712-60330 |
US $3.93 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
