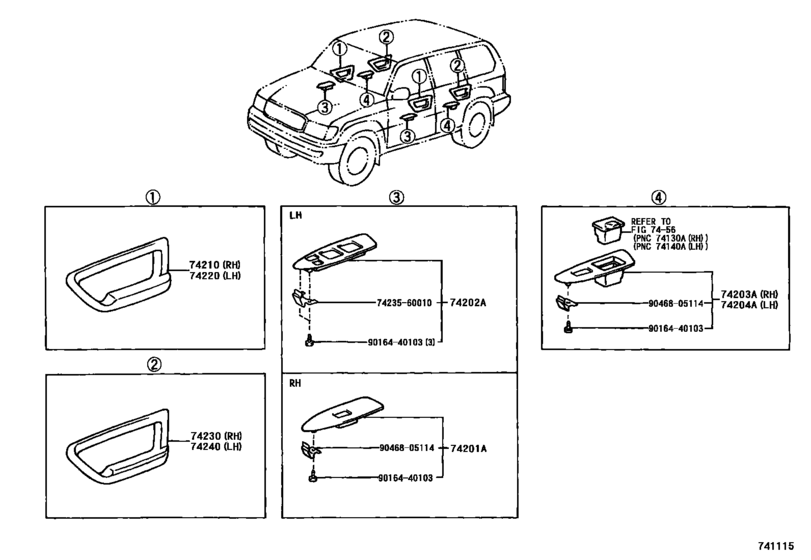

Armrest & Visor ([08.2002 - ] ARMREST (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74201A
|
74201A
74231-60261
Panel Sub-Assy, Front Armrest Base, Upper Rh
[08.2002 - 05.2005] UZJ100 |
74231-60261 |
— | ||
|
74201A
|
74201A
74231-60520-C0
Panel Sub-Assy, Front Armrest Base, Upper Rh
[10.2006 -] UZJ100 SPECIAL EDITION(USA),BLACK,TRIM1# |
74231-60520-C0 |
— | ||
|
74202A
|
74202A
74232-60231 Panel Sub-Assy, Front Armrest Base, Upper LhFRONT ARMREST BASE, UPPER LH [08.2002 - 05.2005] UZJ100 |
74232-60231 |
US $247.52 |
||
|
74202A
|
74202A
74232-60500-C0
Panel Sub-Assy, Front Armrest Base, Upper Lh
[10.2006 -] UZJ100 SPECIAL EDITION(USA),BLACK,TRIM1# |
74232-60500-C0 |
— | ||
|
74203A
|
74203A
74271-60081 Panel Sub-Assy, Rear Armrest Base, Upper Rh[08.2002 - 05.2005] UZJ100 |
74271-60081 |
US $451.36 |
||
|
74203A
|
74203A
74271-60170-C0 Panel Sub-Assy, Rear Armrest Base, Upper Rh[10.2006 -] UZJ100 SPECIAL EDITION(USA),BLACK,TRIM1# |
74271-60170-C0 |
US $451.36 |
||
|
74204A
|
74204A
74272-60081 Panel Sub-Assy, Rear Armrest Base, Upper Lh[08.2002 - 05.2005] UZJ100 |
74272-60081 |
US $451.36 |
||
|
74204A
|
74204A
74272-60170-C0 Panel Sub-Assy, Rear Armrest Base, Upper Lh[10.2006 -] UZJ100 SPECIAL EDITION(USA),BLACK,TRIM1# |
74272-60170-C0 |
US $451.36 |
||
|
74210
|
74210
74210-60100-B1 Armrest Assy, Front, RhFRONT, RH [08.2002 - 08.2003] UZJ100 DARK GRAY,TRIM1# |
74210-60100-B1 |
US $138.32 |
||
| replacement | |||||
|
74210
|
74210
74210-60102-B2
Armrest Assy, Front, Rh
[08.2002 - 08.2003] UZJ100 DARK GRAY,TRIM1# |
74210-60102-B2 |
— | ||
|
74210
|
74210
74210-60100-E1
Armrest Assy, Front, Rh
[08.2002 - 08.2003] UZJ100 SANDALWOOD,TRIM0# |
74210-60100-E1 |
— | ||
| replacement | |||||
|
74210
|
74210
74210-60102-E2
Armrest Assy, Front, Rh
[08.2002 - 08.2003] UZJ100 SANDALWOOD,TRIM0# |
74210-60102-E2 |
— | ||
|
74210
|
74210
74210-60102-B2
Armrest Assy, Front, Rh
[08.2003 - 05.2005] UZJ100 DARK GRAY,TRIM0# |
74210-60102-B2 |
— | ||
|
74210
|
74210
74210-60102-E2
Armrest Assy, Front, Rh
[08.2003 - 05.2005] UZJ100 SANDALWOOD,TRIM1# |
74210-60102-E2 |
— | ||
|
74220
|
74220
74220-60100-B1 Armrest Assy, Front, LhFRONT, LH [08.2002 - 08.2003] UZJ100 DARK GRAY,TRIM1# |
74220-60100-B1 |
US $138.32 |
||
| replacement | |||||
|
74220
|
74220
74220-60102-B2 Armrest Assy, Front, Lh[08.2002 - 08.2003] UZJ100 DARK GRAY,TRIM1# |
74220-60102-B2 |
US $134.53 |
||
|
74220
|
74220
74220-60100-E1
Armrest Assy, Front, Lh
[08.2002 - 08.2003] UZJ100 SANDALWOOD,TRIM0# |
74220-60100-E1 |
— | ||
| replacement | |||||
|
74220
|
74220
74220-60102-E2
Armrest Assy, Front, Lh
[08.2002 - 08.2003] UZJ100 SANDALWOOD,TRIM0# |
74220-60102-E2 |
— | ||
|
74220
|
74220
74220-60102-B2 Armrest Assy, Front, Lh[08.2003 - 05.2005] UZJ100 DARK GRAY,TRIM0# |
74220-60102-B2 |
US $134.53 |
||
|
74220
|
74220
74220-60102-E2
Armrest Assy, Front, Lh
[08.2003 - 05.2005] UZJ100 SANDALWOOD,TRIM1# |
74220-60102-E2 |
— | ||
|
74230
|
74230
74250-60020-B1 Armrest Assy, Rear, RhREAR, RH [08.2002 - 08.2003] UZJ100 DARK GRAY,TRIM1# |
74250-60020-B1 |
US $138.32 |
||
| replacement | |||||
|
74230
|
74230
74250-60022-B2
Armrest Assy, Rear, Rh
[08.2002 - 08.2003] UZJ100 DARK GRAY,TRIM1# |
74250-60022-B2 |
— | ||
|
74230
|
74230
74250-60020-E1 Armrest Assy, Rear, Rh[08.2002 - 08.2003] UZJ100 SANDALWOOD,TRIM0# |
74250-60020-E1 |
US $138.32 |
||
| replacement | |||||
|
74230
|
74230
74250-60022-E2
Armrest Assy, Rear, Rh
[08.2002 - 08.2003] UZJ100 SANDALWOOD,TRIM0# |
74250-60022-E2 |
— | ||
|
74230
|
74230
74250-60022-B2
Armrest Assy, Rear, Rh
[08.2003 - 05.2005] UZJ100 DARK GRAY,TRIM0# |
74250-60022-B2 |
— | ||
|
74230
|
74230
74250-60022-E2
Armrest Assy, Rear, Rh
[08.2003 - 05.2005] UZJ100 SANDALWOOD,TRIM1# |
74250-60022-E2 |
— | ||
|
74240
|
74240
74260-60020-B1
Armrest Assy, Rear, Lh
[08.2002 - 08.2003] UZJ100 DARK GRAY,TRIM1# |
74260-60020-B1 |
— | ||
| replacement | |||||
|
74240
|
74240
74260-60022-B2
Armrest Assy, Rear, Lh
[08.2002 - 08.2003] UZJ100 DARK GRAY,TRIM1# |
74260-60022-B2 |
— | ||
|
74240
|
74240
74260-60020-E1 Armrest Assy, Rear, Lh[08.2002 - 08.2003] UZJ100 SANDALWOOD,TRIM0# |
74260-60020-E1 |
US $138.32 |
||
| replacement | |||||
|
74240
|
74240
74260-60022-E2
Armrest Assy, Rear, Lh
[08.2002 - 08.2003] UZJ100 SANDALWOOD,TRIM0# |
74260-60022-E2 |
— | ||
|
74240
|
74240
74260-60022-B2
Armrest Assy, Rear, Lh
[08.2003 - 05.2005] UZJ100 DARK GRAY,TRIM0# |
74260-60022-B2 |
— | ||
|
74240
|
74240
74260-60022-E2
Armrest Assy, Rear, Lh
[08.2003 - 05.2005] UZJ100 SANDALWOOD,TRIM1# |
74260-60022-E2 |
— | ||
|
7423560010
|
7423560010
74235-60010 Panel, Rear Armrest Base, Upper |
74235-60010 |
US $1.41 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.25 |
||
|
9046805114
|
9046805114
90468-05114 CLIP |
90468-05114 |
from US $3.94 |
||
