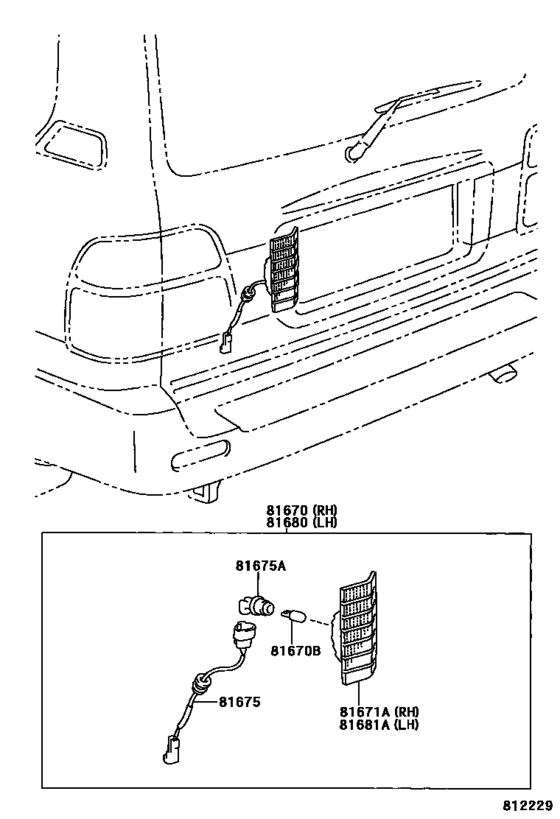

Back Up Lamp ([08.2002 - ] (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81670
|
81670
81670-60080
Lamp Assy, Back-Up, Rh
[08.2002 - 05.2005] UZJ100 |
81670-60080 |
— | ||
| replacement | |||||
|
81670
|
81670
81670-60081
Lamp Assy, Back-Up, Rh
[08.2002 - 05.2005] UZJ100 |
81670-60081 |
— | ||
|
81670
|
81670
81670-60081
Lamp Assy, Back-Up, Rh
[12.2006 -] UZJ100 |
81670-60081 |
— | ||
|
81670B
|
81670B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[08.2002 - 05.2005] UZJ100 12V 16W |
90981-11059 |
from US $3.15 |
||
|
81671A
|
81671A
81671-60080 Lens & Body, Back-Up Lamp[08.2002 - 05.2005] UZJ100 |
81671-60080 |
US $94.64 |
||
| replacement | |||||
|
81671A
|
81671A
81671-60081 Lens & Body, Back-Up Lamp[08.2002 - 05.2005] UZJ100 |
81671-60081 |
US $94.58 |
||
|
81671A
|
81671A
81671-60081 Lens & Body, Back-Up Lamp[12.2006 -] UZJ100 |
81671-60081 |
US $94.58 |
||
|
81675
|
81675
81675-60080 Socket & Wire, Back-Up Lamp[08.2002 - 05.2005] UZJ100 |
81675-60080 |
US $20.97 |
||
|
81675A
|
81675A
90075-60005 Socket And Wire, License Plate Lamp[08.2002 - 05.2005] UZJ100 |
90075-60005 |
from US $6.04 |
||
|
81680
|
81680
81680-60040 Lamp Assy, Back Up, Lh[08.2002 - 05.2005] UZJ100 |
81680-60040 |
US $133.95 |
||
| replacement | |||||
|
81680
|
81680
81680-60041 Lamp Assy, Back Up, Lh[08.2002 - 05.2005] UZJ100 |
81680-60041 |
US $133.95 |
||
|
81680
|
81680
81680-60041 Lamp Assy, Back Up, Lh[12.2006 -] UZJ100 |
81680-60041 |
US $133.95 |
||
|
81681A
|
81681A
81681-60040
Lens & Body, Back-Up Lamp, Lh
[08.2002 - 05.2005] UZJ100 |
81681-60040 |
— | ||
| replacement | |||||
|
81681A
|
81681A
81681-60041 Lens & Body, Back-Up Lamp, Lh[08.2002 - 05.2005] UZJ100 |
81681-60041 |
from US $95.40 |
||
|
81681A
|
81681A
81681-60041 Lens & Body, Back-Up Lamp, Lh[12.2006 -] UZJ100 |
81681-60041 |
from US $95.40 |
||
