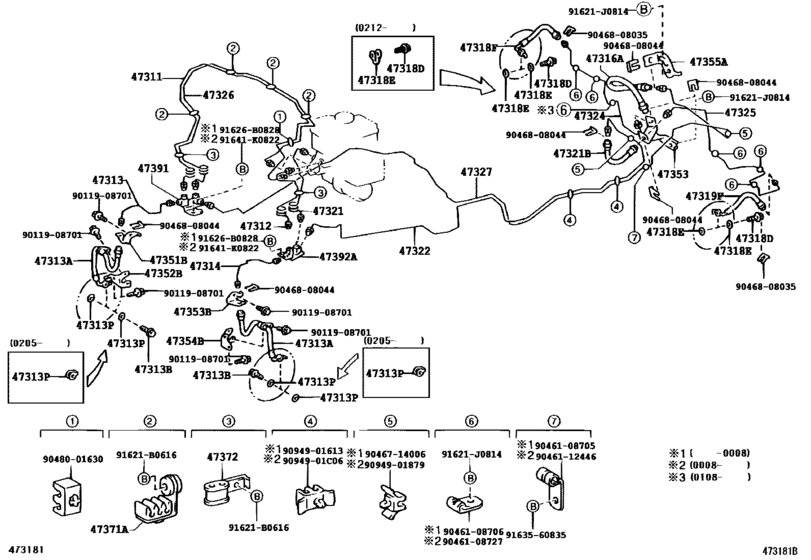

Brake Tube & Clamp ([07.1999 - ] (9907- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-60681
Tube, Front Brake, No.1
[08.2002 - 05.2005] UZJ100 |
47311-60681 |
— | ||
|
47312
|
47312
47312-6A160 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [08.2002 - 05.2005] UZJ100 |
47312-6A160 |
from US $15.50 |
||
|
47313
|
47313
47313-60242 Tube, Front Brake, No.3[08.2002 - 05.2005] UZJ100 |
47313-60242 |
US $10.21 |
||
|
47313A
|
47313A
90947-02A21
Hose, Flexible, No.1(For Front)
[08.2002 - 05.2005] UZJ100 RH |
90947-02A21 |
— | ||
| replacement | |||||
|
47313A
|
47313A
90947-02F28 Hose, Flexible, No.1(For Front)[08.2002 - 05.2005] UZJ100 RH |
90947-02F28 |
from US $33.94 |
||
|
47313A
|
47313A
90947-02A27 Hose, Flexible, No.1(For Front)[08.2002 - 05.2005] UZJ100 LH |
90947-02A27 |
US $25.48 |
||
| replacement | |||||
|
47313A
|
47313A
90947-02F29 Hose, Flexible, No.1(For Front)[08.2002 - 05.2005] UZJ100 LH |
90947-02F29 |
from US $33.94 |
||
|
47313A
|
47313A
90947-02F28 Hose, Flexible, No.1(For Front)[02.2007 -] UZJ100 RH |
90947-02F28 |
from US $33.94 |
||
|
47313A
|
47313A
90947-02F29 Hose, Flexible, No.1(For Front)[02.2007 -] UZJ100 LH |
90947-02F29 |
from US $33.94 |
||
|
47313B
|
47313B
90401-10058 Bolt, Union(For Front Flexible Hose)[08.2002 - 05.2005] UZJ100 |
90401-10058 |
from US $3.94 |
||
|
47313P
|
47313P
47389-50020 Gasket(For Front Flexible Hose)[08.2002 - 05.2005] UZJ100 |
47389-50020 |
from US $4.79 |
||
|
47314
|
47314
47314-60232 Tube, Front Brake, No.4[08.2002 - 05.2005] UZJ100 |
47314-60232 |
US $10.21 |
||
|
47316A
|
47316A
90947-02B59 Hose, Flexible(For Rear Brake Tube)[08.2002 - 05.2005] UZJ100 |
90947-02B59 |
US $21.26 |
||
| replacement | |||||
|
47316A
|
47316A
90947-02F30 Hose, Flexible(For Rear Brake Tube)[08.2002 - 05.2005] UZJ100 |
90947-02F30 |
from US $28.22 |
||
|
47316A
|
47316A
90947-02F30 Hose, Flexible(For Rear Brake Tube)[02.2007 -] UZJ100 |
90947-02F30 |
from US $28.22 |
||
|
47318D
|
47318D
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[08.2002 - 12.2002] UZJ100 |
90401-10015 |
from US $3.58 |
||
|
47318D
|
47318D
90401-10058 Bolt, Union(For Front Flexible Hose)[12.2002 - 05.2005] UZJ100 |
90401-10058 |
from US $3.94 |
||
|
47318E
|
47318E
47389-50020 Gasket(For Front Flexible Hose)[12.2002 - 05.2005] UZJ100 |
47389-50020 |
from US $4.79 |
||
|
47318E
|
47318E
90430-10074 Gasket(For Oil Pressure Regulator)[08.2002 - 12.2002] UZJ100 |
90430-10074 |
from US $0.86 |
||
|
47318F
|
47318F
90947-02A09
Hose, Flexible(For Rear Rh)
[08.2002 - 05.2005] UZJ100 |
90947-02A09 |
— | ||
| replacement | |||||
|
47318F
|
47318F
90947-02F25 Hose, Flexible(For Rear Rh)[08.2002 - 05.2005] UZJ100 |
90947-02F25 |
from US $21.67 |
||
|
47318F
|
47318F
90947-02F25 Hose, Flexible(For Rear Rh)[11.2006 - 08.2007] UZJ100 |
90947-02F25 |
from US $21.67 |
||
|
47319F
|
47319F
90947-02A10
Hose, Flexible(For Rear Lh)
[08.2002 - 05.2005] UZJ100 |
90947-02A10 |
— | ||
| replacement | |||||
|
47319F
|
47319F
90947-02F26 Hose, Flexible(For Rear Lh)[08.2002 - 05.2005] UZJ100 |
90947-02F26 |
from US $21.67 |
||
|
47319F
|
47319F
90947-02F26 Hose, Flexible(For Rear Lh)[11.2006 - 08.2007] UZJ100 |
90947-02F26 |
from US $21.67 |
||
|
47321
|
47321
47321-60360 Tube, Rear Brake, No.1REAR BRAKE, NO.1 [08.2002 - 05.2005] UZJ100 |
47321-60360 |
US $19.22 |
||
|
47321B
|
47321B
90947-02B60
Hose, Flexible(For Rear Brake Tube)
[08.2002 - 05.2005] UZJ100 |
90947-02B60 |
— | ||
| replacement | |||||
|
47321B
|
47321B
90947-02F31 Hose, Flexible(For Rear Brake Tube)[08.2002 - 05.2005] UZJ100 |
90947-02F31 |
from US $26.88 |
||
|
47321B
|
47321B
90947-02F31 Hose, Flexible(For Rear Brake Tube)[02.2007 -] UZJ100 |
90947-02F31 |
from US $26.88 |
||
|
47322
|
47322
47322-60743
Tube, Rear Brake, No.2
[08.2002 - 05.2005] UZJ100 |
47322-60743 |
— | ||
|
47324
|
47324
47324-60322 Tube, Rear Brake, No.4[08.2002 - 05.2005] UZJ100 |
47324-60322 |
US $23.41 |
||
|
47325
|
47325
47325-60252 Tube, Rear Brake, No.5[08.2002 - 05.2005] UZJ100 |
47325-60252 |
US $18.70 |
||
|
47326
|
47326
47326-60340 Tube, Rear Brake, No.6REAR BRAKE, NO.6 [08.2002 - 05.2005] UZJ100 |
47326-60340 |
US $32.03 |
||
|
47327
|
47327
47327-60122 Tube, Rear Brake, No.7REAR BRAKE, NO.7 [08.2002 - 05.2005] UZJ100 |
47327-60122 |
US $64.47 |
||
|
47351B
|
47351B
47351-60230 Bracket, Flexible Hose, No.1[08.2002 - 05.2005] UZJ100 |
47351-60230 |
US $6.81 |
||
|
47352B
|
47352B
47351-60240 Bracket, Flexible Hose, No.2[08.2002 - 05.2005] UZJ100 |
47351-60240 |
US $9.32 |
||
|
47353
|
47353
47351-60270 Bracket, Flexible Hose(For Rear)[08.2002 - 05.2005] UZJ100 |
47351-60270 |
US $16.25 |
||
|
47353B
|
47353B
47352-60140 Bracket, Flexible Hose, No.3[08.2002 - 05.2005] UZJ100 |
47352-60140 |
US $6.81 |
||
|
47354B
|
47354B
47352-60150 Bracket, Flexible Hose, No.4[08.2002 - 05.2005] UZJ100 |
47352-60150 |
US $9.32 |
||
|
47355A
|
47355A
47355-60160 Bracket, Flexible Hose, No.5[08.2002 - 05.2005] UZJ100 |
47355-60160 |
US $7.34 |
||
|
47371A
|
47371A
47371-60200 Clamp, Brake Tube, No.1[08.2002 - 05.2005] UZJ100 |
47371-60200 |
US $15.23 |
||
|
47372
|
47372
47371-60220 Clamp, Brake Tube, No.2[08.2002 - 05.2005] UZJ100 |
47371-60220 |
US $12.19 |
||
|
47391
|
47391
47391-60090
Way, Brake Tube
[08.2002 - 05.2005] UZJ100 |
47391-60090 |
— | ||
|
47392A
|
47392A
47392-60040 Way, Brake Tube, No.2[08.2002 - 05.2005] UZJ100 |
47392-60040 |
from US $11.15 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.78 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.78 |
||
|
91626B0828
|
91626B0828
91626-B0828
New Genuine Part
|
91626-B0828 |
— | ||
| replacement | |||||
|
91626B0828
|
91626B0828
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
91641K0822
|
91641K0822
91641-K0822 BOLT WWASHER |
91641-K0822 |
US $1.43 |
||
|
9094901C06
|
9094901C06
90949-01C06 Clamp, Brake Tube, No.6 |
90949-01C06 |
US $5.02 |
||
|
9011908701
|
9011908701
90119-08701 BOLT |
90119-08701 |
from US $0.99 |
||
|
9046108705
|
9046108705
90461-08705 New Genuine Part |
90461-08705 |
US $5.73 |
||
|
9046108706
|
9046108706
90461-08706 CLAMP |
90461-08706 |
from US $2.45 |
||
|
9046108727
|
9046108727
90461-08727 CLAMP |
90461-08727 |
from US $1.82 |
||
|
9046112446
|
9046112446
90461-12446 New Genuine Part |
90461-12446 |
US $2.97 |
||
|
9046714006
|
9046714006
90467-14006 New Genuine Part |
90467-14006 |
US $4.12 |
||
|
9046808035
|
9046808035
90468-08035 CLIP |
90468-08035 |
from US $1.10 |
||
|
9046808044
|
9046808044
90468-08044
CLIP
|
90468-08044 |
— | ||
| replacement | |||||
|
9046808044
|
9046808044
90468-08035 CLIP |
90468-08035 |
from US $1.10 |
||
|
9048001630
|
9048001630
90480-01630 Grommet(For Brake Tube) |
90480-01630 |
US $5.10 |
||
|
9094901613
|
9094901613
90949-01613 CLAMP |
90949-01613 |
from US $2.66 |
||
|
9094901879
|
9094901879
90949-01879 New Genuine Part |
90949-01879 |
US $2.20 |
||
|
9163560835
|
9163560835
91635-60835 New Genuine Part |
91635-60835 |
US $1.75 |
||
| replacement | |||||
|
9163560835
|
9163560835
91631-G0830 BOLT WWASHER |
91631-G0830 |
US $2.87 |
||
