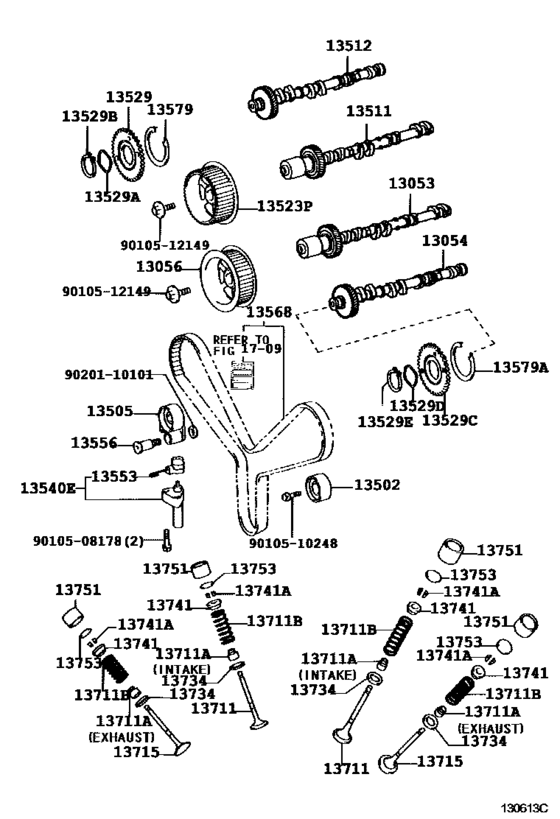

Camshaft & Valve ([01.1998 - 05.2005] (9801-0505)) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13053
|
13053
13053-50050
Camshaft Sub-Assy, No.3
[08.2002 - 05.2005] 2UZFE..UZJ100 |
13053-50050 |
— | ||
|
13053
|
13053
13053-50060 Camshaft Sub-Assy, No.3[05.2005 -] 2UZFE..UZJ100 |
13053-50060 |
from US $507.68 |
||
|
13054
|
13054
13054-50020 Camshaft Sub-Assy, No.4[05.2005 -] 2UZFE..UZJ100 |
13054-50020 |
US $375.07 |
||
|
13054
|
13054
13054-50030 Camshaft Sub-Assy, No.4[08.2002 - 05.2005] 2UZFE..UZJ100 |
13054-50030 |
US $588.22 |
||
|
13056
|
13056
13056-50030 Pulley Sub-Assy, Camshaft Timing, Lh[08.2002 - 05.2005] 2UZFE..UZJ100 |
13056-50030 |
from US $73.04 |
||
|
13056
|
13056
13056-50050 Pulley Sub-Assy, Camshaft Timing, Lh[05.2005 -] 2UZFE..UZJ100 |
13056-50050 |
US $119.39 |
||
|
13502
|
13502
13503-50011 Idler Sub-Assy, Timing Belt, No.2[08.2002 - 05.2005] 2UZFE..UZJ100 |
13503-50011 |
from US $49.73 |
||
|
13505
|
13505
13505-50030 Idler Sub-Assy, Timing Belt, No.1[08.2002 - 05.2005] 2UZFE..UZJ100 |
13505-50030 |
from US $49.56 |
||
|
13511
|
13511
13501-50050 Camshaft[08.2002 - 05.2005] 2UZFE..UZJ100 |
13501-50050 |
US $749.84 |
||
|
13511
|
13511
13501-50060 Camshaft[05.2005 -] 2UZFE..UZJ100 |
13501-50060 |
from US $543.63 |
||
|
13512
|
13512
13502-50020 Camshaft, No.2[05.2005 -] 2UZFE..UZJ100 |
13502-50020 |
US $375.07 |
||
|
13512
|
13512
13502-50030 Camshaft, No.2[08.2002 - 05.2005] 2UZFE..UZJ100 |
13502-50030 |
US $588.22 |
||
|
13523P
|
13523P
13523-50040 Pulley, Camshaft Timing[08.2002 - 05.2005] 2UZFE..UZJ100 |
13523-50040 |
from US $53.54 |
||
|
13523P
|
13523P
13523-50060
Pulley, Camshaft Timing
[05.2005 -] 2UZFE..UZJ100 |
13523-50060 |
— | ||
|
13529
|
13529
13529-50900 Gear, Camshaft Sub[08.2002 - 05.2005] 2UZFE..UZJ100 |
13529-50900 |
US $34.59 |
||
|
13529A
|
13529A
90206-42001 Washer, Wave(For Camshaft Sub Gear)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90206-42001 |
from US $1.01 |
||
|
13529B
|
13529B
90520-41004 Ring, Shaft Snap(For Camshaft Sub Gear)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90520-41004 |
from US $2.93 |
||
|
13529C
|
13529C
13529-50900 Gear, Camshaft Sub[08.2002 - 05.2005] 2UZFE..UZJ100 |
13529-50900 |
US $34.59 |
||
|
13529D
|
13529D
90206-42001 Washer, Wave(For Camshaft Sub Gear)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90206-42001 |
from US $1.01 |
||
|
13529E
|
13529E
90520-41004 Ring, Shaft Snap(For Camshaft Sub Gear)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90520-41004 |
from US $2.93 |
||
|
13540E
|
13540E
13540-50030 Tensioner Assy, Chain, No.1[08.2002 - 05.2005] 2UZFE..UZJ100 |
13540-50030 |
from US $53.66 |
||
|
13553
|
13553
13553-50020 Cover, Chain Tensioner Dust[08.2002 - 05.2005] 2UZFE..UZJ100 |
13553-50020 |
from US $6.40 |
||
|
13556
|
13556
13556-50010 Shaft, Timing Belt Idler[08.2002 - 05.2005] 2UZFE..UZJ100 |
13556-50010 |
from US $5.49 |
||
|
13568
|
13568
13568-59095 Belt, Timing[08.2002 - 05.2005] 2UZFE..UZJ100 |
13568-59095 |
from US $92.80 |
||
|
13579
|
13579
13579-50020 Washer, Camshaft Timing Gear Bolt[08.2002 - 05.2005] 2UZFE..UZJ100 |
13579-50020 |
from US $4.05 |
||
|
13579A
|
13579A
13579-50020 Washer, Camshaft Timing Gear Bolt[08.2002 - 05.2005] 2UZFE..UZJ100 |
13579-50020 |
from US $4.05 |
||
|
13711
|
13711
13711-50060 Valve, Intake[08.2002 - 05.2005] 2UZFE..UZJ100 |
13711-50060 |
from US $12.81 |
||
|
13711A
|
13711A
90913-02112 Seal Or Ring, O(For Valve Stem Oil)[08.2002 - 05.2005] 2UZFE..UZJ100 EXHAUST |
90913-02112 |
from US $4.84 |
||
|
13711A
|
13711A
90913-02113 Seal Or Ring, O(For Valve Stem Oil)[08.2002 - 05.2005] 2UZFE..UZJ100 INTAKE |
90913-02113 |
from US $6.18 |
||
|
13711B
|
13711B
90501-29043 Spring, Compression(For Inner)[08.2002 - 08.2004] 2UZFE..UZJ100 |
90501-29043 |
US $4.22 |
||
| replacement | |||||
|
13711B
|
13711B
90501-29059 Spring, Compression(For Inner)[08.2002 - 08.2004] 2UZFE..UZJ100 |
90501-29059 |
US $5.38 |
||
|
13711B
|
13711B
90501-29059 Spring, Compression(For Inner)[08.2004 - 05.2005] 2UZFE..UZJ100 |
90501-29059 |
US $5.38 |
||
|
13715
|
13715
13715-50060 Valve, Exhaust[08.2002 - 09.2004] 2UZFE..UZJ100 |
13715-50060 |
from US $21.93 |
||
|
13715
|
13715
13715-50070 Valve, Exhaust[09.2004 - 05.2005] 2UZFE..UZJ100 |
13715-50070 |
from US $19.21 |
||
|
13734
|
13734
13734-62020 Washer, Plate(For Valve Spring Seat)[08.2002 - 05.2005] 2UZFE..UZJ100 |
13734-62020 |
from US $0.55 |
||
|
13741
|
13741
13741-50030 Retainer, Valve Spring[08.2002 - 05.2005] 2UZFE..UZJ100 |
13741-50030 |
from US $2.43 |
||
|
13741A
|
13741A
90913-03028 Lock, Valve Spring Retainer[08.2002 - 05.2005] 2UZFE..UZJ100 |
90913-03028 |
from US $0.95 |
||
|
13751
|
13751
13751-50031 Lifter, Valve[08.2002 - 05.2005] 2UZFE..UZJ100 |
13751-50031 |
from US $12.46 |
||
|
13753
|
13753
13753-22020 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.000,MARK 00 |
13753-22020 |
from US $4.80 |
||
|
13753
|
13753
13753-22030 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.020,MARK 02 |
13753-22030 |
from US $4.80 |
||
|
13753
|
13753
13753-22040 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.040,MARK 04 |
13753-22040 |
from US $4.80 |
||
|
13753
|
13753
13753-22050 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.060,MARK 06 |
13753-22050 |
from US $4.80 |
||
|
13753
|
13753
13753-22060 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.080,MARK 08 |
13753-22060 |
from US $4.80 |
||
|
13753
|
13753
13753-22070 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.100,MARK 10 |
13753-22070 |
from US $4.80 |
||
|
13753
|
13753
13753-22080 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.120,MARK 12 |
13753-22080 |
from US $4.80 |
||
|
13753
|
13753
13753-22090 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.140,MARK 14 |
13753-22090 |
from US $4.80 |
||
|
13753
|
13753
13753-22100 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.160,MARK 16 |
13753-22100 |
from US $4.80 |
||
|
13753
|
13753
13753-22110 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.180,MARK 18 |
13753-22110 |
from US $7.16 |
||
|
13753
|
13753
13753-22120 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.200,MARK 20 |
13753-22120 |
from US $6.56 |
||
|
13753
|
13753
13753-22130 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.220,MARK 22 |
13753-22130 |
from US $6.61 |
||
|
13753
|
13753
13753-22140 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.240,MARK 24 |
13753-22140 |
from US $6.61 |
||
|
13753
|
13753
13753-22150 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.260,MARK 26 |
13753-22150 |
from US $7.39 |
||
|
13753
|
13753
13753-22160 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.280,MARK 28 |
13753-22160 |
from US $6.60 |
||
|
13753
|
13753
13753-22170 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.300,MARK 30 |
13753-22170 |
from US $6.57 |
||
|
13753
|
13753
13753-22180 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.320,MARK 32 |
13753-22180 |
from US $6.60 |
||
|
13753
|
13753
13753-22190 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.340,MARK 34 |
13753-22190 |
from US $7.39 |
||
|
13753
|
13753
13753-22200 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.360,MARK 36 |
13753-22200 |
from US $7.39 |
||
|
13753
|
13753
13753-22210 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.380,MARK 38 |
13753-22210 |
US $9.32 |
||
|
13753
|
13753
13753-22220 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.400,MARK 40 |
13753-22220 |
from US $7.39 |
||
|
13753
|
13753
13753-22230 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.420,MARK 42 |
13753-22230 |
US $4.80 |
||
|
13753
|
13753
13753-22240 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.440,MARK 44 |
13753-22240 |
from US $6.59 |
||
|
13753
|
13753
13753-22250 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.460,MARK 46 |
13753-22250 |
US $7.34 |
||
|
13753
|
13753
13753-22260 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.480,MARK 48 |
13753-22260 |
from US $4.80 |
||
|
13753
|
13753
13753-22270 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.500,MARK 50 |
13753-22270 |
from US $4.80 |
||
|
13753
|
13753
13753-22280 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.520,MARK 52 |
13753-22280 |
from US $6.81 |
||
|
13753
|
13753
13753-22290 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.540,MARK 54 |
13753-22290 |
from US $4.80 |
||
|
13753
|
13753
13753-22300 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.560,MARK 56 |
13753-22300 |
US $4.80 |
||
|
13753
|
13753
13753-22310 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.580,MARK 58 |
13753-22310 |
from US $4.80 |
||
|
13753
|
13753
13753-22320 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.600,MARK 60 |
13753-22320 |
from US $4.80 |
||
|
13753
|
13753
13753-22330 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.620,MARK 62 |
13753-22330 |
US $9.32 |
||
|
13753
|
13753
13753-22340 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.640,MARK 64 |
13753-22340 |
US $4.80 |
||
|
13753
|
13753
13753-22350 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.660,MARK 66 |
13753-22350 |
US $6.81 |
||
|
13753
|
13753
13753-22360 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.680,MARK 68 |
13753-22360 |
US $4.80 |
||
|
13753
|
13753
13753-22370 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.700,MARK 70 |
13753-22370 |
from US $4.80 |
||
|
13753
|
13753
13753-22380 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.720,MARK 72 |
13753-22380 |
US $4.80 |
||
|
13753
|
13753
13753-22390 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.740,MARK 74 |
13753-22390 |
US $4.80 |
||
|
13753
|
13753
13753-22400 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.760,MARK 76 |
13753-22400 |
US $4.80 |
||
|
13753
|
13753
13753-22410 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.780,MARK 78 |
13753-22410 |
from US $4.80 |
||
|
13753
|
13753
13753-22420 Shim, Valve Adjusting[08.2002 - 05.2005] 2UZFE..UZJ100 T=2.800,MARK 80 |
13753-22420 |
from US $4.80 |
||
|
9010508178
|
9010508178
90105-08178 BOLT WASHER BASED |
90105-08178 |
from US $1.06 |
||
|
9010510248
|
9010510248
90105-10248 BOLT WASHER BASED |
90105-10248 |
from US $1.54 |
||
|
9010512149
|
9010512149
90105-12149 Bolt(For Camshaft Timing Gear) |
90105-12149 |
from US $2.13 |
||
|
9020110101
|
9020110101
90201-10101 WASHER PLATE |
90201-10101 |
from US $2.96 |
||
