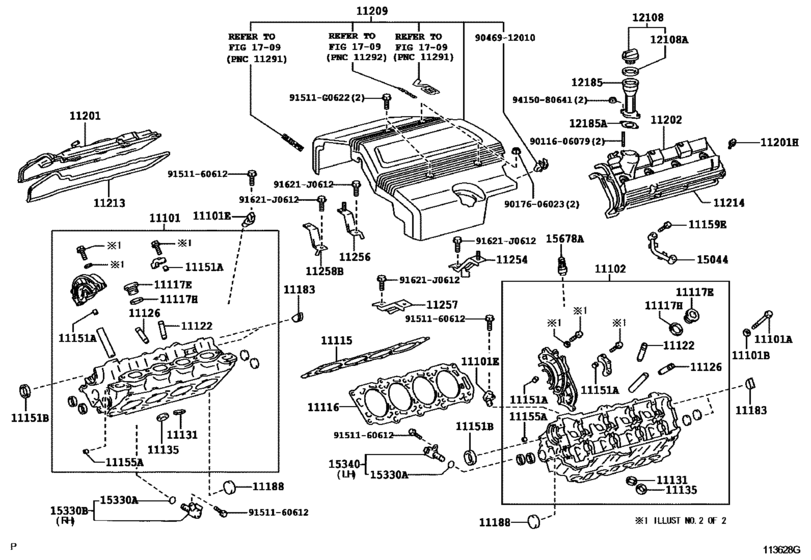

Cylinder Head ([05.2005 - ] (0505- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-59167 Head Sub-Assy, Cylinder[08.2002 - 09.2004] 2UZFE..UZJ100 |
11101-59167 |
US $2,184 |
||
| replacements | |||||
|
11101
|
11101
11101-59235 Head Sub-Assy, Cylinder[08.2002 - 09.2004] 2UZFE..UZJ100 |
11101-59235 |
US $2,416.96 |
||
|
11101
|
11101
13715-50070 Valve, Exhaust[08.2002 - 09.2004] 2UZFE..UZJ100 |
13715-50070 |
from US $19.21 |
||
|
11101
|
11101
11101-59195 Head Sub-Assy, Cylinder[05.2005 -] 2UZFE..UZJ100 |
11101-59195 |
US $2,669.35 |
||
|
11101
|
11101
11101-59235 Head Sub-Assy, Cylinder[09.2004 - 05.2005] 2UZFE..UZJ100 |
11101-59235 |
US $2,416.96 |
||
|
11101A
|
11101A
90910-02132
Bolt(For Cylinder Head Set)
[08.2002 - 05.2005] 2UZFE..UZJ100 |
90910-02132 |
— | ||
| replacement | |||||
|
11101A
|
11101A
90910-02181 Bolt(For Cylinder Head Set)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90910-02181 |
from US $6.37 |
||
|
11101B
|
11101B
90201-10133 Washer, Plate(For Cylinder Head Set)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90201-10133 |
from US $1.20 |
||
|
11101E
|
11101E
90919-05036 Sensor, Cam Position[05.2005 -] 2UZFE..UZJ100 |
90919-05036 |
from US $60.88 |
||
|
11102
|
11102
11102-59027 Head, Cylinder, Lh[08.2002 - 05.2004] 2UZFE..UZJ100 |
11102-59027 |
US $2,184 |
||
| replacements | |||||
|
11102
|
11102
11102-59095 Head, Cylinder, Lh[08.2002 - 05.2004] 2UZFE..UZJ100 |
11102-59095 |
US $2,416.96 |
||
|
11102
|
11102
11452-50142
Guide, Oil Level Gage
[08.2002 - 05.2004] 2UZFE..UZJ100 |
11452-50142 |
— | ||
|
11102
|
11102
11452-50121 Guide, Oil Level Gage[08.2002 - 05.2004] 2UZFE..UZJ100 |
11452-50121 |
US $38.44 |
||
|
11102
|
11102
13715-50070 Valve, Exhaust[08.2002 - 05.2004] 2UZFE..UZJ100 |
13715-50070 |
from US $19.21 |
||
|
11102
|
11102
11102-59055 Head, Cylinder, Lh[05.2005 -] 2UZFE..UZJ100 |
11102-59055 |
from US $2,384.93 |
||
|
11102
|
11102
11102-59095 Head, Cylinder, Lh[09.2004 - 05.2005] 2UZFE..UZJ100 |
11102-59095 |
US $2,416.96 |
||
|
11102
|
11102
11102-59105 Head, Cylinder, Lh[05.2004 - 09.2004] 2UZFE..UZJ100 |
11102-59105 |
US $2,416.96 |
||
| replacements | |||||
|
11102
|
11102
11102-59095 Head, Cylinder, Lh[05.2004 - 09.2004] 2UZFE..UZJ100 |
11102-59095 |
US $2,416.96 |
||
|
11102
|
11102
13715-50070 Valve, Exhaust[05.2004 - 09.2004] 2UZFE..UZJ100 |
13715-50070 |
from US $19.21 |
||
|
11115
|
11115
11115-50050
Gasket, Cylinder Head
[08.2002 - 07.2004] 2UZFE..UZJ100 |
11115-50050 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-50080 Gasket, Cylinder Head[08.2002 - 07.2004] 2UZFE..UZJ100 |
11115-50080 |
from US $81.13 |
||
|
11115
|
11115
11115-50080 Gasket, Cylinder Head[07.2004 - 05.2005] 2UZFE..UZJ100 |
11115-50080 |
from US $81.13 |
||
|
11116
|
11116
11116-50040
Gasket, Cylinder Head, No.2
[08.2002 - 07.2004] 2UZFE..UZJ100 |
11116-50040 |
— | ||
| replacement | |||||
|
11116
|
11116
11116-50070 Gasket, Cylinder Head, No.2[08.2002 - 07.2004] 2UZFE..UZJ100 |
11116-50070 |
from US $79.69 |
||
|
11116
|
11116
11116-50070 Gasket, Cylinder Head, No.2[07.2004 - 05.2005] 2UZFE..UZJ100 |
11116-50070 |
from US $79.69 |
||
|
11117E
|
11117E
90341-27006 Plug, W/head Straight Screw, No.1[08.2002 - 05.2005] 2UZFE..UZJ100 |
90341-27006 |
from US $5.73 |
||
|
11117H
|
11117H
90430-27005 Gasket(For Cylinder Head Screw Plug)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90430-27005 |
from US $1.25 |
||
|
11122
|
11122
11122-20020 Bush, Intake Valve Guide[08.2002 - 05.2005] 2UZFE..UZJ100 STD |
11122-20020 |
US $6.90 |
||
| replacement | |||||
|
11122
|
11122
11122-22040 Bush, Intake Valve GuideINTAKE VALVE GUIDE [08.2002 - 05.2005] 2UZFE..UZJ100 STD |
11122-22040 |
from US $7.56 |
||
|
11122
|
11122
11123-20020 Bush, Intake Valve Guide[08.2002 - 05.2005] 2UZFE..UZJ100 O/S 0.05 |
11123-20020 |
US $6.41 |
||
|
11126
|
11126
11126-20020 Bush, Exhaust Valve Guide[08.2002 - 05.2005] 2UZFE..UZJ100 STD |
11126-20020 |
from US $6.05 |
||
|
11126
|
11126
11127-20020 Bush, Exhaust Valve Guide[08.2002 - 05.2005] 2UZFE..UZJ100 O/S 0.05 |
11127-20020 |
US $8.60 |
||
|
11131
|
11131
11131-50040 Seat, Intake Valve[08.2002 - 05.2005] 2UZFE..UZJ100 STD |
11131-50040 |
US $14.77 |
||
|
11131
|
11131
11132-50040 Seat, Intake Valve[08.2002 - 05.2005] 2UZFE..UZJ100 O/S 0.03 |
11132-50040 |
US $11.50 |
||
|
11135
|
11135
11135-50040 Seat, Exhaust Valve[08.2002 - 09.2004] 2UZFE..UZJ100 STD |
11135-50040 |
US $10.34 |
||
|
11135
|
11135
11135-50050 Seat, Exhaust Valve[09.2004 - 05.2005] 2UZFE..UZJ100 STD |
11135-50050 |
US $20.83 |
||
|
11135
|
11135
11136-50040 Seat, Exhaust Valve[08.2002 - 09.2004] 2UZFE..UZJ100 O/S 0.03 |
11136-50040 |
US $16.60 |
||
|
11135
|
11135
11136-50050 Seat, Exhaust Valve[09.2004 - 05.2005] 2UZFE..UZJ100 O/S 0.03 |
11136-50050 |
US $14.77 |
||
|
11151A
|
11151A
90253-10006 Pin, Ring(For Camshaft Bearing Cap Setting)[08.2002 - 05.2005] 2UZFE..UZJ100 L=7,OD=10 |
90253-10006 |
US $0.79 |
||
|
11151B
|
11151B
90311-38065 Seal, Oil(For Camshaft Setting)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90311-38065 |
from US $10.39 |
||
|
11151B
|
11151B
90311-71002 Seal, Oil(For Camshaft Setting)[05.2005 -] 2UZFE..UZJ100 |
90311-71002 |
from US $17.20 |
||
|
11155A
|
11155A
90253-09001 Pin, Ring W/head[08.2002 - 05.2005] 2UZFE..UZJ100 |
90253-09001 |
from US $1.05 |
||
|
11159E
|
11159E
90119-07012 Bolt(For Camshaft Oil Feed Pipe)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90119-07012 |
from US $0.87 |
||
|
11183
|
11183
11183-50020 Plug, Semicircular[08.2002 - 05.2005] 2UZFE..UZJ100 |
11183-50020 |
from US $6.35 |
||
|
11188
|
11188
11188-50010 Plug, Camshaft Housing[08.2002 - 05.2005] 2UZFE..UZJ100 |
11188-50010 |
from US $7.09 |
||
|
11201
|
11201
11201-50031 Cover Sub-Assy, Cylinder Head[08.2002 - 05.2005] 2UZFE..UZJ100 |
11201-50031 |
US $347.98 |
||
| replacement | |||||
|
11201
|
11201
11201-50041 Cover Sub-Assy, Cylinder Head[08.2002 - 05.2005] 2UZFE..UZJ100 |
11201-50041 |
from US $191.79 |
||
|
11201
|
11201
11201-50041 Cover Sub-Assy, Cylinder Head[01.2006 - 08.2007] 2UZFE..UZJ100 |
11201-50041 |
from US $191.79 |
||
|
11201H
|
11201H
90109-06163 Bolt(For Cylinder Head Cover)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90109-06163 |
from US $1.20 |
||
|
11202
|
11202
11202-50041 Cover Sub-Assy, Cylinder Head, Lh[08.2002 - 05.2005] 2UZFE..UZJ100 |
11202-50041 |
US $347.98 |
||
| replacement | |||||
|
11202
|
11202
11202-50080 Cover Sub-Assy, Cylinder Head, Lh[08.2002 - 05.2005] 2UZFE..UZJ100 |
11202-50080 |
from US $193.65 |
||
|
11202
|
11202
11202-50051 Cover Sub-Assy, Cylinder Head, Lh[01.2006 - 02.2007] 2UZFE..UZJ100 |
11202-50051 |
US $288.29 |
||
| replacement | |||||
|
11202
|
11202
11202-50080 Cover Sub-Assy, Cylinder Head, Lh[01.2006 - 02.2007] 2UZFE..UZJ100 |
11202-50080 |
from US $193.65 |
||
|
11202
|
11202
11202-50080 Cover Sub-Assy, Cylinder Head, Lh[02.2007 -] 2UZFE..UZJ100 MARK UZVL |
11202-50080 |
from US $193.65 |
||
|
11209
|
11209
11209-50081 Cover Sub-Assy, V-Bank[08.2002 - 05.2005] 2UZFE..UZJ100 |
11209-50081 |
US $454.27 |
||
|
11209
|
11209
11209-50210 Cover Sub-Assy, V-BankV-BANK [05.2005 -] 2UZFE..UZJ100 |
11209-50210 |
US $454.27 |
||
|
11213
|
11213
11213-50030
Gasket, Cylinder Head Cover
[08.2002 - 11.2003] 2UZFE..UZJ100 |
11213-50030 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-50031 Gasket, Cylinder Head Cover[08.2002 - 11.2003] 2UZFE..UZJ100 |
11213-50031 |
from US $14.59 |
||
|
11213
|
11213
11213-50031 Gasket, Cylinder Head Cover[11.2003 - 05.2005] 2UZFE..UZJ100 |
11213-50031 |
from US $14.59 |
||
|
11214
|
11214
11214-50010
Gasket, Cylinder Head Cover, No.2
[08.2002 - 11.2003] 2UZFE..UZJ100 |
11214-50010 |
— | ||
| replacement | |||||
|
11214
|
11214
11214-50011 Gasket, Cylinder Head Cover, No.2[08.2002 - 11.2003] 2UZFE..UZJ100 |
11214-50011 |
from US $14.86 |
||
|
11214
|
11214
11214-50011 Gasket, Cylinder Head Cover, No.2[11.2003 - 05.2005] 2UZFE..UZJ100 |
11214-50011 |
from US $14.86 |
||
|
11254
|
11254
11254-50030 Bracket, V-Bank Cover, No.1[08.2002 - 05.2005] 2UZFE..UZJ100 |
11254-50030 |
US $12.08 |
||
|
11254
|
11254
11254-50060
Bracket, V-Bank Cover, No.1
[05.2005 -] 2UZFE..UZJ100 |
11254-50060 |
— | ||
|
11256
|
11256
11256-50020 Bracket, V-Bank Cover, No.2[08.2002 - 05.2005] 2UZFE..UZJ100 |
11256-50020 |
US $13.69 |
||
|
11256
|
11256
11256-50050
Bracket, V-Bank Cover, No.2
[05.2005 -] 2UZFE..UZJ100 |
11256-50050 |
— | ||
|
11257
|
11257
11257-50020 Bracket, V-Bank Cover, No.3[08.2002 - 05.2005] 2UZFE..UZJ100 |
11257-50020 |
US $12.08 |
||
|
11257
|
11257
11257-50070 Bracket, V-Bank Cover, No.3V-BANK COVER, NO.3 [05.2005 -] 2UZFE..UZJ100 |
11257-50070 |
US $7.86 |
||
|
11258B
|
11258B
11258-50020 Bracket, V-Bank Cover, No.4[08.2002 - 05.2005] 2UZFE..UZJ100 |
11258-50020 |
US $14.56 |
||
|
11258B
|
11258B
11258-50030
Bracket, V-Bank Cover, No.4
[05.2005 -] 2UZFE..UZJ100 |
11258-50030 |
— | ||
|
12108
|
12108
12180-50031 Cap Sub-Assy, Oil FillerOIL FILLER [08.2002 - 05.2005] 2UZFE..UZJ100 |
12180-50031 |
from US $17.14 |
||
|
12108A
|
12108A
12195-50010 Gasket(For Oil Filler Cap)[08.2002 - 05.2005] 2UZFE..UZJ100 |
12195-50010 |
from US $6.25 |
||
|
12185
|
12185
12185-50020 Housing, Oil Filler Cap[08.2002 - 05.2005] 2UZFE..UZJ100 |
12185-50020 |
from US $26.19 |
||
|
12185A
|
12185A
12196-50010 Gasket, Oil Filler Cap Housing[08.2002 - 05.2005] 2UZFE..UZJ100 |
12196-50010 |
from US $4.96 |
||
|
15044
|
15044
15044-50020 Pipe Sub-Assy, Camshaft Oil Feed[08.2002 - 05.2005] 2UZFE..UZJ100 |
15044-50020 |
US $10.77 |
||
|
15330A
|
15330A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[05.2005 -] 2UZFE..UZJ100 |
90099-14137 |
from US $2.11 |
||
|
15330B
|
15330B
15330-50011 Valve Assy, Camshaft Timing Oil Control[05.2005 -] 2UZFE..UZJ100 |
15330-50011 |
from US $90.50 |
||
|
15340
|
15340
15340-50011 Valve Assy, Camshaft Timing Oil Control[05.2005 -] 2UZFE..UZJ100 |
15340-50011 |
from US $89.59 |
||
|
15678A
|
15678A
15678-46020 Filter, Oil Control Valve[05.2005 -] 2UZFE..UZJ100 |
15678-46020 |
from US $3.38 |
||
|
91511G0622
|
91511G0622
91511-G0622 BOLT, FLANGE |
91511-G0622 |
from US $0.91 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9011606079
|
9011606079
90116-06079 BOLT STUD |
90116-06079 |
US $2.33 |
||
|
9017606023
|
9017606023
90176-06023 NUT CAP |
90176-06023 |
from US $0.76 |
||
|
9046912010
|
9046912010
90469-12010 Clamp Or Clip(For Radiator Reserve Tank Hose No.3) |
90469-12010 |
US $0.87 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.97 |
||
|
9415080641
|
9415080641
94150-80641 New Genuine Part |
94150-80641 |
US $0.87 |
||
| replacement | |||||
|
9415080641
|
9415080641
94151-80641 NUT FLANGE |
94151-80641 |
from US $0.95 |
||
