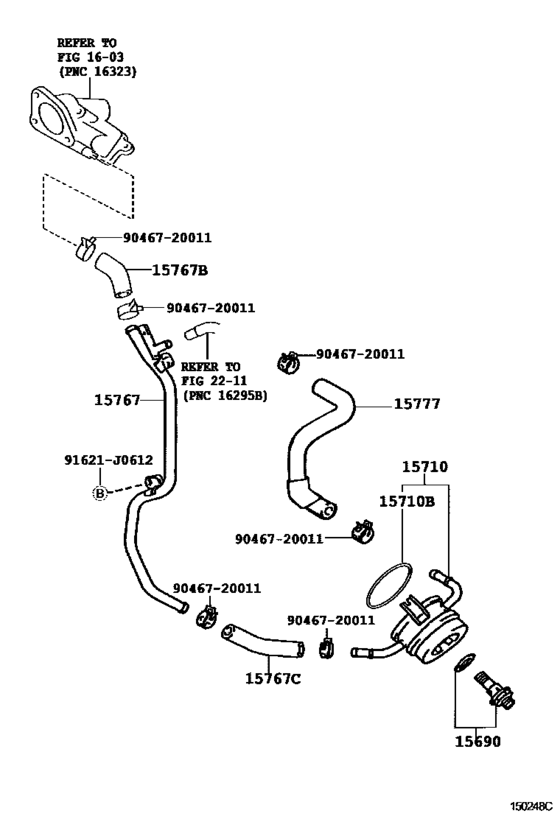

Engine Oil Cooler ([01.1998 - ] (9801- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15690
|
15690
15695-50010 Valve Assy, Oil Cooler Relief[08.2002 - 05.2005] 2UZFE..UZJ100 |
15695-50010 |
from US $13 |
||
|
15710
|
15710
15710-50020 Cooler Assy, Oil[08.2002 - 05.2005] 2UZFE..UZJ100 |
15710-50020 |
from US $484.31 |
||
|
15710B
|
15710B
90301-67004 Ring, O(For Oil Thermostat Housing)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90301-67004 |
from US $3.08 |
||
|
15767
|
15767
15767-50100 Pipe, Oil Cooler[08.2002 - 05.2005] 2UZFE..UZJ100 |
15767-50100 |
US $59.70 |
||
| replacement | |||||
|
15767
|
15767
15767-50101 Pipe, Oil Cooler[08.2002 - 05.2005] 2UZFE..UZJ100 |
15767-50101 |
US $59.70 |
||
|
15767
|
15767
15767-50101 Pipe, Oil Cooler[05.2005 -] 2UZFE..UZJ100 |
15767-50101 |
US $59.70 |
||
|
15767B
|
15767B
16281-50030 Hose, Water By-Pass, No.4[08.2002 - 05.2005] 2UZFE..UZJ100 |
16281-50030 |
from US $8.25 |
||
|
15767C
|
15767C
16282-50040 Hose, Water By-Pass, No.5[08.2002 - 05.2005] 2UZFE..UZJ100 |
16282-50040 |
from US $6.33 |
||
|
15777
|
15777
15777-50030 Hose, Oil Cooler[08.2002 - 05.2005] 2UZFE..UZJ100 |
15777-50030 |
from US $19.30 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9046720011
|
9046720011
90467-20011 Clamp Or Clip(For Water By-Pass Hose No.2) |
90467-20011 |
from US $2.30 |
||
