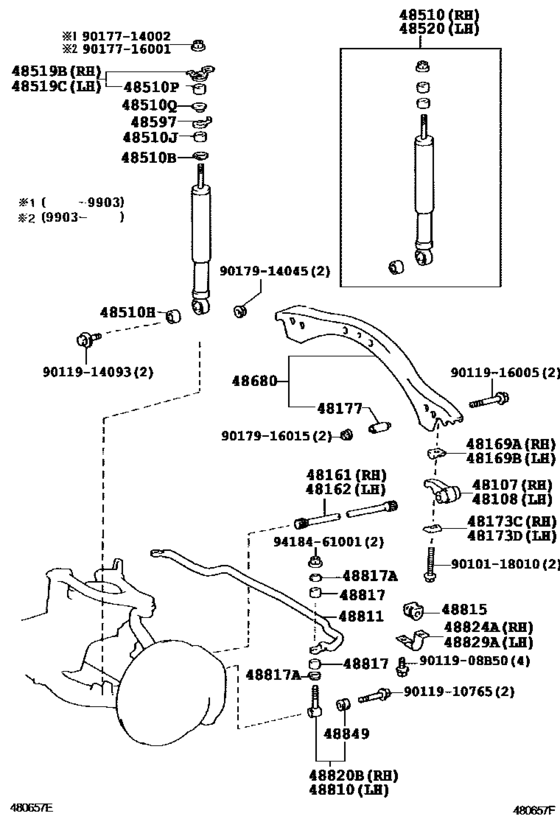

Front Spring & Shock Absorber ([01.1998 - ] (9801- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48107
|
48107
48107-60010 Arm Sub-Assy, Anchor, Rh[08.2002 - 05.2005] UZJ100 |
48107-60010 |
from US $103.46 |
||
|
48108
|
48108
48108-60010 Arm Sub-Assy, Anchor, Lh[08.2002 - 05.2005] UZJ100 |
48108-60010 |
from US $127.55 |
||
|
48161
|
48161
48161-60040 Spring, Torsion Bar, Rh[08.2002 - 05.2005] UZJ100 |
48161-60040 |
US $223.64 |
||
|
48162
|
48162
48162-60040 Spring, Torsion Bar, Lh[08.2002 - 05.2005] UZJ100 |
48162-60040 |
US $230.05 |
||
|
48169A
|
48169A
48169-60010 Swivel, Anchor Arm, Rh[08.2002 - 05.2005] UZJ100 |
48169-60010 |
from US $47.31 |
||
|
48169B
|
48169B
48169-60010 Swivel, Anchor Arm, Rh[08.2002 - 05.2005] UZJ100 |
48169-60010 |
from US $47.31 |
||
|
48173C
|
48173C
48173-60010 Seat, Anchor Arm Adjuster[08.2002 - 05.2005] UZJ100 |
48173-60010 |
from US $19.46 |
||
|
48173D
|
48173D
48173-60010 Seat, Anchor Arm Adjuster[08.2002 - 05.2005] UZJ100 |
48173-60010 |
from US $19.46 |
||
|
48177
|
48177
48177-60010 Bush, Anchor Arm Bracket[08.2002 - 05.2005] UZJ100 |
48177-60010 |
from US $25.33 |
||
|
48510
|
48510
48510-69127 Absorber Assy, Shock, Front(for Active Height Control) [08.2002 - 05.2005] UZJ100 MARK 48510-60081 |
48510-69127 |
from US $281.87 |
||
|
48510B
|
48510B
90948-02183 Retainer, Cushion, No.1(For Front Shock Absorber)[08.2002 - 05.2005] UZJ100 |
90948-02183 |
from US $11.12 |
||
|
48510H
|
48510H
90903-89016 Bush(For Front Shock Absorber)[08.2002 - 05.2005] UZJ100 |
90903-89016 |
from US $12.08 |
||
|
48510J
|
48510J
90948-01075 Cushion, Front Shock Absorber, No.1[08.2002 - 05.2005] UZJ100 |
90948-01075 |
from US $14.12 |
||
|
48510P
|
48510P
90948-01076 Cushion, Front Shock Absorber, No.2[08.2002 - 05.2005] UZJ100 |
90948-01076 |
from US $9.01 |
||
|
48510Q
|
48510Q
90948-02182 Retainer, Cushion, No.3(For Front Shock Absorber)[08.2002 - 05.2005] UZJ100 |
90948-02182 |
from US $10.20 |
||
|
48519B
|
48519B
48519-60021 Bracket, Actuator Support, Front Rh[08.2002 - 05.2005] UZJ100 |
48519-60021 |
from US $14.55 |
||
|
48519C
|
48519C
48519-60031 Bracket, Actuator Support, Front Lh[08.2002 - 05.2005] UZJ100 |
48519-60031 |
from US $16.59 |
||
|
48520
|
48520
48510-69127 Absorber Assy, Shock, Front(for Active Height Control) [08.2002 - 05.2005] UZJ100 MARK 48510-60081 |
48510-69127 |
from US $281.87 |
||
|
48597
|
48597
48597-60021 Retainer, Shock Absorber Cushion[08.2002 - 05.2005] UZJ100 |
48597-60021 |
from US $6.82 |
||
|
48680
|
48680
48680-60010 Support Assy, Front Suspension[08.2002 - 05.2005] UZJ100 |
48680-60010 |
US $283.92 |
||
|
48810
|
48810
48820-60032 Link Assy, Front Stabilizer[08.2002 - 05.2005] UZJ100 |
48820-60032 |
from US $16.80 |
||
|
48811
|
48811
48811-60180 Bar, Stabilizer, Front[08.2002 - 05.2005] UZJ100 |
48811-60180 |
from US $200.93 |
||
|
48815
|
48815
48815-60111 Bush, Front Stabilizer Bar, No.1[08.2002 - 05.2005] UZJ100 |
48815-60111 |
from US $9.54 |
||
|
48817
|
48817
90948-01003 Rubber Cushion[08.2002 - 05.2005] UZJ100 |
90948-01003 |
from US $1.50 |
||
|
48817A
|
48817A
90948-02180 Retainer, Cushion, No.2(For Front Shock Absorber)[08.2002 - 05.2005] UZJ100 |
90948-02180 |
from US $4.30 |
||
|
48820B
|
48820B
48820-60032 Link Assy, Front Stabilizer[08.2002 - 05.2005] UZJ100 |
48820-60032 |
from US $16.80 |
||
|
48824A
|
48824A
48824-60100 Bracket, Front Stabilizer, No.1 Rh[08.2002 - 05.2005] UZJ100 |
48824-60100 |
from US $15.35 |
||
|
48829A
|
48829A
48824-60110 Bracket, Front Stabilizer, No.1 Lh[08.2002 - 05.2005] UZJ100 |
48824-60110 |
from US $16.59 |
||
|
48849
|
48849
48849-60010 Bush(For Stabilizer Bar)[08.2002 - 05.2005] UZJ100 |
48849-60010 |
from US $8.47 |
||
|
9011908B50
|
9011908B50
90119-08B50 BOLT WWASHER |
90119-08B50 |
from US $0.82 |
||
|
9010118010
|
9010118010
90101-18010 BOLT HEXAGON |
90101-18010 |
from US $8.34 |
||
|
9011910765
|
9011910765
90119-10765 BOLT WWASHER |
90119-10765 |
from US $1.08 |
||
|
9011914093
|
9011914093
90119-14093 BOLT WWASHER |
90119-14093 |
from US $3.23 |
||
|
9011916005
|
9011916005
90119-16005 BOLT WWASHER |
90119-16005 |
from US $5.68 |
||
|
9017714002
|
9017714002
90177-14002 New Genuine Part |
90177-14002 |
US $4.12 |
||
|
9017716001
|
9017716001
90177-16001 NUT LOCK |
90177-16001 |
US $2.87 |
||
|
9017914045
|
9017914045
90179-14045 Nut(For Front Shock Absorber Bracket Lower) |
90179-14045 |
from US $1.37 |
||
|
9017916015
|
9017916015
90179-16015 NUT |
90179-16015 |
from US $1.48 |
||
|
9418461001
|
9418461001
94184-61001 Nut(For Front Stabilizer Bar) |
94184-61001 |
from US $0.74 |
