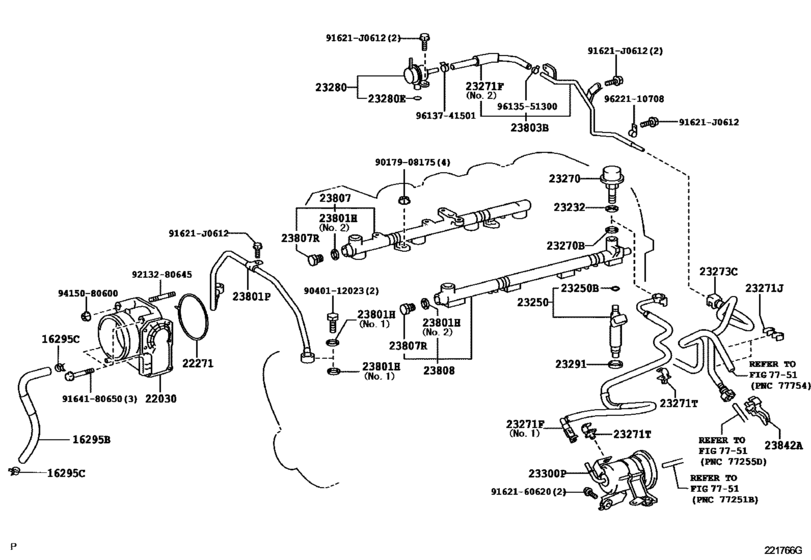

Fuel Injection System ([05.2005 - ] (0505- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16295B
|
16295B
16295-50070 Hose, Water By-Pass, No.7[08.2002 - 05.2005] 2UZFE..UZJ100 |
16295-50070 |
from US $5.36 |
||
|
16295B
|
16295B
16295-50110 Hose, Water By-Pass, No.7[05.2005 - 08.2007] 2UZFE..UZJ100 |
16295-50110 |
from US $6.33 |
||
|
16295C
|
16295C
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.2002 - 01.2005] 2UZFE..UZJ100 |
90467-13054 |
from US $0.89 |
||
| replacement | |||||
|
16295C
|
16295C
96135-51300 Clamp, Hose[08.2002 - 01.2005] 2UZFE..UZJ100 |
96135-51300 |
from US $1.86 |
||
|
16295C
|
16295C
96135-51300 Clamp, Hose[05.2005 - 08.2007] 2UZFE..UZJ100 |
96135-51300 |
from US $1.86 |
||
|
16295C
|
16295C
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[01.2005 - 05.2005] 2UZFE..UZJ100 |
96137-41501 |
from US $2.09 |
||
|
22030
|
22030
22030-50170 Body Assy, Throttle W/motor[08.2002 - 05.2005] 2UZFE..UZJ100 |
22030-50170 |
US $1,126.94 |
||
|
22030
|
22030
22030-50200 Body Assy, Throttle W/motor[05.2005 -] 2UZFE..UZJ100 |
22030-50200 |
from US $838.64 |
||
|
22271
|
22271
22271-50042 Gasket, Throttle Body[08.2002 - 05.2005] 2UZFE..UZJ100 |
22271-50042 |
from US $16.83 |
||
|
22271
|
22271
22271-50050 Gasket, Throttle Body[05.2005 -] 2UZFE..UZJ100 |
22271-50050 |
from US $2.32 |
||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[08.2002 - 05.2005] 2UZFE..UZJ100 |
23232-41081 |
from US $1.40 |
||
|
23250
|
23250
23209-50040 Injector Assy, Fuel[08.2002 - 05.2005] 2UZFE..UZJ100 |
23209-50040 |
from US $204.73 |
||
|
23250
|
23250
23209-50080 Injector Assy, Fuel[05.2005 -] 2UZFE..UZJ100 |
23209-50080 |
from US $172.80 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90301-07024 |
from US $2.72 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[07.2006 -] 2UZFE..UZJ100 |
90301-07037 |
from US $2.07 |
||
|
23270
|
23270
23270-50010
Damper Assy, Fuel Pressure Pulsation
[08.2002 - 05.2005] 2UZFE..UZJ100 |
23270-50010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-50012 Damper Assy, Fuel Pressure Pulsation[08.2002 - 05.2005] 2UZFE..UZJ100 |
23270-50012 |
from US $70.79 |
||
|
23270B
|
23270B
90430-12026 Gasket[08.2002 - 05.2005] 2UZFE..UZJ100 |
90430-12026 |
from US $0.80 |
||
|
23271F
|
23271F
23271-50150 Hose, Fuel[08.2002 - 05.2005] 2UZFE..UZJ100 NO.1 |
23271-50150 |
from US $51.24 |
||
|
23271F
|
23271F
23271-50180 Hose, FuelFUEL [05.2005 -] 2UZFE..UZJ100 NO.1 |
23271-50180 |
US $41.06 |
||
|
23271F
|
23271F
95337-08009 Hose, Fuel[08.2002 - 05.2005] 2UZFE..UZJ100 NO.2 |
95337-08009 |
US $16.60 |
||
|
23271J
|
23271J
90464-00817 Clamp[05.2005 -] 2UZFE..UZJ100 |
90464-00817 |
US $1.46 |
||
|
23271T
|
23271T
90469-12012 Clamp Or Clip(For Fuel Hose)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90469-12012 |
from US $2.96 |
||
|
23273C
|
23273C
23273-50020 Hose, Fuel, No.2[08.2002 - 05.2005] 2UZFE..UZJ100 |
23273-50020 |
US $19.04 |
||
|
23273C
|
23273C
23273-50050
Hose, Fuel, No.2
[05.2005 -] 2UZFE..UZJ100 |
23273-50050 |
— | ||
|
23280
|
23280
23280-50050 Regulator Assy, Fuel Pressure[08.2002 - 05.2005] 2UZFE..UZJ100 |
23280-50050 |
from US $74.65 |
||
|
23280E
|
23280E
90301-07037 Ring, O(For Fuel Injector)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90301-07037 |
from US $2.07 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.2002 - 05.2005] 2UZFE..UZJ100 |
23291-41010 |
from US $3.02 |
||
|
23300P
|
23300P
23300-50090 Filter, Fuel(For Efi)[08.2002 - 05.2005] 2UZFE..UZJ100 |
23300-50090 |
from US $66.54 |
||
|
23801H
|
23801H
90430-12026 Gasket[08.2002 - 05.2005] 2UZFE..UZJ100 NO.1 |
90430-12026 |
from US $0.80 |
||
|
23801H
|
23801H
90430-14008 Gasket(For Water Hole)[08.2002 - 05.2005] 2UZFE..UZJ100 NO.2 |
90430-14008 |
from US $0.95 |
||
|
23801P
|
23801P
23801-50021 Pipe Sub-Assy, Fuel, No.1[08.2002 - 05.2005] 2UZFE..UZJ100 |
23801-50021 |
US $49.97 |
||
|
23801P
|
23801P
23801-50070 Pipe Sub-Assy, Fuel, No.1FUEL, NO.1 [05.2005 - 06.2006] 2UZFE..UZJ100 |
23801-50070 |
US $58.82 |
||
| replacement | |||||
|
23801P
|
23801P
23801-50071 Pipe Sub-Assy, Fuel, No.1[05.2005 - 06.2006] 2UZFE..UZJ100 |
23801-50071 |
US $48.92 |
||
|
23801P
|
23801P
23801-50071 Pipe Sub-Assy, Fuel, No.1[06.2006 -] 2UZFE..UZJ100 |
23801-50071 |
US $48.92 |
||
|
23803B
|
23803B
23803-50120 Pipe Sub-Assy, Fuel, No.3[08.2002 - 05.2005] 2UZFE..UZJ100 |
23803-50120 |
US $64.47 |
||
|
23803B
|
23803B
23803-50130 Pipe Sub-Assy, Fuel, No.3[05.2005 -] 2UZFE..UZJ100 |
23803-50130 |
US $48.92 |
||
| replacement | |||||
|
23803B
|
23803B
23803-50131 Pipe Sub-Assy, Fuel, No.3[05.2005 -] 2UZFE..UZJ100 |
23803-50131 |
US $48.92 |
||
|
23807
|
23807
23807-50051 Pipe Sub-Assy, Fuel Delivery[08.2002 - 06.2003] 2UZFE..UZJ100 |
23807-50051 |
US $168.90 |
||
| replacement | |||||
|
23807
|
23807
23807-50052 Pipe Sub-Assy, Fuel Delivery[08.2002 - 06.2003] 2UZFE..UZJ100 |
23807-50052 |
US $168.90 |
||
|
23807
|
23807
23807-50052 Pipe Sub-Assy, Fuel Delivery[06.2003 - 05.2005] 2UZFE..UZJ100 |
23807-50052 |
US $168.90 |
||
|
23807
|
23807
23807-50080
Pipe Sub-Assy, Fuel Delivery
[05.2005 -] 2UZFE..UZJ100 |
23807-50080 |
— | ||
|
23807R
|
23807R
90341-14032 Plug, W/head Taper Screw, No.1[08.2002 - 05.2005] 2UZFE..UZJ100 |
90341-14032 |
US $2.61 |
||
|
23808
|
23808
23808-50041
Pipe Sub-Assy, Fuel Delivery, No.2
[08.2002 - 06.2003] 2UZFE..UZJ100 |
23808-50041 |
— | ||
| replacement | |||||
|
23808
|
23808
23808-50042
Pipe Sub-Assy, Fuel Delivery, No.2
[08.2002 - 06.2003] 2UZFE..UZJ100 |
23808-50042 |
— | ||
|
23808
|
23808
23808-50042
Pipe Sub-Assy, Fuel Delivery, No.2
[06.2003 - 05.2005] 2UZFE..UZJ100 |
23808-50042 |
— | ||
|
23808
|
23808
23808-50070
Pipe Sub-Assy, Fuel Delivery, No.2
[05.2005 -] 2UZFE..UZJ100 |
23808-50070 |
— | ||
|
23842A
|
23842A
23842-50010 Clamp, Fuel Pipe, No.2(For Efi)FUEL PIPE, NO.2(FOR EFI) [05.2005 -] 2UZFE..UZJ100 |
23842-50010 |
US $6.87 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9017908175
|
9017908175
90179-08175 New Genuine Part |
90179-08175 |
US $1.61 |
||
|
9040112023
|
9040112023
90401-12023 Bolt, Union(For Fuel Pipe) |
90401-12023 |
US $6.09 |
||
|
9162160620
|
9162160620
91621-60620 Bolt, W/washer(For Repair Actuator Set) |
91621-60620 |
US $0.69 |
||
|
9164180650
|
9164180650
91641-80650 New Genuine Part |
91641-80650 |
US $1.46 |
||
|
9213280645
|
9213280645
92132-80645 New Genuine Part |
92132-80645 |
US $1.60 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
||
|
9613551300
|
9613551300
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.86 |
||
|
9613741501
|
9613741501
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96137-41501 |
from US $2.09 |
||
|
9622110708
|
9622110708
96221-10708 New Genuine Part |
96221-10708 |
US $2.33 |
||
