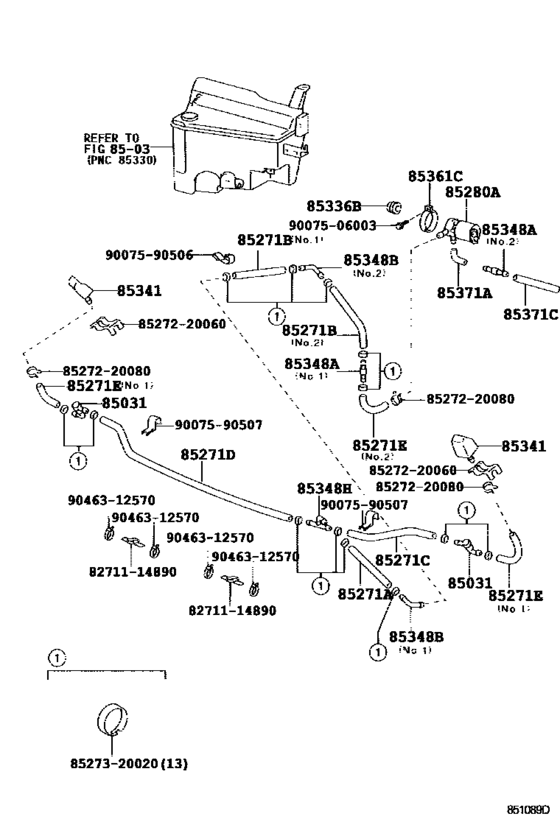

Headlamp Cleaner ([08.2002 - 05.2005] (0208-0505)) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031
|
85031
85299-33020 Valve, Headlamp Cleaner Washer Hose[08.2002 - 05.2005] UZJ100 |
85299-33020 |
from US $16.31 |
||
|
85271A
|
85271A
85275-90K00 Hose, Headlamp Cleaner, No.2[05.2005 -] UZJ100 *H,L=500 |
85275-90K00 |
US $9.17 |
||
|
85271A
|
85271A
85375-22061 Hose, Headlamp Cleaner, No.1[08.2002 - 05.2005] UZJ100 *H,L=320 |
85375-22061 |
US $27.37 |
||
|
85271B
|
85271B
85275-89146 Hose, Headlamp Cleaner, No.2[05.2005 -] UZJ100 L=90 |
85275-89146 |
US $3.93 |
||
| replacement | |||||
|
85271B
|
85271B
85376-12090 Hose, Headlamp Cleaner, No.3[05.2005 -] UZJ100 L=90 |
85376-12090 |
US $5.10 |
||
|
85271B
|
85271B
85375-14150 Hose, Headlamp Cleaner, No.3[08.2002 - 05.2005] UZJ100 L=140X31,NO.2 |
85375-14150 |
US $4.37 |
||
| replacement | |||||
|
85271B
|
85271B
85276-60180 Protector, Headlamp Cleaner Hose, No.3[08.2002 - 05.2005] UZJ100 L=140X31,NO.2 |
85276-60180 |
US $4.22 |
||
|
85271B
|
85271B
85376-14301 Hose, Headlamp Cleaner, No.3[08.2002 - 05.2005] UZJ100 L=75,NO.1 |
85376-14301 |
US $5.10 |
||
|
85271B
|
85271B
90445-14072 Hose, Headlamp Cleaner, No.1[07.2005 -] UZJ100 L=850 |
90445-14072 |
from US $18.43 |
||
|
85271C
|
85271C
90075-15028 Hose, Headlamp Cleaner, No.4[05.2005 -] UZJ100 L=68X68 |
90075-15028 |
from US $2.04 |
||
|
85271C
|
85271C
90445-14035 Hose, Headlamp Cleaner, No.4[08.2002 - 05.2005] UZJ100 L=280 |
90445-14035 |
US $5.82 |
||
| replacement | |||||
|
85271C
|
85271C
90445-14056 Hose, Headlamp Cleaner, No.4[08.2002 - 05.2005] UZJ100 L=280 |
90445-14056 |
US $7.28 |
||
|
85271D
|
85271D
85375-22061 Hose, Headlamp Cleaner, No.1[07.2005 -] UZJ100 *H,L=392 |
85375-22061 |
US $27.37 |
||
|
85271D
|
85271D
90445-14035 Hose, Headlamp Cleaner, No.4[05.2005 - 06.2005] UZJ100 L=280 |
90445-14035 |
US $5.82 |
||
| replacement | |||||
|
85271D
|
85271D
90445-14056 Hose, Headlamp Cleaner, No.4[05.2005 - 06.2005] UZJ100 L=280 |
90445-14056 |
US $7.28 |
||
|
85271D
|
85271D
90445-14042 Hose, Headlamp Cleaner, No.5[08.2002 - 05.2005] UZJ100 L=850 |
90445-14042 |
US $16.89 |
||
|
85271E
|
85271E
85271-20020
Hose, Headlamp Cleaner, No.1
[08.2002 - 05.2005] UZJ100 L=500,NO.2 |
85271-20020 |
— | ||
|
85271E
|
85271E
85375-32011 Hose, Headlamp Cleaner, No.6[08.2002 - 05.2005] UZJ100 L=35,NO.1 |
85375-32011 |
US $7.16 |
||
|
85271E
|
85271E
90445-14042 Hose, Headlamp Cleaner, No.5[05.2005 - 06.2005] UZJ100 L=850 |
90445-14042 |
US $16.89 |
||
|
85280A
|
85280A
85280-30020 Motor And Pump Assy, Headlamp Cleaner[08.2002 - 05.2005] UZJ100 |
85280-30020 |
from US $161.84 |
||
|
85336B
|
85336B
85336-10010 Bush, Windshield Washer Jar[08.2002 - 05.2005] UZJ100 |
85336-10010 |
from US $3.61 |
||
|
85341
|
85341
85044-60090-A2 Nozzle, Headlamp Cleaner Washer[08.2002 - 05.2005] UZJ100 WHITE PEARL CS.,070 |
85044-60090-A2 |
from US $11.21 |
||
|
85341
|
85341
85044-60090-A3 Nozzle, Headlamp Cleaner Washer[05.2005 -] UZJ100 WHITE PEARL CS.,062 |
85044-60090-A3 |
US $66.68 |
||
|
85341
|
85341
85044-60090-B0
Nozzle, Headlamp Cleaner Washer
[08.2002 - 05.2005] UZJ100 GRAY ME.,6T2 ,8P6 |
85044-60090-B0 |
— | ||
|
85341
|
85341
85044-60090-B1 Nozzle, Headlamp Cleaner Washer[05.2005 -] UZJ100 SILVER ME.,1F7 |
85044-60090-B1 |
US $66.68 |
||
|
85341
|
85341
85044-60090-D0 Nozzle, Headlamp Cleaner Washer[08.2002 - 05.2005] UZJ100 DK. GRAY M.,1E9 ,202 |
85044-60090-D0 |
from US $44.35 |
||
|
85341
|
85341
85044-60090-E2 Nozzle, Headlamp Cleaner Washer[08.2002 - 05.2005] UZJ100 BEIGE PEARL CS.,4R2 |
85044-60090-E2 |
US $66.68 |
||
|
85341
|
85341
85044-60090-G0 Nozzle, Headlamp Cleaner Washer[05.2005 -] UZJ100 OLIVE M.M.,6T7 |
85044-60090-G0 |
US $66.68 |
||
|
85348A
|
85348A
85349-89122 Valve Sub-Assy, Washer[08.2002 - 05.2005] UZJ100 NO.2 |
85349-89122 |
from US $1.25 |
||
|
85348A
|
85348A
85379-89131 Joint, Headlamp Cleaner Hose, No.1[08.2002 - 05.2005] UZJ100 NO.1 |
85379-89131 |
from US $2.01 |
||
|
85348B
|
85348B
85279-14160 Joint, Headlamp Cleaner Hose, No.2[08.2002 - 05.2005] UZJ100 NO.1 |
85279-14160 |
US $6.55 |
||
|
85348B
|
85348B
85352-12010 Joint, Headlamp Cleaner Hose, No.1[05.2005 -] UZJ100 |
85352-12010 |
from US $5.74 |
||
|
85348B
|
85348B
85379-22080 Joint, Headlamp Cleaner Hose, No.1[08.2002 - 05.2005] UZJ100 NO.2 |
85379-22080 |
from US $3.93 |
||
|
85348H
|
85348H
85378-60530 Joint, Headlamp Cleaner Hose, No.4[08.2002 - 05.2005] UZJ100 |
85378-60530 |
US $9.90 |
||
|
85361C
|
85361C
85361-33020 Bracket, Washer[08.2002 - 05.2005] UZJ100 |
85361-33020 |
from US $5.70 |
||
|
85371A
|
85371A
85336-12230 Joint, Windshield Washer Elbow, No.1[08.2002 - 05.2005] UZJ100 L=15 |
85336-12230 |
US $3.86 |
||
|
85371C
|
85371C
85359-60120
Hose, Headlamp Cleaner, No.1
[08.2002 - 05.2005] UZJ100 L=275 |
85359-60120 |
— | ||
|
8271114890
|
8271114890
82711-14890 Wire, Fuse To Fuse(for Combustion Heater) |
82711-14890 |
US $2.15 |
||
|
8527220060
|
8527220060
85272-20060 Clamp, Headlamp Cleaner, No.1 |
85272-20060 |
from US $2 |
||
|
8527220080
|
8527220080
85272-20080 Clamp, Headlamp Cleaner, No.1 |
85272-20080 |
from US $1.77 |
||
|
8527320020
|
8527320020
85273-20020 Clamp, Headlamp Cleaner, No.1 |
85273-20020 |
from US $1.75 |
||
|
9007506003
|
9007506003
90075-06003 BOLT |
90075-06003 |
US $3.14 |
||
|
9007590506
|
9007590506
90075-90506 CLAMP |
90075-90506 |
US $4.12 |
||
|
9007590507
|
9007590507
90075-90507
New Genuine Part
|
90075-90507 |
— | ||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.58 |
||
