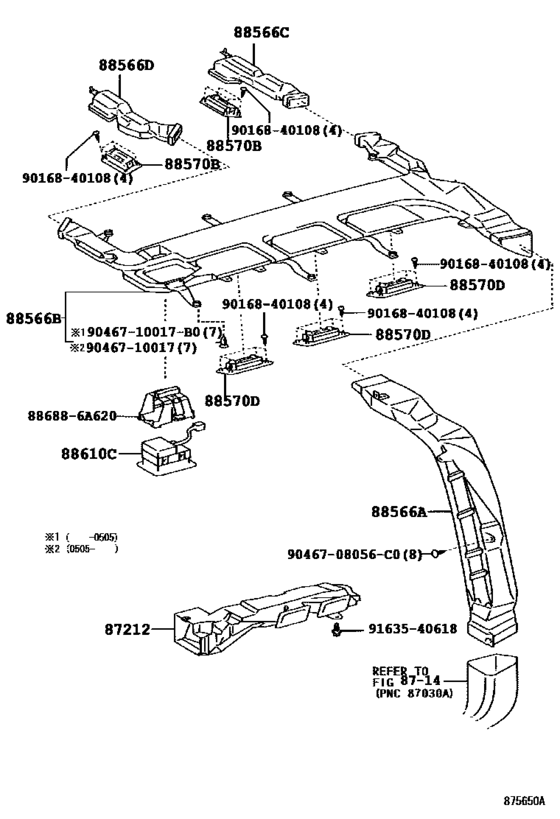

Heating & Air Conditioning - Control & Air Duct ([08.2002 - ] REAR DUCT (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87212
|
87212
87212-60121
Duct, Air, Rear No.1
[08.2002 - 07.2003] UZJ100 |
87212-60121 |
— | ||
| replacement | |||||
|
87212
|
87212
87212-60122
Duct, Air, Rear No.1
[08.2002 - 07.2003] UZJ100 |
87212-60122 |
— | ||
|
87212
|
87212
87212-60122
Duct, Air, Rear No.1
[07.2003 - 05.2005] UZJ100 |
87212-60122 |
— | ||
|
88566A
|
88566A
88566-60230
Duct, Cooler Air, No.1
[08.2002 - 05.2005] UZJ100 |
88566-60230 |
— | ||
|
88566B
|
88566B
88566-60240
Duct, Cooler Air, No.2
[08.2002 - 05.2005] UZJ100 |
88566-60240 |
— | ||
|
88566C
|
88566C
88566-60250
Duct, Cooler Air, No.3
[08.2002 - 05.2005] UZJ100 |
88566-60250 |
— | ||
|
88566D
|
88566D
88566-60260
Duct, Cooler Air, No.4
[08.2002 - 05.2005] UZJ100 |
88566-60260 |
— | ||
|
88570B
|
88570B
88570-60130-A0
Grille Assy, Air Outlet, No.1
[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
88570-60130-A0 |
— | ||
|
88570B
|
88570B
88570-60130-B0
Grille Assy, Air Outlet, No.1
[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
88570-60130-B0 |
— | ||
|
88570D
|
88570D
88570-60090-A1 Grille Assy, Air Outlet, No.2[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
88570-60090-A1 |
from US $45.25 |
||
|
88570D
|
88570D
88570-60090-B1
Grille Assy, Air Outlet, No.2
[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
88570-60090-B1 |
— | ||
|
88610C
|
88610C
88610-60121-A1 Switch Assy, Cooler Control[08.2002 - 05.2005] UZJ100 CANADA SPEC,IVORY,TRIM0# |
88610-60121-A1 |
US $412.09 |
||
|
88610C
|
88610C
88610-60121-B1
Switch Assy, Cooler Control
[08.2002 - 05.2005] UZJ100 CANADA SPEC,STONE,TRIM1# |
88610-60121-B1 |
— | ||
|
88610C
|
88610C
88610-60131-A1
Switch Assy, Cooler Control
[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
88610-60131-A1 |
— | ||
|
88610C
|
88610C
88610-60131-B1
Switch Assy, Cooler Control
[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
88610-60131-B1 |
— | ||
|
886886A620
|
886886A620
88688-6A620
Bracket, Cooler Diaphragm
|
88688-6A620 |
— | ||
|
9016840108
|
9016840108
90168-40108 New Genuine Part |
90168-40108 |
US $1.25 |
||
|
9046708056C0
|
9046708056C0
90467-08056-C0 Clip |
90467-08056-C0 |
from US $0.82 |
||
|
9046710017
|
9046710017
90467-10017 Clip(For Rear Door Trim Board) |
90467-10017 |
US $2.48 |
||
| replacement | |||||
|
9046710017
|
9046710017
90467-10017-22 Clip(For Front Door No.2 Weatherstrip) |
90467-10017-22 |
US $1.61 |
||
|
9046710017B0
|
9046710017B0
90467-10017-B0 Clip, Roof Headlining |
90467-10017-B0 |
US $2.51 |
||
|
9163540618
|
9163540618
91635-40618 BOLT WWASHER |
91635-40618 |
from US $0.78 |
||
