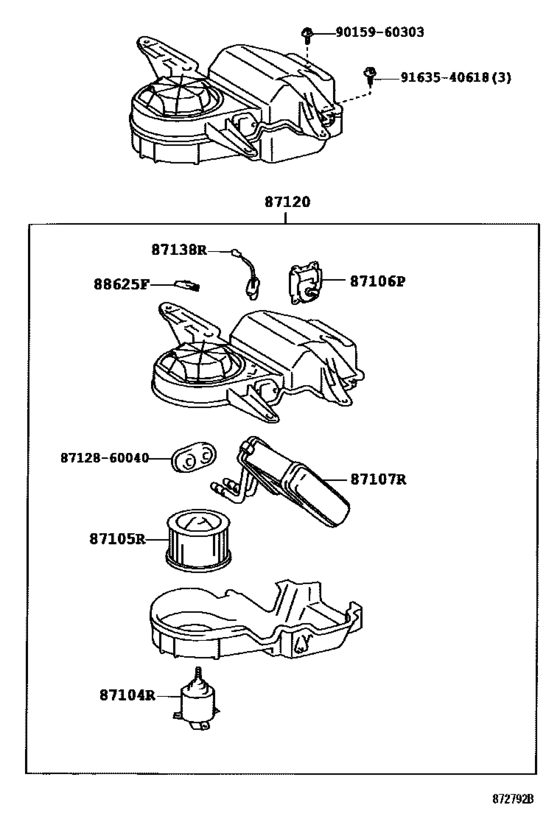

Heating & Air Conditioning - Heater Unit & Blower ([01.1998 - ] REAR (9801- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87104R
|
87104R
87104-60261 Motor Sub-Assy, Rear Heater Blower[08.2002 - 05.2005] UZJ100 |
87104-60261 |
from US $241.95 |
||
|
87105R
|
87105R
87105-26040 Fan Sub-Assy, Blower, Rear[08.2002 - 05.2005] UZJ100 |
87105-26040 |
US $21.11 |
||
|
87106P
|
87106P
87106-60140
Servo Sub-Assy, Damper(For Rear Heater)
[08.2002 - 05.2005] UZJ100 |
87106-60140 |
— | ||
|
87107R
|
87107R
87107-35040
Unit Sub-Assy, Rear Heater
[08.2002 - 05.2005] UZJ100 |
87107-35040 |
— | ||
|
87120
|
87120
87110-60221
Heater Assy, Rear
[08.2002 - 05.2005] UZJ100 |
87110-60221 |
— | ||
|
87138R
|
87138R
88750-60010
Resistor, Rear Heater Blower
[08.2002 - 05.2005] UZJ100 |
88750-60010 |
— | ||
|
88625F
|
88625F
88625-28160
Sensor, Temperature
[08.2002 - 05.2005] UZJ100 |
88625-28160 |
— | ||
|
8712860040
|
8712860040
87128-60040
Grommet, Heater
|
87128-60040 |
— | ||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9163540618
|
9163540618
91635-40618 BOLT WWASHER |
91635-40618 |
from US $0.78 |
