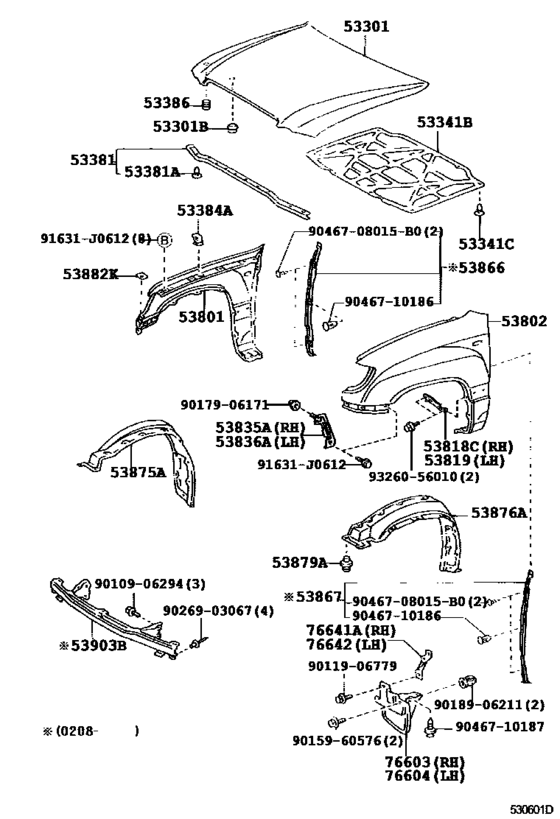

Hood & Front Fender ([01.1998 - ] (9801- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-60520
Hood Sub-Assy
[08.2002 - 05.2005] UZJ100 |
53301-60520 |
— | ||
|
53341B
|
53341B
53341-60180 Insulator, HoodHOOD [08.2002 - 05.2005] UZJ100 |
53341-60180 |
US $257.07 |
||
|
53341C
|
53341C
90467-09006 Clip(For Hood Insulator)[08.2002 - 03.2005] UZJ100 |
90467-09006 |
from US $0.78 |
||
|
53341C
|
53341C
90467-09050 Clip(For Hood Insulator)[03.2005 - 05.2005] UZJ100 |
90467-09050 |
from US $0.84 |
||
|
53381
|
53381
53381-60040
Seal, Hood To Radiator Support
[08.2002 - 03.2004] UZJ100 |
53381-60040 |
— | ||
| replacement | |||||
|
53381
|
53381
53381-60041 Seal, Hood To Radiator Support[08.2002 - 03.2004] UZJ100 |
53381-60041 |
from US $25.73 |
||
|
53381
|
53381
53381-60041 Seal, Hood To Radiator Support[03.2004 - 05.2005] UZJ100 |
53381-60041 |
from US $25.73 |
||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[08.2002 - 05.2005] UZJ100 |
90467-08011 |
from US $0.32 |
||
| replacements | |||||
|
53381A
|
53381A
90467-08011-TH CLIP[08.2002 - 05.2005] UZJ100 |
90467-08011-TH |
US $0.30 |
||
|
53381A
|
53381A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [08.2002 - 05.2005] UZJ100 |
90467-08011-83 |
US $0.51 |
||
|
53384A
|
53384A
53384-35010 Bumper, Fender To Hood[08.2002 - 05.2005] UZJ100 |
53384-35010 |
from US $4.71 |
||
|
53386
|
53386
53382-60020 Bumper, Hood, Rear[08.2002 - 05.2005] UZJ100 |
53382-60020 |
from US $6.73 |
||
|
53801
|
53801
53801-60890 Fender Sub-Assy, Front Rh[08.2002 - 01.2005] UZJ100 |
53801-60890 |
US $872.14 |
||
| replacements | |||||
|
53801
|
53801
53801-60891 Fender Sub-Assy, Front Rh[08.2002 - 01.2005] UZJ100 |
53801-60891 |
from US $717.63 |
||
|
53801
|
53801
90159-50353 SCREW, W-WASHER[08.2002 - 01.2005] UZJ100 |
90159-50353 |
from US $0.65 |
||
|
53801
|
53801
90189-05142 GROMMET, SCREW[08.2002 - 01.2005] UZJ100 |
90189-05142 |
from US $0.74 |
||
|
53801
|
53801
53801-60891 Fender Sub-Assy, Front Rh[01.2005 - 05.2005] UZJ100 |
53801-60891 |
from US $717.63 |
||
|
53802
|
53802
53802-6A210 Fender Sub-Assy, Front Lh[08.2002 - 01.2005] UZJ100 |
53802-6A210 |
US $872.14 |
||
| replacements | |||||
|
53802
|
53802
53802-6A211 Fender Sub-Assy, Front Lh[08.2002 - 01.2005] UZJ100 |
53802-6A211 |
US $872.14 |
||
|
53802
|
53802
90159-50353 SCREW, W-WASHER[08.2002 - 01.2005] UZJ100 |
90159-50353 |
from US $0.65 |
||
|
53802
|
53802
90189-05142 GROMMET, SCREW[08.2002 - 01.2005] UZJ100 |
90189-05142 |
from US $0.74 |
||
|
53802
|
53802
53802-6A211 Fender Sub-Assy, Front Lh[01.2005 - 05.2005] UZJ100 |
53802-6A211 |
US $872.14 |
||
|
53818C
|
53818C
53818-60010 Reinforcement, Front Fender, Rear Rh[08.2002 - 05.2005] UZJ100 |
53818-60010 |
from US $10.70 |
||
|
53819
|
53819
53818-60010 Reinforcement, Front Fender, Rear Rh[08.2002 - 05.2005] UZJ100 |
53818-60010 |
from US $10.70 |
||
|
53835A
|
53835A
53835-60040 Brace, Front Fender To Apron, Rh[08.2002 - 05.2005] UZJ100 |
53835-60040 |
from US $10.26 |
||
|
53836A
|
53836A
53835-60040 Brace, Front Fender To Apron, Rh[08.2002 - 05.2005] UZJ100 |
53835-60040 |
from US $10.26 |
||
|
53866
|
53866
53866-60060 Seal, Front Fender To Cowl Side, Rh[08.2002 - 05.2005] UZJ100 |
53866-60060 |
from US $23.41 |
||
|
53867
|
53867
53867-60060 Seal, Front Fender To Cowl Side, Lh[08.2002 - 05.2005] UZJ100 |
53867-60060 |
from US $19.83 |
||
|
53875A
|
53875A
53875-60020
Liner, Front Fender, Rh
[08.2002 - 12.2004] UZJ100 |
53875-60020 |
— | ||
| replacement | |||||
|
53875A
|
53875A
53875-60021 Liner, Front Fender, Rh[08.2002 - 12.2004] UZJ100 |
53875-60021 |
from US $84.36 |
||
|
53875A
|
53875A
53875-60021 Liner, Front Fender, Rh[01.2005 - 05.2005] UZJ100 |
53875-60021 |
from US $84.36 |
||
|
53876A
|
53876A
53876-60020
Liner, Front Fender, Lh
[08.2002 - 03.2003] UZJ100 |
53876-60020 |
— | ||
| replacement | |||||
|
53876A
|
53876A
53876-60021 Liner, Front Fender, Lh[08.2002 - 03.2003] UZJ100 |
53876-60021 |
from US $84.09 |
||
|
53876A
|
53876A
53876-60021 Liner, Front Fender, Lh[03.2003 - 05.2005] UZJ100 |
53876-60021 |
from US $84.09 |
||
|
53879A
|
53879A
53879-60010 Retainer, Front Fender Liner[08.2002 - 05.2005] UZJ100 |
53879-60010 |
from US $0.82 |
||
|
53882K
|
53882K
53882-16030 Pad, Rear Bumper, Center[08.2002 - 05.2005] UZJ100 |
53882-16030 |
from US $0.70 |
||
|
53903B
|
53903B
53903-60060 Panel Sub-Assy, Front End[08.2002 - 05.2005] UZJ100 |
53903-60060 |
US $247.52 |
||
| replacement | |||||
|
53903B
|
53903B
53903-60061 Panel Sub-Assy, Front End[08.2002 - 05.2005] UZJ100 |
53903-60061 |
from US $223.19 |
||
|
53903B
|
53903B
53903-60061 Panel Sub-Assy, Front End[05.2005 -] UZJ100 |
53903-60061 |
from US $223.19 |
||
|
76603
|
76603
76621-60080 Mudguard Sub-Assy, Front Fender, Rh[08.2002 - 05.2005] UZJ100 |
76621-60080 |
from US $47.04 |
||
|
76604
|
76604
76622-60070 Mudguard Sub-Assy, Front Fender, Lh[08.2002 - 05.2005] UZJ100 |
76622-60070 |
from US $47.04 |
||
|
76641A
|
76641A
76641-60020 Bracket, Front Mudguard[08.2002 - 05.2005] UZJ100 |
76641-60020 |
from US $8.32 |
||
|
76642
|
76642
76642-60020 Bracket, Front Fender Panel Mudguard, Lh[08.2002 - 05.2005] UZJ100 |
76642-60020 |
from US $8.27 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9010906294
|
9010906294
90109-06294 BOLT |
90109-06294 |
US $1.97 |
||
|
9011906779
|
9011906779
90119-06779 BOLT W-WASHER |
90119-06779 |
from US $0.67 |
||
|
9015960576
|
9015960576
90159-60576 SCREW WWASHER |
90159-60576 |
from US $0.95 |
||
|
9017906171
|
9017906171
90179-06171 Nut, Cap(For Cylinder Head Cover) |
90179-06171 |
from US $0.76 |
||
|
9018906211
|
9018906211
90189-06211 GROMMET SCREW |
90189-06211 |
from US $0.70 |
||
|
9026903067
|
9026903067
90269-03067 RIVET |
90269-03067 |
from US $0.80 |
||
|
9046708015B0
|
9046708015B0
90467-08015-B0 Clip, Roof Headlining |
90467-08015-B0 |
US $2.33 |
||
|
9046710186
|
9046710186
90467-10186 Clip(For Front Fender Apron Seal) |
90467-10186 |
from US $1.29 |
||
|
9046710187
|
9046710187
90467-10187 CLIP |
90467-10187 |
from US $0.99 |
||
|
9326056010
|
9326056010
93260-56010 SCREW |
93260-56010 |
US $1.25 |
||
