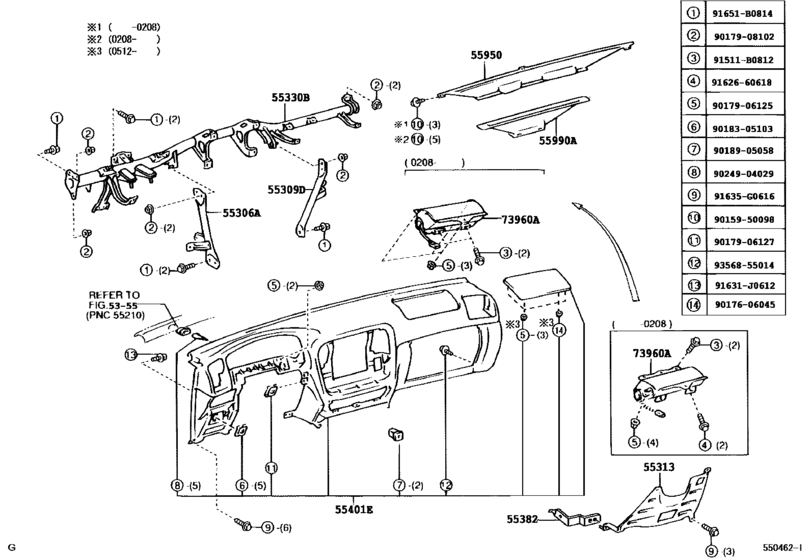

Instrument Panel & Glove Compartment ([01.1998 - ] (9801- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55306A
|
55306A
55306-60141 Brace Sub-Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [08.2002 - 05.2005] UZJ100 |
55306-60141 |
from US $35.38 |
||
|
55309D
|
55309D
55309-60042 Brace Sub-Assy, Instrument Panel To FloorINSTRUMENT PANEL TO FLOOR [08.2002 - 05.2005] UZJ100 |
55309-60042 |
US $32.32 |
||
|
55313
|
55313
55313-60020 Panel, Instrument, Lower LhINSTRUMENT, LOWER LH [08.2002 - 05.2005] UZJ100 |
55313-60020 |
US $37.86 |
||
|
55330B
|
55330B
55330-60141 Reinforcement Assy, Instrument PanelINSTRUMENT PANEL [08.2002 - 12.2004] UZJ100 |
55330-60141 |
US $294.11 |
||
| replacement | |||||
|
55330B
|
55330B
55330-60142
Reinforcement Assy, Instrument Panel
[08.2002 - 12.2004] UZJ100 |
55330-60142 |
— | ||
|
55330B
|
55330B
55330-60142
Reinforcement Assy, Instrument Panel
[01.2005 - 05.2005] UZJ100 |
55330-60142 |
— | ||
|
55382
|
55382
55382-60020
Bracket, Finish Panel Mounting, No.2
[08.2002 - 05.2005] UZJ100 |
55382-60020 |
— | ||
|
55401E
|
55401E
55401-60200-B0 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [08.2002 - 05.2005] UZJ100 DK.GRAY,TRIM1# |
55401-60200-B0 |
US $992.99 |
||
| replacement | |||||
|
55401E
|
55401E
55401-60201-B0
Pad Sub-Assy, Instrument Panel Safety
[08.2002 - 05.2005] UZJ100 DK.GRAY,TRIM1# |
55401-60201-B0 |
— | ||
|
55401E
|
55401E
55401-60200-E0 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [08.2002 - 05.2005] UZJ100 SANDAL WOOD,TRIM0# |
55401-60200-E0 |
US $992.99 |
||
| replacement | |||||
|
55401E
|
55401E
55401-60201-E0 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [08.2002 - 05.2005] UZJ100 SANDAL WOOD,TRIM0# |
55401-60201-E0 |
US $992.99 |
||
|
55401E
|
55401E
55401-60201-B0
Pad Sub-Assy, Instrument Panel Safety
[12.2005 - 08.2007] UZJ100 DK.GRAY,TRIM1# |
55401-60201-B0 |
— | ||
|
55401E
|
55401E
55401-60201-E0 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [12.2005 - 08.2007] UZJ100 SANDAL WOOD,TRIM0# |
55401-60201-E0 |
US $992.99 |
||
|
55401E
|
55401E
55401-60250-B0 Pad Sub-Assy, Instrument Panel Safety[08.2002 - 05.2005] UZJ100 W(NIGHT VIEW),DK.GRAY,TRIM1# |
55401-60250-B0 |
US $992.99 |
||
| replacement | |||||
|
55401E
|
55401E
55401-60251-B0
Pad Sub-Assy, Instrument Panel Safety
[08.2002 - 05.2005] UZJ100 W(NIGHT VIEW),DK.GRAY,TRIM1# |
55401-60251-B0 |
— | ||
|
55401E
|
55401E
55401-60250-E0 Pad Sub-Assy, Instrument Panel Safety[08.2002 - 05.2005] UZJ100 W(NIGHT VIEW),SANDAL WOOD,TRIM0# |
55401-60250-E0 |
US $992.99 |
||
| replacement | |||||
|
55401E
|
55401E
55401-60251-E0 Pad Sub-Assy, Instrument Panel Safety[08.2002 - 05.2005] UZJ100 W(NIGHT VIEW),SANDAL WOOD,TRIM0# |
55401-60251-E0 |
US $992.99 |
||
|
55401E
|
55401E
55401-60251-B0
Pad Sub-Assy, Instrument Panel Safety
[12.2005 - 08.2007] UZJ100 W(NIGHT VIEW),DK.GRAY,TRIM1# |
55401-60251-B0 |
— | ||
|
55401E
|
55401E
55401-60251-E0 Pad Sub-Assy, Instrument Panel Safety[12.2005 - 08.2007] UZJ100 W(NIGHT VIEW),SANDAL WOOD,TRIM0# |
55401-60251-E0 |
US $992.99 |
||
|
55950
|
55950
55950-60091 Nozzle Assy, DefrosterDEFROSTER [08.2002 - 05.2005] UZJ100 |
55950-60091 |
US $62.32 |
||
| replacement | |||||
|
55950
|
55950
55950-60140
Nozzle Assy, Defroster
[08.2002 - 05.2005] UZJ100 |
55950-60140 |
— | ||
|
55950
|
55950
55950-60120 Nozzle Assy, DefrosterDEFROSTER [08.2002 - 05.2005] UZJ100 W(NIGHT VIEW) |
55950-60120 |
US $62.32 |
||
|
55990A
|
55990A
55990-60020 Nozzle Assy, Defroster, LowerDEFROSTER, LOWER [08.2002 - 05.2005] UZJ100 |
55990-60020 |
US $38.44 |
||
|
73960A
|
73960A
73960-60120
Air Bag Assy, Instrument Panel Passenger W/o Door
[08.2002 - 05.2005] UZJ100 |
73960-60120 |
— | ||
|
73960A
|
73960A
73960-60160
Air Bag Assy, Instrument Panel Passenger W/o Door
[01.2006 -] UZJ100 |
73960-60160 |
— | ||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.61 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
91635G0616
|
91635G0616
91635-G0616 BOLTWWASHER |
91635-G0616 |
US $1.08 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
|
9017606045
|
9017606045
90176-06045 NUT, CAP CYL HEAD COVER |
90176-06045 |
from US $0.76 |
||
|
9017906125
|
9017906125
90179-06125 Nut (For Rear Wiper Arm Setting) |
90179-06125 |
from US $0.70 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.68 |
||
|
9017908102
|
9017908102
90179-08102 NUT |
90179-08102 |
US $2.87 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.61 |
||
|
9018905058
|
9018905058
90189-05058 GROMMET |
90189-05058 |
US $1.43 |
||
|
9024904029
|
9024904029
90249-04029 Pin, Instrument Panel, No.1 |
90249-04029 |
US $2.89 |
||
|
9162660618
|
9162660618
91626-60618
New Genuine Part
|
91626-60618 |
— | ||
| replacement | |||||
|
9162660618
|
9162660618
91621-J0614 BOLT W-WASHER |
91621-J0614 |
from US $0.87 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
