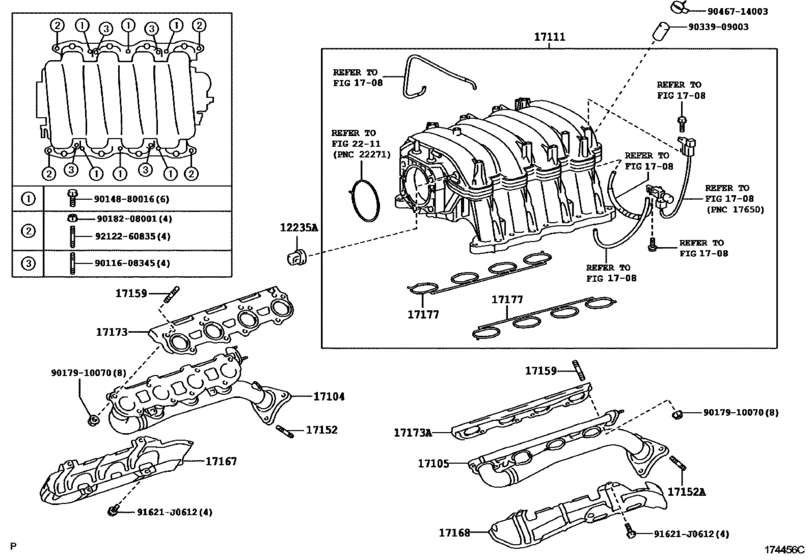

Manifold ([05.2005 - ] (0505- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12235A
|
12235A
12235-50020
Cap, Ventilation
[05.2005 -] 2UZFE..UZJ100 |
12235-50020 |
— | ||
|
17104
|
17104
17104-50121 Manifold Sub-Assy, Exhaust, Rh[08.2002 - 05.2005] 2UZFE..UZJ100 |
17104-50121 |
from US $449.75 |
||
|
17104
|
17104
17104-50210 Manifold Sub-Assy, Exhaust, RhEXHAUST, RH [05.2005 -] 2UZFE..UZJ100 |
17104-50210 |
US $562.02 |
||
|
17105
|
17105
17105-50121 Manifold Sub-Assy, Exhaust, Lh[08.2002 - 05.2005] 2UZFE..UZJ100 |
17105-50121 |
from US $493.05 |
||
|
17105
|
17105
17105-50200 Manifold Sub-Assy, Exhaust, LhEXHAUST, LH [05.2005 -] 2UZFE..UZJ100 |
17105-50200 |
US $564.93 |
||
|
17111
|
17111
17101-50020 Manifold, Intake[08.2002 - 05.2005] 2UZFE..UZJ100 |
17101-50020 |
US $870.69 |
||
| replacement | |||||
|
17111
|
17111
17101-50040 Manifold, Intake[08.2002 - 05.2005] 2UZFE..UZJ100 |
17101-50040 |
US $870.69 |
||
|
17111
|
17111
17120-50011
Manifold, Intake
[05.2005 - 07.2006] 2UZFE..UZJ100 |
17120-50011 |
— | ||
| replacements | |||||
|
17111
|
17111
17120-50020 Manifold, Intake[05.2005 - 07.2006] 2UZFE..UZJ100 |
17120-50020 |
from US $968.76 |
||
|
17111
|
17111
90447-08174 New Genuine Part[05.2005 - 07.2006] 2UZFE..UZJ100 |
90447-08174 |
US $17.06 |
||
|
17111
|
17111
17120-50020 Manifold, Intake[07.2006 -] 2UZFE..UZJ100 |
17120-50020 |
from US $968.76 |
||
|
17152
|
17152
90126-10006 Bolt, Stud(For Manifold To Exhaust Pipe)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90126-10006 |
from US $4.35 |
||
|
17152A
|
17152A
90126-10006 Bolt, Stud(For Manifold To Exhaust Pipe)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90126-10006 |
from US $4.35 |
||
|
17159
|
17159
90126-10015 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90126-10015 |
from US $2.72 |
||
|
17167
|
17167
17167-50100 Insulator, Exhaust Manifold Heat, No.1[08.2002 - 05.2005] 2UZFE..UZJ100 |
17167-50100 |
from US $58.37 |
||
|
17167
|
17167
17167-50190 Insulator, Exhaust Manifold Heat, No.1EXHAUST MANIFOLD HEAT, NO.1 [05.2005 -] 2UZFE..UZJ100 |
17167-50190 |
US $110.66 |
||
|
17168
|
17168
17168-50090 Insulator, Exhaust Manifold Heat, No.2[08.2002 - 05.2005] 2UZFE..UZJ100 |
17168-50090 |
from US $44.16 |
||
|
17168
|
17168
17168-50180 Insulator, Exhaust Manifold Heat, No.2EXHAUST MANIFOLD HEAT, NO.2 [05.2005 -] 2UZFE..UZJ100 |
17168-50180 |
US $110.66 |
||
|
17173
|
17173
17173-50021 Gasket, Exhaust Manifold To Head[08.2002 - 05.2005] 2UZFE..UZJ100 |
17173-50021 |
from US $27 |
||
|
17173
|
17173
17173-50030 Gasket, Exhaust Manifold To Head[05.2005 -] 2UZFE..UZJ100 |
17173-50030 |
from US $53.47 |
||
|
17173A
|
17173A
17173-50021 Gasket, Exhaust Manifold To Head[08.2002 - 05.2005] 2UZFE..UZJ100 |
17173-50021 |
from US $27 |
||
|
17173A
|
17173A
17198-50010 Gasket, Exhaust Manifold To Head, Lh[05.2005 -] 2UZFE..UZJ100 |
17198-50010 |
from US $52.14 |
||
|
17177
|
17177
17171-50020 Gasket, Intake Manifold To Head, No.1[08.2002 - 05.2005] 2UZFE..UZJ100 |
17171-50020 |
from US $18.07 |
||
|
17177
|
17177
17171-50030 Gasket, Intake Manifold To Head, No.1[05.2005 -] 2UZFE..UZJ100 |
17171-50030 |
from US $11.10 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9011608345
|
9011608345
90116-08345 New Genuine Part |
90116-08345 |
US $3.05 |
||
|
9014880016
|
9014880016
90148-80016 New Genuine Part |
90148-80016 |
US $9.17 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.33 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $44.70 |
||
|
9018208001
|
9018208001
90182-08001 New Genuine Part |
90182-08001 |
US $1.16 |
||
|
9033909003
|
9033909003
90339-09003 Plug(For Vacuum Hose Union) |
90339-09003 |
US $3.76 |
||
|
9046714003
|
9046714003
90467-14003 Clip Or Clamp(For Ventilation Hose) |
90467-14003 |
US $2.33 |
||
|
9212260835
|
9212260835
92122-60835 New Genuine Part |
92122-60835 |
US $1.93 |
||
