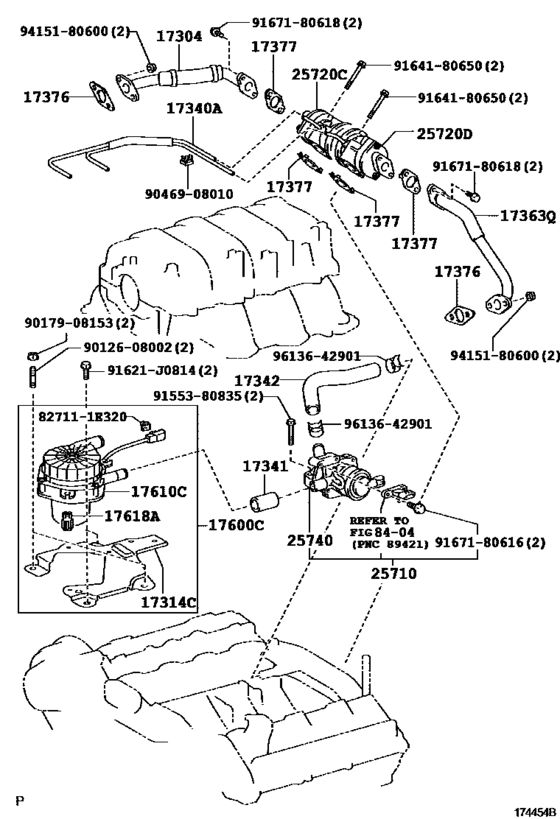

Manifold Air Injection System ([05.2005 - ] (0505- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17304
|
17304
17304-50010 Tube Sub-Assy, Air, Rh[05.2005 -] 2UZFE..UZJ100 |
17304-50010 |
US $82.99 |
||
|
17314C
|
17314C
17314-0F010
Bracket, Air Pump
[05.2005 -] 2UZFE..UZJ100 |
17314-0F010 |
— | ||
|
17340A
|
17340A
17340-50020 Hose Assy, Vaccuum Switching ValveVACCUUM SWITCHING VALVE [05.2005 - 10.2006] 2UZFE..UZJ100 |
17340-50020 |
US $15.29 |
||
| replacement | |||||
|
17340A
|
17340A
17340-50030
Hose Assy, Vaccuum Switching Valve
[05.2005 - 10.2006] 2UZFE..UZJ100 |
17340-50030 |
— | ||
|
17340A
|
17340A
17340-50030
Hose Assy, Vaccuum Switching Valve
[11.2006 -] 2UZFE..UZJ100 |
17340-50030 |
— | ||
|
17341
|
17341
17341-50180 Hose, No.1(For Air Injection System)[05.2005 -] 2UZFE..UZJ100 |
17341-50180 |
from US $17.98 |
||
|
17342
|
17342
17342-50180 Hose, No.2(For Air Injection System)[05.2005 -] 2UZFE..UZJ100 |
17342-50180 |
from US $36.54 |
||
|
17363Q
|
17363Q
17363-50020 Tube, Air, No.3[05.2005 -] 2UZFE..UZJ100 |
17363-50020 |
US $55.33 |
||
|
17376
|
17376
17376-50010 Gasket, Air Tube, No.1[05.2005 -] 2UZFE..UZJ100 |
17376-50010 |
from US $1.31 |
||
|
17377
|
17377
17377-50010 Gasket, Air Tube, No.2[05.2005 -] 2UZFE..UZJ100 |
17377-50010 |
from US $1.10 |
||
|
17600C
|
17600C
17600-0F010 Pump Assy, Air[05.2005 -] 2UZFE..UZJ100 |
17600-0F010 |
US $829.92 |
||
|
17610C
|
17610C
17610-0C010 Pump Assy, Air[05.2005 -] 2UZFE..UZJ100 |
17610-0C010 |
from US $441.20 |
||
|
17618A
|
17618A
17618-0F010 Insulator, Air Pump[05.2005 -] 2UZFE..UZJ100 |
17618-0F010 |
US $9.76 |
||
|
25710
|
25710
25710-50020 Valve Assy, Air Switching[05.2005 -] 2UZFE..UZJ100 |
25710-50020 |
US $279.55 |
||
| replacement | |||||
|
25710
|
25710
25710-50022 Valve Assy, Air Switching[05.2005 -] 2UZFE..UZJ100 |
25710-50022 |
from US $223.50 |
||
|
25720C
|
25720C
25720-50010 Valve Assy, Electric Air ControlAIR SWITCHING, NO.1 [05.2005 - 11.2006] 2UZFE..UZJ100 |
25720-50010 |
US $251.89 |
||
| replacement | |||||
|
25720C
|
25720C
25720-50011 Valve Assy, Air Switching, No.1[05.2005 - 11.2006] 2UZFE..UZJ100 |
25720-50011 |
from US $132.53 |
||
|
25720C
|
25720C
25720-50011 Valve Assy, Air Switching, No.1[11.2006 -] 2UZFE..UZJ100 |
25720-50011 |
from US $132.53 |
||
|
25720D
|
25720D
25720-50020 Valve Assy, Air Switching, No.2[05.2005 -] 2UZFE..UZJ100 |
25720-50020 |
from US $132.53 |
||
|
25740
|
25740
25704-50010
Valve Assy, Air Control
[05.2005 -] 2UZFE..UZJ100 |
25704-50010 |
— | ||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.78 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.25 |
||
|
9012608002
|
9012608002
90126-08002 New Genuine Part |
90126-08002 |
US $4.08 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9046908010
|
9046908010
90469-08010 New Genuine Part |
90469-08010 |
US $2.62 |
||
|
9155380835
|
9155380835
91553-80835 New Genuine Part |
91553-80835 |
US $1.43 |
||
|
9164180650
|
9164180650
91641-80650 New Genuine Part |
91641-80650 |
US $1.46 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
||
|
9167180618
|
9167180618
91671-80618 BOLT FLANGE WWSHER |
91671-80618 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
|
9613642901
|
9613642901
96136-42901 Clip Or Clamp(For Ventilation Hose) |
96136-42901 |
from US $2.95 |
||
