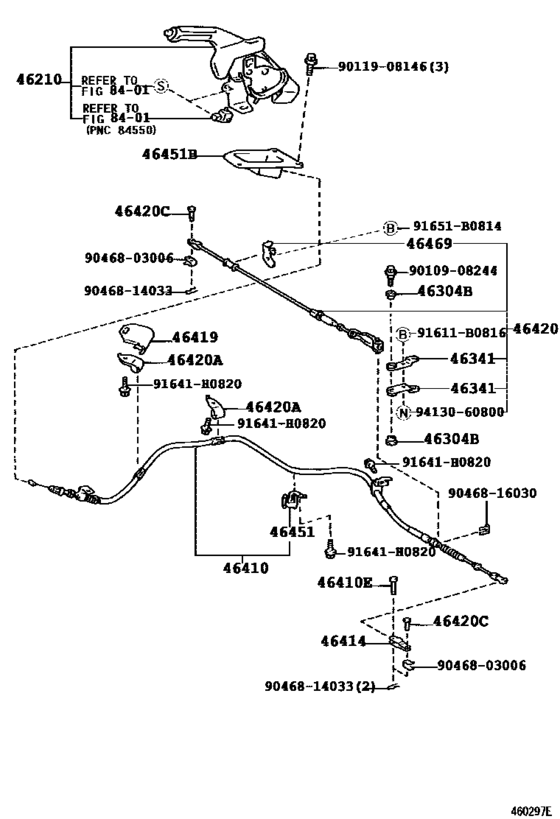

Parking Brake & Cable ([03.1999 - ] (9903- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46210
|
46210
46210-60212-C0 Lever Assy, Parking BrakePARKING BRAKE [08.2002 - 05.2005] UZJ100 BLACK,TRIM0#,1# |
46210-60212-C0 |
US $65.52 |
||
|
46304B
|
46304B
90385-12012 Bush(For Parking Brake Equalizer)[08.2002 - 05.2005] UZJ100 |
90385-12012 |
from US $1.05 |
||
|
46341
|
46341
46341-35030 Equalizer Sub-Assy, Parking Brake[08.2002 - 05.2005] UZJ100 |
46341-35030 |
from US $5.97 |
||
|
46410
|
46410
46410-60711 Cable Assy, Parking Brake, No.1PARKING BRAKE, NO.1 [08.2002 - 05.2005] UZJ100 |
46410-60711 |
from US $65.53 |
||
|
46410E
|
46410E
90240-08061 Pin, W/hole(For Parking Brake Cable No.1)[08.2002 - 05.2005] UZJ100 |
90240-08061 |
US $4.30 |
||
|
46414
|
46414
46414-60010 Clevis, Parking Cable[08.2002 - 05.2005] UZJ100 |
46414-60010 |
from US $4.79 |
||
|
46419
|
46419
46419-60020 Protector, Parking Brake Cable DifferentialPARKING BRAKE CABLE DIFFERENTIAL [08.2002 - 05.2005] UZJ100 |
46419-60020 |
US $4.02 |
||
|
46420
|
46420
46420-60011 Cable Assy, Parking Brake, No.2[08.2002 - 05.2005] UZJ100 |
46420-60011 |
from US $46.13 |
||
|
46420A
|
46420A
90949-01B47 Clamp, No.1(For Parking Brake Cable)[08.2002 - 05.2005] UZJ100 |
90949-01B47 |
US $6.45 |
||
|
46420C
|
46420C
90240-08059 Pin, W/hole(For Intermediate Lever)[08.2002 - 05.2005] UZJ100 |
90240-08059 |
from US $2 |
||
|
46451
|
46451
46451-60190 Bracket, Cable Support[08.2002 - 05.2005] UZJ100 |
46451-60190 |
US $14.50 |
||
|
46451B
|
46451B
46452-60090 Bracket, Parking Brake Cable SupportPARKING BRAKE CABLE SUPPORT [08.2002 - 05.2005] UZJ100 |
46452-60090 |
US $26.21 |
||
|
46469
|
46469
46469-60040 Lever, Cable Guide Support[08.2002 - 05.2005] UZJ100 |
46469-60040 |
US $4.54 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.80 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
9010908244
|
9010908244
90109-08244 BOLT |
90109-08244 |
from US $1.12 |
||
|
9011908146
|
9011908146
90119-08146
Bolt(For Parking Brake Setting)
|
90119-08146 |
— | ||
|
9046803006
|
9046803006
90468-03006 CLIP |
90468-03006 |
from US $1.27 |
||
|
9046814033
|
9046814033
90468-14033 CLIP |
90468-14033 |
from US $0.87 |
||
|
9046816030
|
9046816030
90468-16030 CLIP |
90468-16030 |
US $2.89 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.67 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
