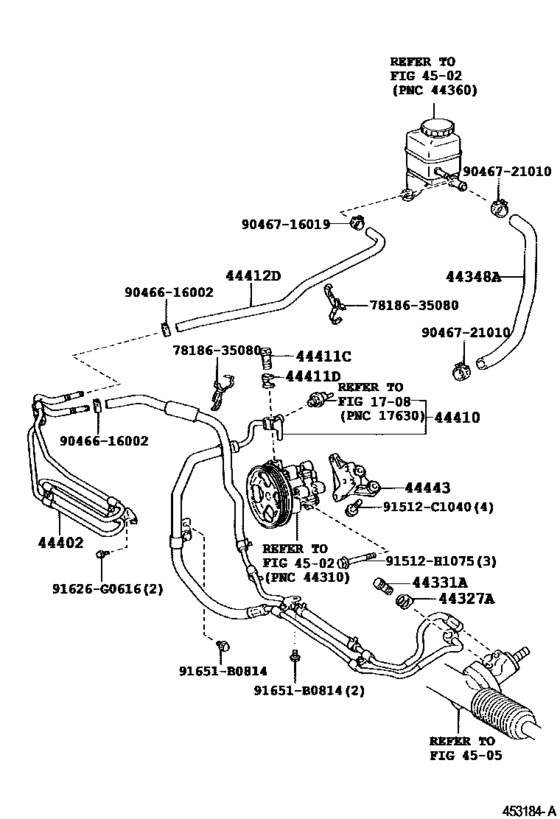

Power Steering Tube ([08.2002 - ] (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-30030 Gasket(For Pressure Hose)[08.2002 - 05.2005] UZJ100 |
44327-30030 |
from US $1.90 |
||
|
44331A
|
44331A
44331-50070 Valve, Power Steering & Suspension Control Check[08.2002 - 05.2005] UZJ100 |
44331-50070 |
from US $8.49 |
||
|
44348A
|
44348A
44348-60320 Hose, Oil Reservoir To Pump, No.1[08.2002 - 05.2005] UZJ100 |
44348-60320 |
from US $52.63 |
||
|
44402
|
44402
44402-60010 Cooler Sub-Assy, Power Steering Oil, No.1[08.2002 - 08.2004] UZJ100 |
44402-60010 |
US $131.04 |
||
| replacement | |||||
|
44402
|
44402
44402-60012 Cooler Sub-Assy, Power Steering Oil, No.1[08.2002 - 08.2004] UZJ100 |
44402-60012 |
from US $138.03 |
||
|
44402
|
44402
44402-60011 Cooler Sub-Assy, Power Steering Oil, No.1[08.2004 - 09.2004] UZJ100 |
44402-60011 |
US $131.04 |
||
| replacement | |||||
|
44402
|
44402
44402-60012 Cooler Sub-Assy, Power Steering Oil, No.1[08.2004 - 09.2004] UZJ100 |
44402-60012 |
from US $138.03 |
||
|
44402
|
44402
44402-60012 Cooler Sub-Assy, Power Steering Oil, No.1[09.2004 - 05.2005] UZJ100 |
44402-60012 |
from US $138.03 |
||
|
44410
|
44410
44410-60590 Tube Assy, Pressure FeedPRESSURE FEED [08.2002 - 08.2004] UZJ100 |
44410-60590 |
US $513.97 |
||
| replacement | |||||
|
44410
|
44410
44410-60593 Tube Assy, Pressure FeedPRESSURE FEED [08.2002 - 08.2004] UZJ100 |
44410-60593 |
from US $367.80 |
||
|
44410
|
44410
44410-60591 Tube Assy, Pressure FeedPRESSURE FEED [08.2004 - 09.2004] UZJ100 |
44410-60591 |
US $513.97 |
||
| replacement | |||||
|
44410
|
44410
44410-60593 Tube Assy, Pressure FeedPRESSURE FEED [08.2004 - 09.2004] UZJ100 |
44410-60593 |
from US $367.80 |
||
|
44410
|
44410
44410-60593 Tube Assy, Pressure FeedPRESSURE FEED [09.2004 - 05.2005] UZJ100 |
44410-60593 |
from US $367.80 |
||
|
44411C
|
44411C
90401-16034 Bolt, Union(For Pressure Feed Tube)[08.2002 - 05.2005] UZJ100 |
90401-16034 |
from US $6.81 |
||
|
44411D
|
44411D
44327-30040 Gasket, Pressure Port, No.1[08.2002 - 05.2005] UZJ100 |
44327-30040 |
from US $1.88 |
||
|
44412D
|
44412D
44412-60280 Hose, Return, No.1[08.2002 - 05.2005] UZJ100 |
44412-60280 |
from US $50.33 |
||
|
44443
|
44443
44443-60100 Bracket, Pump[08.2002 - 05.2005] UZJ100 |
44443-60100 |
US $77.93 |
||
|
91512C1040
|
91512C1040
91512-C1040
BOLTFLANGE
|
91512-C1040 |
— | ||
|
91512H1075
|
91512H1075
91512-H1075 New Genuine Part |
91512-H1075 |
US $3.32 |
||
|
91626G0616
|
91626G0616
91626-G0616 BOLT WWASHER |
91626-G0616 |
US $1.97 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
7818635080
|
7818635080
78186-35080 Clamp, Accelerator Control Cable, No.3 |
78186-35080 |
US $3.79 |
||
|
9046616002
|
9046616002
90466-16002 Clamp, Hose(For Oil Cooler) |
90466-16002 |
from US $3.12 |
||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.36 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.43 |
||
