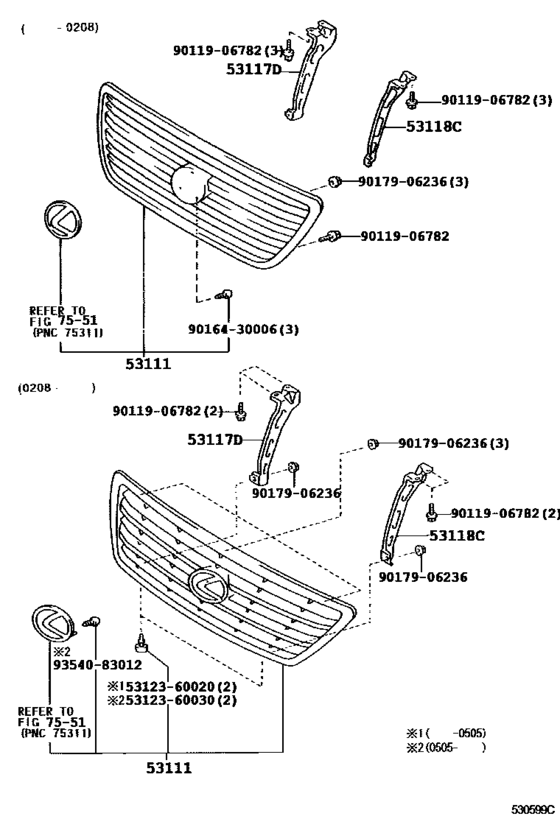

Radiator Grille ([01.1998 - ] (9801- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53111
|
53111
53101-60290 Grille, RadiatorRADIATOR [08.2002 - 05.2005] UZJ100 |
53101-60290 |
US $592.59 |
||
|
53111
|
53111
53101-60380 Grille, RadiatorRADIATOR [05.2005 -] UZJ100 |
53101-60380 |
from US $551.36 |
||
|
53117D
|
53117D
53117-60030 Bracket, Radiator Grille, Lower Rh[08.2002 - 05.2005] UZJ100 |
53117-60030 |
US $19.04 |
||
|
53118C
|
53118C
53118-60020 Bracket, Radiator Grille, Lower Lh[08.2002 - 05.2005] UZJ100 |
53118-60020 |
US $19.04 |
||
|
5312360020
|
5312360020
53123-60020 Plate, Radiator Grille Finish, Outside Upper |
53123-60020 |
US $2.62 |
||
|
5312360030
|
5312360030
53123-60030 Plate, Radiator Grille Finish, Outside Upper |
53123-60030 |
US $2.62 |
||
|
9011906782
|
9011906782
90119-06782 BOLT WWASHER |
90119-06782 |
from US $0.65 |
||
|
9016430006
|
9016430006
90164-30006 SCREW BINDING |
90164-30006 |
from US $0.97 |
||
|
9017906236
|
9017906236
90179-06236 NUT |
90179-06236 |
US $2.15 |
||
|
9354083012
|
9354083012
93540-83012 New Genuine Part |
93540-83012 |
US $1.97 |
