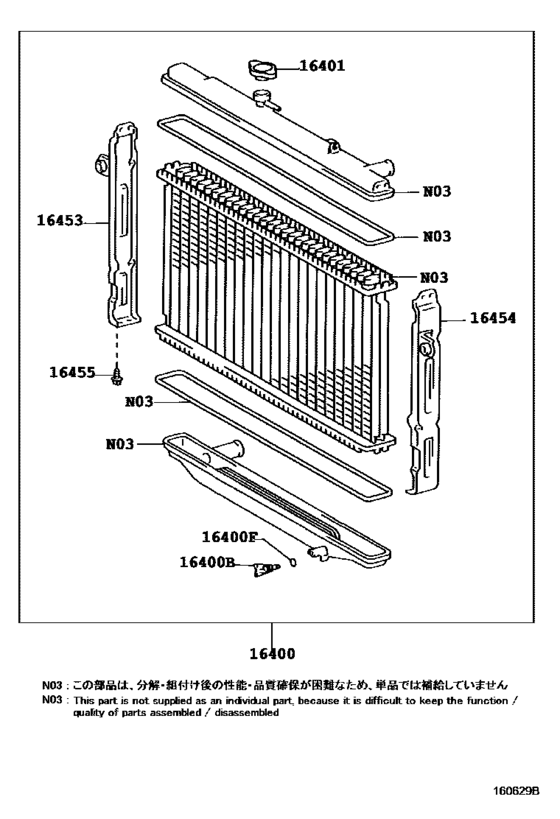

Radiator & Water Outlet ([01.1998 - ] (9801- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16400
|
16400
16400-50290 Radiator Assy[08.2002 - 05.2005] 2UZFE..UZJ100 |
16400-50290 |
US $712.86 |
||
|
16400B
|
16400B
16417-15210 Plug, Radiator Drain Cock[08.2002 - 05.2005] 2UZFE..UZJ100 |
16417-15210 |
from US $3.63 |
||
|
16400F
|
16400F
16418-15520 Packing(For Radiator Drain Cock)[08.2002 - 05.2005] 2UZFE..UZJ100 |
16418-15520 |
from US $1.52 |
||
|
16401
|
16401
16401-50210 Cap Sub-Assy, Radiator[11.2004 - 05.2005] 2UZFE..UZJ100 |
16401-50210 |
US $11.18 |
||
| replacement | |||||
|
16401
|
16401
16401-67150 Cap Sub-Assy(For Water Outlet)[11.2004 - 05.2005] 2UZFE..UZJ100 |
16401-67150 |
from US $16.97 |
||
|
16401
|
16401
16401-67150 Cap Sub-Assy(For Water Outlet)[08.2002 - 10.2004] 2UZFE..UZJ100 |
16401-67150 |
from US $16.97 |
||
|
16453
|
16453
16453-50200 Plate, Radiator Side[08.2002 - 05.2005] 2UZFE..UZJ100 |
16453-50200 |
US $85.90 |
||
|
16454
|
16454
16454-50200 Plate, Radiator Side[08.2002 - 05.2005] 2UZFE..UZJ100 |
16454-50200 |
from US $52.86 |
||
|
16455
|
16455
16455-67020 Bolt, Radiator Side Support Plate[08.2002 - 05.2005] 2UZFE..UZJ100 |
16455-67020 |
US $3.40 |
||
