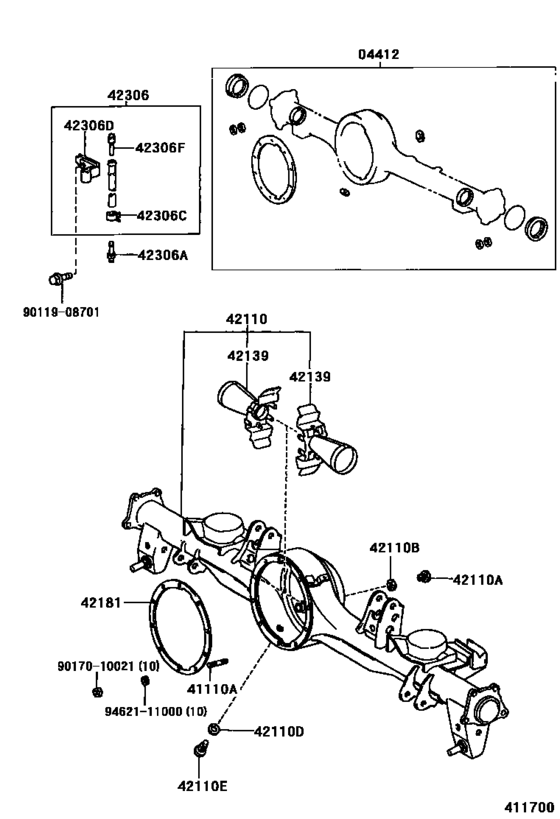

Rear Axle Housing & Differential ([08.2002 - ] (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04412
|
04412
04412-60310 Gasket Kit, Rear Differential Carrier[08.2002 - 05.2005] UZJ100 |
04412-60310 |
US $67.44 |
||
|
04412
|
04412
04412-60480 Gasket Kit, Rear Differential Carrier[05.2005 - 08.2007] UZJ100 |
04412-60480 |
US $62.90 |
||
|
41110A
|
41110A
90116-10074 Bolt, Stud (For Power Take-Off Case)[08.2002 - 05.2005] UZJ100 S=16 & 12.5,L=40.5 |
90116-10074 |
from US $0.87 |
||
|
41110A
|
41110A
90116-10075 Bolt, Stud (For Power Take-Off Case)[08.2002 - 05.2005] UZJ100 S=18 & 12.5,L=53.5 |
90116-10075 |
from US $1.03 |
||
|
42110
|
42110
42110-60731 Housing Assy, Rear Axle[08.2002 - 05.2005] UZJ100 |
42110-60731 |
US $1,093.75 |
||
|
42110A
|
42110A
90341-18006 Plug (No magnet)[08.2002 - 05.2005] UZJ100 |
90341-18006 |
from US $3.23 |
||
|
42110B
|
42110B
12157-10010 Gasket (For Drain Plug)[08.2002 - 05.2005] UZJ100 |
12157-10010 |
from US $0.74 |
||
|
42110D
|
42110D
12157-10010 Gasket (For Drain Plug)[08.2002 - 05.2005] UZJ100 |
12157-10010 |
from US $0.74 |
||
|
42110E
|
42110E
90341-18040 Plug (For Rear Axle Housing Drain)[08.2002 - 05.2005] UZJ100 |
90341-18040 |
from US $4.30 |
||
|
42139
|
42139
42108-60030
Deflector, Rear Axle Housing Oil
[08.2002 - 05.2005] UZJ100 |
42108-60030 |
— | ||
| replacement | |||||
|
42139
|
42139
42108-60051 DEFLECTOR SUBASSY[08.2002 - 05.2005] UZJ100 |
42108-60051 |
US $16.77 |
||
|
42181
|
42181
42181-60060 Gasket, Rear Differential Carrier[08.2002 - 05.2005] UZJ100 |
42181-60060 |
from US $5.99 |
||
|
42306
|
42306
42306-60140 Hose Sub-Assy, Rear Axle Breather[08.2002 - 05.2005] UZJ100 |
42306-60140 |
from US $21.77 |
||
|
42306A
|
42306A
90404-51052 Union (For Rear Axle Breather House)[08.2002 - 05.2005] UZJ100 |
90404-51052 |
from US $2.87 |
||
|
42306C
|
42306C
96132-51100 Clip (For Hose)[08.2002 - 05.2005] UZJ100 |
96132-51100 |
from US $1.39 |
||
|
42306D
|
42306D
90949-01C09 Clamp (For Rear Axle Brather Hose)[08.2002 - 05.2005] UZJ100 |
90949-01C09 |
US $6.12 |
||
|
42306F
|
42306F
90930-03097 Plug, Breather (For Differential)[08.2002 - 05.2005] UZJ100 |
90930-03097 |
from US $6.63 |
||
|
9011908701
|
9011908701
90119-08701 BOLT |
90119-08701 |
from US $0.97 |
||
|
9017010021
|
9017010021
90170-10021 Nut(For Steering Center Arm) |
90170-10021 |
from US $0.61 |
||
|
9462111000
|
9462111000
94621-11000 Washer, Spring(For Steering Center Arm) |
94621-11000 |
from US $1.01 |
||
