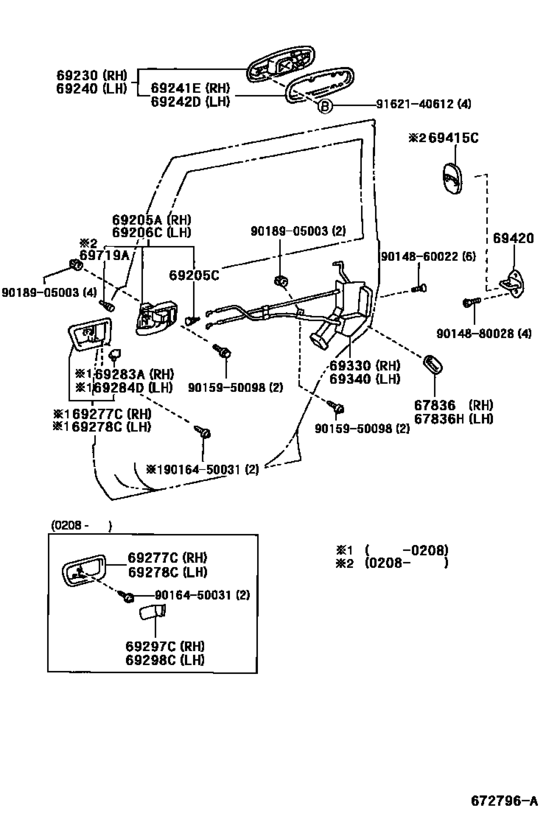

Rear Door Lock & Handle ([01.1998 - ] (9801- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67836
|
67836
67836-12040 Cover, Rear Door Lock Child Protection, Rh[08.2002 - 05.2005] UZJ100 |
67836-12040 |
from US $3.76 |
||
|
67836H
|
67836H
67836-12040 Cover, Rear Door Lock Child Protection, Rh[08.2002 - 05.2005] UZJ100 |
67836-12040 |
from US $3.76 |
||
|
69205A
|
69205A
69205-51020-A0 Handle Sub-Assy, Front Door Inside, Rh[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
69205-51020-A0 |
US $41.06 |
||
|
69205A
|
69205A
69205-51020-B1 Handle Sub-Assy, Front Door Inside, Rh[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
69205-51020-B1 |
US $41.06 |
||
|
69205C
|
69205C
90541-04014 Cushion, Console Box[08.2002 - 05.2005] UZJ100 |
90541-04014 |
from US $0.78 |
||
|
69206C
|
69206C
69206-51020-A0 Handle Sub-Assy, Front Door Inside, Lh[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
69206-51020-A0 |
US $41.06 |
||
|
69206C
|
69206C
69206-51020-B1 Handle Sub-Assy, Front Door Inside, Lh[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
69206-51020-B1 |
US $41.06 |
||
|
69230
|
69230
69230-60071 Handle Assy, Rear Door Outside, Rh[10.2006 -] UZJ100 *CR,SPECIAL EDITION(USA) |
69230-60071 |
from US $78.47 |
||
|
69230
|
69230
69230-60081-A3 Handle Assy, Rear Door Outside, Rh[08.2002 - 05.2005] UZJ100 WHITE PEARL CS.,070 |
69230-60081-A3 |
US $90.27 |
||
|
69230
|
69230
69230-60081-A4 Handle Assy, Rear Door Outside, Rh[05.2005 - 08.2007] UZJ100 WHITE PEARL CS.,062 |
69230-60081-A4 |
US $90.27 |
||
|
69230
|
69230
69230-60081-B4 Handle Assy, Rear Door Outside, Rh[08.2002 - 05.2005] UZJ100 DK.GRAY M.M.,1E9 |
69230-60081-B4 |
US $90.27 |
||
|
69230
|
69230
69230-60081-B5 Handle Assy, Rear Door Outside, Rh[05.2005 - 08.2007] UZJ100 SILVER ME.,1F7 |
69230-60081-B5 |
US $90.27 |
||
|
69230
|
69230
69230-60081-C0 Handle Assy, Rear Door Outside, Rh[08.2002 - 05.2005] UZJ100 BLACK,202 |
69230-60081-C0 |
from US $91.45 |
||
|
69230
|
69230
69230-60081-E4 Handle Assy, Rear Door Outside, Rh[08.2002 - 05.2005] UZJ100 BEIGE PEARL CS.,4R2 |
69230-60081-E4 |
US $90.27 |
||
|
69230
|
69230
69230-60081-G3 Handle Assy, Rear Door Outside, RhREAR DOOR OUTSIDE, RH [08.2002 - 05.2005] UZJ100 LT. GREEN M.M.,6T2 |
69230-60081-G3 |
US $90.27 |
||
|
69230
|
69230
69230-60081-G5 Handle Assy, Rear Door Outside, Rh[05.2005 - 08.2007] UZJ100 OLIVE M.M.,6T7 |
69230-60081-G5 |
US $90.27 |
||
|
69230
|
69230
69230-60081-J1 Handle Assy, Rear Door Outside, Rh[08.2002 - 05.2005] UZJ100 GRAYISH BLUE ME.,8P6 |
69230-60081-J1 |
US $90.27 |
||
|
69240
|
69240
69240-60071 Handle Assy, Rear Door Outside, Lh[10.2006 -] UZJ100 *CR,SPECIAL EDITION(USA) |
69240-60071 |
from US $86.28 |
||
|
69240
|
69240
69240-60081-A3 Handle Assy, Rear Door Outside, Lh[08.2002 - 05.2005] UZJ100 WHITE PEARL CS.,070 |
69240-60081-A3 |
US $90.27 |
||
|
69240
|
69240
69240-60081-A4 Handle Assy, Rear Door Outside, Lh[05.2005 - 08.2007] UZJ100 WHITE PEARL CS.,062 |
69240-60081-A4 |
US $90.27 |
||
|
69240
|
69240
69240-60081-B4 Handle Assy, Rear Door Outside, Lh[08.2002 - 05.2005] UZJ100 DK.GRAY M.M.,1E9 |
69240-60081-B4 |
US $90.27 |
||
|
69240
|
69240
69240-60081-B5 Handle Assy, Rear Door Outside, Lh[05.2005 - 08.2007] UZJ100 SILVER ME.,1F7 |
69240-60081-B5 |
US $90.27 |
||
|
69240
|
69240
69240-60081-C0 Handle Assy, Rear Door Outside, Lh[08.2002 - 05.2005] UZJ100 BLACK,202 |
69240-60081-C0 |
from US $95.21 |
||
|
69240
|
69240
69240-60081-E4 Handle Assy, Rear Door Outside, Lh[08.2002 - 05.2005] UZJ100 BEIGE PEARL CS.,4R2 |
69240-60081-E4 |
US $90.27 |
||
|
69240
|
69240
69240-60081-G3 Handle Assy, Rear Door Outside, LhREAR DOOR OUTSIDE, LH [08.2002 - 05.2005] UZJ100 LT. GREEN M.M.,6T2 |
69240-60081-G3 |
US $90.27 |
||
|
69240
|
69240
69240-60081-G5 Handle Assy, Rear Door Outside, Lh[05.2005 - 08.2007] UZJ100 OLIVE M.M.,6T7 |
69240-60081-G5 |
US $90.27 |
||
|
69240
|
69240
69240-60081-J1 Handle Assy, Rear Door Outside, Lh[08.2002 - 05.2005] UZJ100 GRAYISH BLUE ME.,8P6 |
69240-60081-J1 |
US $90.27 |
||
|
69241E
|
69241E
69241-60021 Pad, Front Door Outside Handle, Rh[08.2002 - 05.2005] UZJ100 |
69241-60021 |
from US $6.14 |
||
|
69242D
|
69242D
69241-60021 Pad, Front Door Outside Handle, Rh[08.2002 - 05.2005] UZJ100 |
69241-60021 |
from US $6.14 |
||
|
69277C
|
69277C
69277-60040-A0 Bezel, Front Door Inside Handle, Rh[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
69277-60040-A0 |
from US $15.87 |
||
|
69277C
|
69277C
69277-60040-B0 Bezel, Front Door Inside Handle, Rh[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
69277-60040-B0 |
US $17.92 |
||
|
69278C
|
69278C
69278-60030-A0 Bezel, Front Door Inside Handle, Lh[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
69278-60030-A0 |
from US $13.10 |
||
|
69278C
|
69278C
69278-60030-B0 Bezel, Front Door Inside Handle, Lh[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
69278-60030-B0 |
from US $13.40 |
||
|
69297C
|
69297C
69297-60010-A0 Bezel, Door Inside Handle, No.2 Rh[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
69297-60010-A0 |
from US $5.53 |
||
|
69297C
|
69297C
69297-60010-B0 Bezel, Door Inside Handle, No.2 Rh[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
69297-60010-B0 |
US $6.45 |
||
|
69298C
|
69298C
69298-60010-A0 Bezel, Door Inside Handle, No.2 Lh[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
69298-60010-A0 |
US $6.45 |
||
|
69298C
|
69298C
69298-60010-B0 Bezel, Door Inside Handle, No.2 Lh[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
69298-60010-B0 |
US $6.45 |
||
|
69330
|
69330
69050-60061
Lock Assy, Rear Door, Rh
[08.2002 - 05.2005] UZJ100 |
69050-60061 |
— | ||
| replacement | |||||
|
69330
|
69330
69050-60062 Lock Assy, Rear Door, Rh[08.2002 - 05.2005] UZJ100 |
69050-60062 |
from US $227.14 |
||
|
69330
|
69330
69050-60062 Lock Assy, Rear Door, Rh[10.2006 -] UZJ100 |
69050-60062 |
from US $227.14 |
||
|
69340
|
69340
69060-60061 Lock Assy, Rear Door, Lh[08.2002 - 05.2005] UZJ100 |
69060-60061 |
US $215.49 |
||
| replacement | |||||
|
69340
|
69340
69060-60062 Lock Assy, Rear Door, Lh[08.2002 - 05.2005] UZJ100 |
69060-60062 |
from US $209.66 |
||
|
69340
|
69340
69060-60062 Lock Assy, Rear Door, Lh[10.2006 -] UZJ100 |
69060-60062 |
from US $209.66 |
||
|
69415C
|
69415C
69415-33010 Cover, Door Lock Striker, Front[08.2002 - 05.2005] UZJ100 |
69415-33010 |
from US $3.42 |
||
|
69420
|
69420
69410-33020 Plate Assy, Front Door Lock Striker[08.2002 - 05.2005] UZJ100 |
69410-33020 |
US $27.72 |
||
|
69719A
|
69719A
69719-30010 Cushion, Door Lock Control[08.2002 - 05.2005] UZJ100 |
69719-30010 |
US $1.31 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.48 |
||
|
9014880028
|
9014880028
90148-80028 SCREW, HEX LOBULAR |
90148-80028 |
from US $0.67 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
|
9016450031
|
9016450031
90164-50031 SCREW BINDING |
90164-50031 |
from US $0.63 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.12 |
||
|
9162140612
|
9162140612
91621-40612 BOLTWWASHER |
91621-40612 |
from US $0.74 |
||
