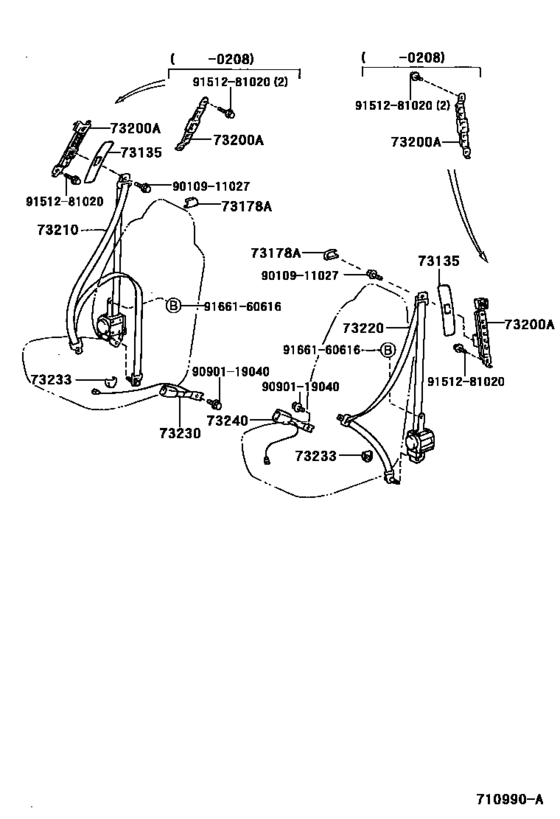

Seat Belt ([01.1998 - 01.2006] FRONT SEAT (9801-0601)) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73135
|
73135
73135-60030-A0 Cover, Shoulder Belt Anchorage Plate[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
73135-60030-A0 |
US $13.10 |
||
|
73135
|
73135
73135-60030-B0 Cover, Shoulder Belt Anchorage Plate[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
73135-60030-B0 |
US $13.10 |
||
|
73178A
|
73178A
73178-60020-A0
Cap, Seat Belt Anchor Cover
[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
73178-60020-A0 |
— | ||
| replacement | |||||
|
73178A
|
73178A
73178-60020-B0 Cap, Seat Belt Anchor Cover (gray)[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
73178-60020-B0 |
from US $2.91 |
||
|
73178A
|
73178A
73178-60020-B0 Cap, Seat Belt Anchor Cover (gray)[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
73178-60020-B0 |
from US $2.91 |
||
|
73200A
|
73200A
73290-60010
Adjuster Assy, Front Shoulder Belt Anchor
[08.2002 - 05.2005] UZJ100 REAR NO.1 SEAT |
73290-60010 |
— | ||
|
73200A
|
73200A
73290-60020 Adjuster Assy, Front Shoulder Belt Anchor[08.2002 - 05.2005] UZJ100 FRONT SEAT |
73290-60020 |
US $71.34 |
||
|
73210
|
73210
73210-60452-A1 Belt Assy, Front Seat Outer, RhFRONT SEAT OUTER, RH [08.2002 - 01.2004] UZJ100 IVORY,TRIM0# |
73210-60452-A1 |
US $511.06 |
||
| replacement | |||||
|
73210
|
73210
73210-60453-A1 Belt Assy, Front Seat Outer, RhFRONT SEAT OUTER, RH [08.2002 - 01.2004] UZJ100 IVORY,TRIM0# |
73210-60453-A1 |
US $511.06 |
||
|
73210
|
73210
73210-60452-B1 Belt Assy, Front Seat Outer, RhFRONT SEAT OUTER, RH [08.2002 - 01.2004] UZJ100 GRAY,TRIM1# |
73210-60452-B1 |
US $511.06 |
||
| replacement | |||||
|
73210
|
73210
73210-60453-B1 Belt Assy, Front Seat Outer, RhFRONT SEAT OUTER, RH [08.2002 - 01.2004] UZJ100 GRAY,TRIM1# |
73210-60453-B1 |
US $511.06 |
||
|
73210
|
73210
73210-60453-A1 Belt Assy, Front Seat Outer, RhFRONT SEAT OUTER, RH [02.2004 - 08.2004] UZJ100 IVORY,TRIM0# |
73210-60453-A1 |
US $511.06 |
||
|
73210
|
73210
73210-60453-B1 Belt Assy, Front Seat Outer, RhFRONT SEAT OUTER, RH [02.2004 - 08.2004] UZJ100 GRAY,TRIM1# |
73210-60453-B1 |
US $511.06 |
||
|
73210
|
73210
73210-60580-A0
Belt Assy, Front Seat Outer, Rh
[01.2006 - 08.2007] UZJ100 IVORY,TRIM0# |
73210-60580-A0 |
— | ||
|
73210
|
73210
73210-60580-B0
Belt Assy, Front Seat Outer, Rh
[01.2006 - 08.2007] UZJ100 GRAY,TRIM1# |
73210-60580-B0 |
— | ||
|
73220
|
73220
73220-60323-A1 Belt Assy, Front Seat Outer, Lh[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
73220-60323-A1 |
US $496.20 |
||
|
73220
|
73220
73220-60323-B1 Belt Assy, Front Seat Outer, Lh[08.2002 - 05.2005] UZJ100 GRAY,TRIM1# |
73220-60323-B1 |
US $496.20 |
||
|
73230
|
73230
73240-60300-A0
Belt Assy, Front Seat Inner, Rh
[01.2006 - 08.2007] UZJ100 IVORY,TRIM0# |
73240-60300-A0 |
— | ||
| replacement | |||||
|
73230
|
73230
73240-60300-B0
Belt Assy, Front Seat Inner, Rh
[01.2006 - 08.2007] UZJ100 IVORY,TRIM0# |
73240-60300-B0 |
— | ||
|
73230
|
73230
73240-60300-B0
Belt Assy, Front Seat Inner, Rh
[01.2006 - 08.2007] UZJ100 STONE,TRIM1# |
73240-60300-B0 |
— | ||
|
73230
|
73230
73240-60390-A0
Belt Assy, Front Seat Inner, Lh
[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
73240-60390-A0 |
— | ||
| replacement | |||||
|
73230
|
73230
73240-60390-B0 Belt Assy, Front Seat Inner, Lh[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
73240-60390-B0 |
US $77.17 |
||
|
73230
|
73230
73240-60390-B0 Belt Assy, Front Seat Inner, Lh[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
73240-60390-B0 |
US $77.17 |
||
|
73233
|
73233
73233-33010-A1 Cap, Seat Belt Anchor Cover[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
73233-33010-A1 |
US $4.05 |
||
|
73233
|
73233
73233-33010-B6 Cover, Lap Belt Outer Anchor[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
73233-33010-B6 |
US $6.81 |
||
|
73240
|
73240
73230-60380-A0
Belt Assy, Front Seat Inner, Lh
[01.2006 - 08.2007] UZJ100 IVORY,TRIM0# |
73230-60380-A0 |
— | ||
|
73240
|
73240
73230-60380-B0
Belt Assy, Front Seat Inner, Lh
[01.2006 - 08.2007] UZJ100 STONE,TRIM1# |
73230-60380-B0 |
— | ||
|
73240
|
73240
73230-60460-A0
Belt Assy, Front Seat Inner, Rh
[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
73230-60460-A0 |
— | ||
| replacement | |||||
|
73240
|
73240
73230-60460-B0 Belt Assy, Front Seat Inner, Rh[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
73230-60460-B0 |
US $74.95 |
||
|
73240
|
73240
73230-60460-B0 Belt Assy, Front Seat Inner, Rh[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
73230-60460-B0 |
US $74.95 |
||
|
9010911027
|
9010911027
90109-11027 BOLT |
90109-11027 |
US $3.94 |
||
|
9090119040
|
9090119040
90901-19040 BOLT WWASHER |
90901-19040 |
US $2.15 |
||
| replacement | |||||
|
9090119040
|
9090119040
90084-11055 New Genuine Part |
90084-11055 |
US $6.96 |
||
|
9151281020
|
9151281020
91512-81020 BOLT FLANGE |
91512-81020 |
US $1.31 |
||
|
9166160616
|
9166160616
91661-60616 BOLT |
91661-60616 |
from US $0.68 |
||
