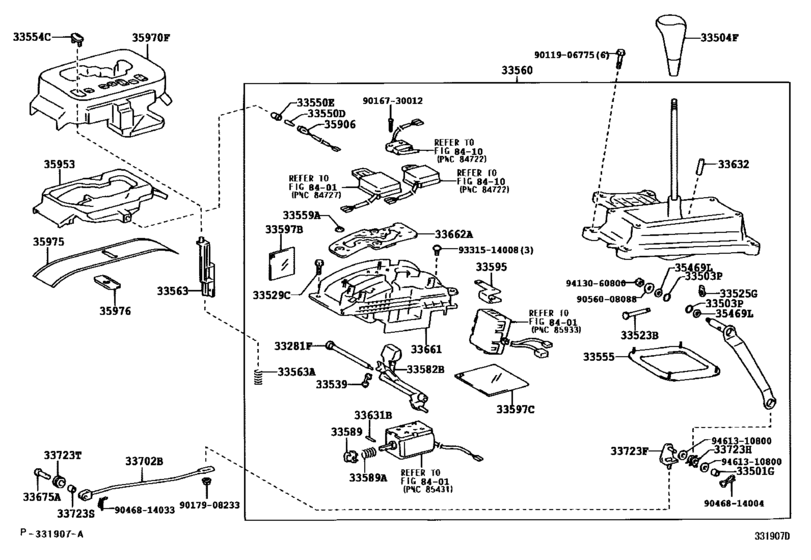

Shift Lever & Retainer ([08.2002 - 05.2005] (0208-0505)) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33281F
|
33281F
33281-50010 Pin, Lever Lock (For Floor Shift)[08.2002 - 05.2005] UZJ100 |
33281-50010 |
US $2.77 |
||
|
33501G
|
33501G
90560-08091 Bush (For Floor Shift Control Shaft)[08.2002 - 05.2005] UZJ100 |
90560-08091 |
US $1.25 |
||
|
33503P
|
33503P
96711-24014 Ring, O(For Shift Lever)[08.2002 - 05.2005] UZJ100 |
96711-24014 |
US $2.62 |
||
|
33504F
|
33504F
33504-60190-C0 Knob Sub-Assy, Shift Lever[08.2002 - 05.2005] UZJ100 BLACK,TRIM0#,1# |
33504-60190-C0 |
US $293.53 |
||
|
33504F
|
33504F
33504-60210-C0 Knob Sub-Assy, Shift Lever[10.2006 - 07.2007] UZJ100 SPECIAL EDITION(USA),BLACK,TRIM1# |
33504-60210-C0 |
US $302.85 |
||
|
33523B
|
33523B
90249-05094 Pin, Shift Lever (For Floor Shift)[08.2002 - 05.2005] UZJ100 |
90249-05094 |
US $1.05 |
||
|
33525G
|
33525G
33525-50010 Ring, Shift Lever[08.2002 - 05.2005] UZJ100 |
33525-50010 |
US $2.62 |
||
|
33529C
|
33529C
33529-50010 Bolt, Shift Lever[08.2002 - 05.2005] UZJ100 |
33529-50010 |
US $1.02 |
||
|
33539
|
33539
33539-14010 Cushion, Shift Lever Anti-Rattle[08.2002 - 05.2005] UZJ100 |
33539-14010 |
US $0.86 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[08.2002 - 05.2005] UZJ100 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.01 |
||
|
33550E
|
33550E
90339-04049 Cap, Position Indicator Lamp[08.2002 - 05.2005] UZJ100 |
90339-04049 |
from US $1.50 |
||
|
33554C
|
33554C
33554-60130 Cover, Shift Lock Release ButtonSHIFT LOCK RELEASE BUTTON [08.2002 - 05.2005] UZJ100 |
33554-60130 |
from US $5.42 |
||
|
33555
|
33555
33555-22170 Boot, Shift Lever[08.2002 - 05.2005] UZJ100 |
33555-22170 |
US $4.22 |
||
|
33559A
|
33559A
33559-50010 Nut, Shift Lever, No.1[08.2002 - 05.2005] UZJ100 |
33559-50010 |
US $1.28 |
||
|
33560
|
33560
33560-60020
Unit Assy, Shift Lock Control
[08.2002 - 05.2005] UZJ100 |
33560-60020 |
— | ||
|
33563
|
33563
33563-60080 Button, Shift Lock ReleaseSHIFT LOCK RELEASE [08.2002 - 05.2005] UZJ100 |
33563-60080 |
US $6.29 |
||
|
33563A
|
33563A
90501-05035 Spring, Compression (For Shift Lock Release Button)[08.2002 - 05.2005] UZJ100 |
90501-05035 |
US $1.31 |
||
|
33582B
|
33582B
33582-53010 Stopper, Shift Lock Plate (For Floor Shift)SHIFT LOCK PLATE (FOR FLOOR SHIFT) [08.2002 - 05.2005] UZJ100 |
33582-53010 |
US $8.44 |
||
|
33589
|
33589
33589-24010 Link, Shift Lock Solenoid[08.2002 - 05.2005] UZJ100 |
33589-24010 |
US $3.06 |
||
|
33589A
|
33589A
90501-06086 Spring, Compression (For Shift Lock Release Button)[08.2002 - 05.2005] UZJ100 |
90501-06086 |
US $0.67 |
||
|
33595
|
33595
33595-53010 Bracket, Shift Lock ComputerSHIFT LOCK COMPUTER [08.2002 - 05.2005] UZJ100 |
33595-53010 |
US $4.95 |
||
|
33597B
|
33597B
33597-53010 Seat, Shift Lever, No.1 (For Floor Shift)[08.2002 - 05.2005] UZJ100 |
33597-53010 |
US $3.20 |
||
|
33597C
|
33597C
33597-53020 Seat, Shift Lever No.2 (For Floor Shift)[08.2002 - 05.2005] UZJ100 |
33597-53020 |
US $3.20 |
||
|
33631B
|
33631B
90256-02001 Pin, Slotted Spring (For Detent Rod)[08.2002 - 05.2005] UZJ100 |
90256-02001 |
US $1.60 |
||
|
33632
|
33632
33632-50010 Rod, Detent, No.2[08.2002 - 05.2005] UZJ100 |
33632-50010 |
US $2.33 |
||
|
33661
|
33661
33661-53040
Housing, Shift Lever Guide
[08.2002 - 01.2003] UZJ100 |
33661-53040 |
— | ||
|
33661
|
33661
33661-60020 Housing, Shift Lever GuideSHIFT LEVER GUIDE [01.2003 - 05.2005] UZJ100 |
33661-60020 |
US $55.62 |
||
|
33662A
|
33662A
33662-53020
Cushion, Shift Lever Guide
[08.2002 - 05.2005] UZJ100 |
33662-53020 |
— | ||
|
33675A
|
33675A
90240-08054 Pin, W/hole (For Transmission Control Rod)[08.2002 - 05.2005] UZJ100 |
90240-08054 |
from US $1.79 |
||
|
33702B
|
33702B
33702-60090 Rod Sub-Assy, Gear Shifting, No.1 (For Floor Shift)[08.2002 - 05.2005] UZJ100 |
33702-60090 |
US $19.80 |
||
|
33723F
|
33723F
33723-22020 Swivel, Connecting Rod (For Floor Shift)[08.2002 - 05.2005] UZJ100 |
33723-22020 |
US $7.34 |
||
|
33723H
|
33723H
33572-30050 Bush (For Floor Shift Control Shaft)[08.2002 - 05.2005] UZJ100 |
33572-30050 |
US $2.97 |
||
|
33723S
|
33723S
90389-08005 Bushing(For Gear Selecting Rod)[08.2002 - 05.2005] UZJ100 |
90389-08005 |
from US $1.73 |
||
|
33723T
|
33723T
90480-17177 Grommet (For Transmission Control Rod)[08.2002 - 05.2005] UZJ100 |
90480-17177 |
from US $2.03 |
||
|
35469L
|
35469L
35469-50010 Spacer, Shift Lever[08.2002 - 05.2005] UZJ100 |
35469-50010 |
US $2.62 |
||
|
35906
|
35906
35906-60130 Wire Sub-Assy, Indicator Lamp[08.2002 - 05.2005] UZJ100 |
35906-60130 |
US $5.24 |
||
|
35953
|
35953
35953-60020 Guide, Position Indicator LightPOSITION INDICATOR LIGHT [08.2002 - 05.2005] UZJ100 |
35953-60020 |
US $39.49 |
||
|
35970F
|
35970F
35970-60020 Housing Assy, Position IndicatorPOSITION INDICATOR [08.2002 - 05.2005] UZJ100 |
35970-60020 |
from US $164.56 |
||
|
35975
|
35975
35975-30230 Cover, Slide (For Position Indicator)[08.2002 - 05.2005] UZJ100 |
35975-30230 |
US $23.24 |
||
|
35976
|
35976
35976-22060 Cover, Slide, No.2 (For Position Indicator)[08.2002 - 05.2005] UZJ100 |
35976-22060 |
from US $4.94 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.05 |
||
|
9016730012
|
9016730012
90167-30012 New Genuine Part |
90167-30012 |
US $1.46 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
from US $1.27 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.65 |
||
|
9046814033
|
9046814033
90468-14033 CLIP |
90468-14033 |
from US $0.87 |
||
|
9056008088
|
9056008088
90560-08088 New Genuine Part |
90560-08088 |
US $1.75 |
||
|
9331514008
|
9331514008
93315-14008 New Genuine Part |
93315-14008 |
US $1.10 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.67 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.67 |
||
