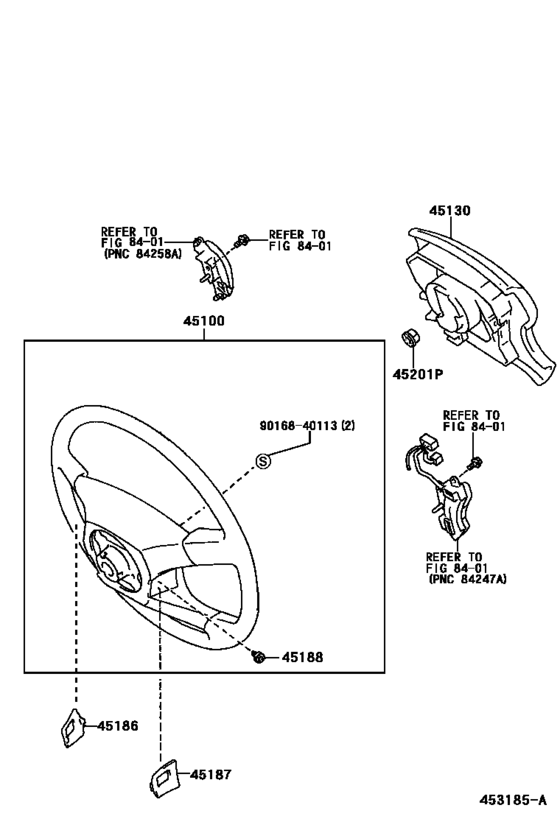

Steering Wheel ([08.2002 - ] 4-SPOKE (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-60500-B0 Wheel Assy, Steering[08.2002 - 05.2005] UZJ100 4-SPOKE,WOOD&LEATHER,DK.GRAY,TRIM1# |
45100-60500-B0 |
US $2,067.52 |
||
| replacement | |||||
|
45100
|
45100
45100-60500-C0 Wheel Assy, Steering[08.2002 - 05.2005] UZJ100 4-SPOKE,WOOD&LEATHER,DK.GRAY,TRIM1# |
45100-60500-C0 |
US $1,703.52 |
||
|
45100
|
45100
45100-60500-E0 Wheel Assy, Steering[08.2002 - 05.2005] UZJ100 4-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0# |
45100-60500-E0 |
US $1,991.81 |
||
|
45100
|
45100
45100-60590-B0 Wheel Assy, Steering[10.2006 - 07.2007] UZJ100 4-SPOKE,WOOD&LEATHER,SPECIAL EDITION(USA),DK.GRAY,TRIM1# |
45100-60590-B0 |
US $2,067.52 |
||
|
45130
|
45130
45130-60330-B0 Button Assy, HornHORN [08.2002 - 05.2005] UZJ100 DK.GRAY,TRIM1# |
45130-60330-B0 |
US $1,039.58 |
||
| replacement | |||||
|
45130
|
45130
45130-60331-B0 Button Assy, HornHORN [08.2002 - 05.2005] UZJ100 DK.GRAY,TRIM1# |
45130-60331-B0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60330-E0 Button Assy, HornHORN [08.2002 - 05.2005] UZJ100 SANDAL WOOD,TRIM0# |
45130-60330-E0 |
US $1,039.58 |
||
| replacement | |||||
|
45130
|
45130
45130-60331-E0 Button Assy, HornHORN [08.2002 - 05.2005] UZJ100 SANDAL WOOD,TRIM0# |
45130-60331-E0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60331-B0 Button Assy, HornHORN [08.2005 - 08.2007] UZJ100 W(EMV & NAVIGATION SYSTEM),DK.GRAY,TRIM1# |
45130-60331-B0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60331-E0 Button Assy, HornHORN [08.2005 - 08.2007] UZJ100 W(EMV & NAVIGATION SYSTEM),SANDAL WOOD,TRIM0# |
45130-60331-E0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60350-B0
Button Assy, Horn
[01.2006 - 08.2007] UZJ100 DK.GRAY,TRIM1# |
45130-60350-B0 |
— | ||
|
45130
|
45130
45130-60350-E0
Button Assy, Horn
[01.2006 - 08.2007] UZJ100 SANDAL WOOD,TRIM0# |
45130-60350-E0 |
— | ||
|
45186
|
45186
45186-58020-B0 Cover, Steering Wheel, Lower No.2[08.2002 - 05.2005] UZJ100 DK.GRAY,TRIM1# |
45186-58020-B0 |
from US $3.82 |
||
|
45186
|
45186
45186-58020-E1 Cover, Steering Wheel, Lower No.2[08.2002 - 05.2005] UZJ100 SANDAL WOOD,TRIM0# |
45186-58020-E1 |
US $5.73 |
||
| replacement | |||||
|
45186
|
45186
45186-58020-B0 Cover, Steering Wheel, Lower No.2[08.2002 - 05.2005] UZJ100 SANDAL WOOD,TRIM0# |
45186-58020-B0 |
from US $3.82 |
||
|
45187
|
45187
45187-58010-B0 Cover, Steering Wheel, Lower No.3[08.2002 - 05.2005] UZJ100 DK.GRAY,TRIM1# |
45187-58010-B0 |
US $3.76 |
||
|
45187
|
45187
45187-58010-E1
Cover, Steering Wheel, Lower No.3
[08.2002 - 05.2005] UZJ100 SANDAL WOOD,TRIM0# |
45187-58010-E1 |
— | ||
| replacement | |||||
|
45187
|
45187
45187-58010-B0 Cover, Steering Wheel, Lower No.3[08.2002 - 05.2005] UZJ100 SANDAL WOOD,TRIM0# |
45187-58010-B0 |
US $3.76 |
||
|
45188
|
45188
45188-60010 Screw, Steering Wheel Pad Attaching[08.2002 - 05.2005] UZJ100 L=18 |
45188-60010 |
US $2.87 |
||
|
45201P
|
45201P
90179-12071 Nut, Steering Wheel Set[08.2002 - 05.2005] UZJ100 |
90179-12071 |
from US $1.48 |
||
|
9016840113
|
9016840113
90168-40113 Screw, Steering Wheel Pad Attaching |
90168-40113 |
US $1.08 |
||
