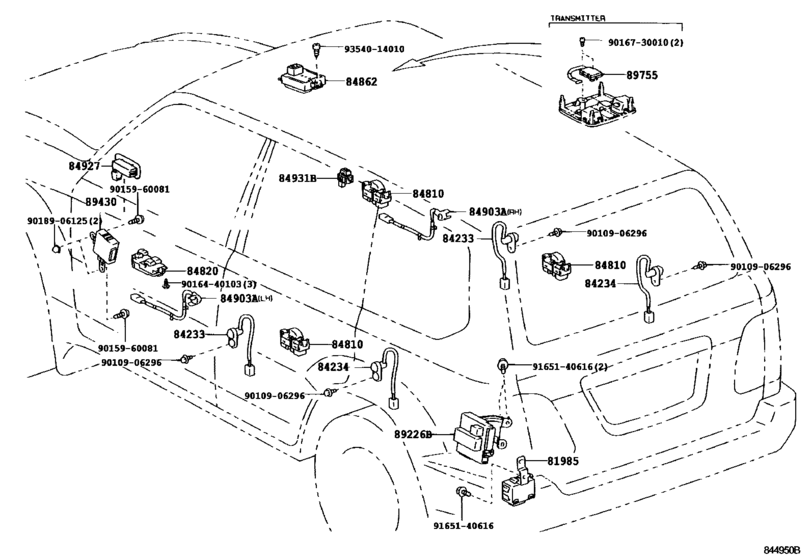

Switch & Relay & Computer ([08.2002 - ] DOOR & ROOF (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81985
|
81985
81985-60010
Relay, Towing Converter
[08.2002 - 05.2005] UZJ100 |
81985-60010 |
— | ||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[08.2002 - 05.2005] UZJ100 |
84231-60070 |
from US $11.83 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[08.2002 - 05.2005] UZJ100 |
84231-60070 |
from US $11.83 |
||
|
84810
|
84810
84030-60060 Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.2002 - 05.2005] UZJ100 FRONT |
84030-60060 |
from US $178.16 |
||
|
84810
|
84810
84030-60100 Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.2002 - 05.2005] UZJ100 REAR |
84030-60100 |
US $165.98 |
||
|
84820
|
84820
84040-60090 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.2002 - 09.2004] UZJ100 |
84040-60090 |
US $413.50 |
||
| replacement | |||||
|
84820
|
84820
84040-60091 Master Switch Assy, Power Window Regulator[08.2002 - 09.2004] UZJ100 |
84040-60091 |
from US $446.99 |
||
|
84820
|
84820
84040-60091 Master Switch Assy, Power Window Regulator[09.2004 - 05.2005] UZJ100 |
84040-60091 |
from US $446.99 |
||
|
84862
|
84862
84862-60020-A1
Switch, Slide Roof Motor
[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
84862-60020-A1 |
— | ||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
84862-60021-B0 |
US $82.12 |
||
|
84862
|
84862
84862-60020-B1 Switch, Slide Roof Motor[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
84862-60020-B1 |
US $84.45 |
||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
84862-60021-B0 |
US $82.12 |
||
|
84862
|
84862
84862-60021-A1
Switch, Slide Roof Motor
[10.2005 - 08.2007] UZJ100 IVORY,TRIM0# |
84862-60021-A1 |
— | ||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[10.2005 - 08.2007] UZJ100 IVORY,TRIM0# |
84862-60021-B0 |
US $82.12 |
||
|
84862
|
84862
84862-60021-B1 Switch, Slide Roof Motor[10.2005 - 08.2007] UZJ100 STONE,TRIM1# |
84862-60021-B1 |
US $84.45 |
||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[10.2005 - 08.2007] UZJ100 STONE,TRIM1# |
84862-60021-B0 |
US $82.12 |
||
|
84903A
|
84903A
84903-60060 Switch Sub-Assy, Door Unlock[08.2002 - 05.2005] UZJ100 LH |
84903-60060 |
US $60.28 |
||
|
84903A
|
84903A
84903-60070 Switch Sub-Assy, Door Unlock[08.2002 - 05.2005] UZJ100 RH |
84903-60070 |
US $62.03 |
||
|
84903A
|
84903A
84903-60080 Switch Sub-Assy, Door Unlock[08.2002 - 05.2005] UZJ100 BACK DOOR |
84903-60080 |
US $43.51 |
||
|
84927
|
84927
84927-60020-B1
Switch, Seat Memory
[08.2002 - 05.2005] UZJ100 DK.GRAY,TRIM1# |
84927-60020-B1 |
— | ||
|
84927
|
84927
84927-60020-E1 Switch, Seat MemorySEAT MEMORY [08.2002 - 05.2005] UZJ100 SANDAL WOOD,TRIM0# |
84927-60020-E1 |
US $87.36 |
||
| replacement | |||||
|
84927
|
84927
84927-60020-B1
Switch, Seat Memory
[08.2002 - 05.2005] UZJ100 SANDAL WOOD,TRIM0# |
84927-60020-B1 |
— | ||
|
84931B
|
84931B
84930-24020 Switch Assy, Door ControlDOOR CONTROL [08.2002 - 09.2004] UZJ100 |
84930-24020 |
US $61.01 |
||
|
84931B
|
84931B
84930-48030 Switch Assy, Door Control[09.2004 - 05.2005] UZJ100 |
84930-48030 |
US $52.42 |
||
|
89226B
|
89226B
89226-60020 Computer, Multiplex Network Body, No.2[08.2002 - 05.2005] UZJ100 |
89226-60020 |
US $329.06 |
||
|
89430
|
89430
89430-60040 Computer Assy, Outer Mirror ControlOUTER MIRROR CONTROL [08.2002 - 05.2005] UZJ100 |
89430-60040 |
US $257.71 |
||
| replacement | |||||
|
89430
|
89430
89430-60041
Computer Assy, Outer Mirror Control
[08.2002 - 05.2005] UZJ100 |
89430-60041 |
— | ||
|
89755
|
89755
89755-0W070 Transmitter, Garage Door OpenerGARAGE DOOR OPENER [08.2002 - 05.2005] UZJ100 |
89755-0W070 |
US $1,557.92 |
||
|
9010906296
|
9010906296
90109-06296 BOLT |
90109-06296 |
US $1.61 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.25 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.72 |
||
|
9016730010
|
9016730010
90167-30010 SCREW PAN TAPPING |
90167-30010 |
US $1.08 |
||
|
9018906125
|
9018906125
90189-06125 NUT |
90189-06125 |
US $2.33 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.89 |
||
