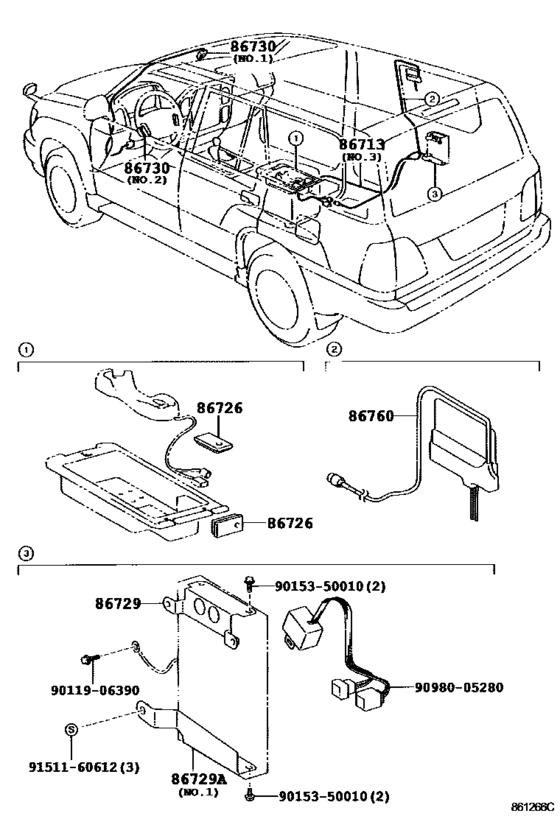

Telephone & Mayday ([08.2000 - 05.2005] (0008-0505)) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86713
|
86713
86713-30020 Wire, Telephone ComputerTELEPHONE COMPUTER [08.2002 - 09.2002] UZJ100 NO.3 |
86713-30020 |
US $7.28 |
||
|
86713
|
86713
86713-60020
Wire, Telephone Computer
[08.2002 - 05.2005] UZJ100 NO.1 |
86713-60020 |
— | ||
|
86713
|
86713
86713-60040
Wire, Telephone Computer
[11.2002 - 01.2003] UZJ100 NO.2 |
86713-60040 |
— | ||
|
86713
|
86713
86713-60050
Wire, Telephone Computer
[05.2005 -] UZJ100 |
86713-60050 |
— | ||
|
86726
|
86726
86726-30190 Cover, MobilephoneMOBILEPHONE [08.2002 - 05.2005] UZJ100 |
86726-30190 |
US $5.82 |
||
|
86729
|
86729
86729-60020
Bracket, Mobilephone
[08.2002 - 05.2005] UZJ100 |
86729-60020 |
— | ||
|
86729A
|
86729A
86729-60030
Bracket, Mobilephone, No.1
[08.2002 - 05.2005] UZJ100 NO.1 |
86729-60030 |
— | ||
|
86729A
|
86729A
86729-60060
Bracket, Mobilephone, No.1
[08.2002 - 05.2005] UZJ100 NO.2 |
86729-60060 |
— | ||
|
86729A
|
86729A
86729-60100
Bracket, Mobilephone, No.1
[05.2005 -] UZJ100 |
86729-60100 |
— | ||
|
86760
|
86760
86760-48010
Antenna Assy, Telephone
[08.2002 - 05.2005] UZJ100 |
86760-48010 |
— | ||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9098005280
|
9098005280
90980-05280 Filter, Noise |
90980-05280 |
US $11.79 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.97 |
