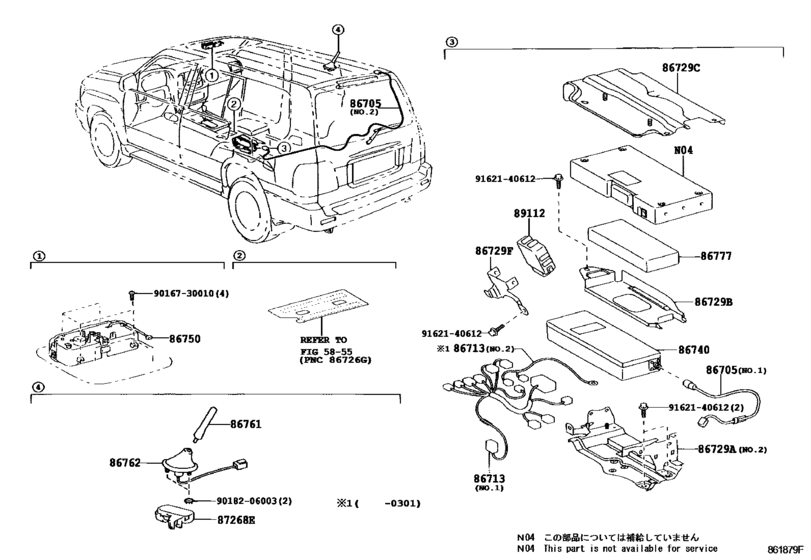

Telephone & Mayday ([08.2002 - 05.2005] MAYDAY SYSTEM (0208-0505)) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86705
|
86705
86705-60050
Cord Sub-Assy, Telephone Antenna
[08.2002 - 01.2004] UZJ100 NO.1 |
86705-60050 |
— | ||
|
86705
|
86705
86705-60060
Cord Sub-Assy, Telephone Antenna
[08.2002 - 01.2004] UZJ100 NO.2 |
86705-60060 |
— | ||
|
86705
|
86705
86705-60110
Cord Sub-Assy, Telephone Antenna
[05.2005 -] UZJ100 |
86705-60110 |
— | ||
|
86713
|
86713
86713-30020 Wire, Telephone ComputerTELEPHONE COMPUTER [08.2002 - 09.2002] UZJ100 NO.3 |
86713-30020 |
US $7.28 |
||
|
86713
|
86713
86713-60020
Wire, Telephone Computer
[08.2002 - 05.2005] UZJ100 NO.1 |
86713-60020 |
— | ||
|
86713
|
86713
86713-60040
Wire, Telephone Computer
[11.2002 - 01.2003] UZJ100 NO.2 |
86713-60040 |
— | ||
|
86713
|
86713
86713-60050
Wire, Telephone Computer
[05.2005 -] UZJ100 |
86713-60050 |
— | ||
|
86729A
|
86729A
86729-60030
Bracket, Mobilephone, No.1
[08.2002 - 05.2005] UZJ100 NO.1 |
86729-60030 |
— | ||
|
86729A
|
86729A
86729-60060
Bracket, Mobilephone, No.1
[08.2002 - 05.2005] UZJ100 NO.2 |
86729-60060 |
— | ||
|
86729A
|
86729A
86729-60100
Bracket, Mobilephone, No.1
[05.2005 -] UZJ100 |
86729-60100 |
— | ||
|
86729B
|
86729B
86729-60070 Bracket, Mobilephone, No.2MOBILEPHONE, NO.2 [08.2002 - 05.2005] UZJ100 |
86729-60070 |
US $19.66 |
||
|
86729B
|
86729B
86729-60110
Bracket, Mobilephone, No.2
[05.2005 -] UZJ100 |
86729-60110 |
— | ||
|
86729C
|
86729C
86729-60080
Bracket, Mobilephone, No.3
[08.2002 - 05.2005] UZJ100 |
86729-60080 |
— | ||
|
86729C
|
86729C
86729-60120
Bracket, Mobilephone, No.3
[05.2005 -] UZJ100 |
86729-60120 |
— | ||
|
86729F
|
86729F
86729-60090 Bracket, Mobilephone, No.4MOBILEPHONE, NO.4 [08.2002 - 05.2005] UZJ100 |
86729-60090 |
US $10.05 |
||
|
86740
|
86740
86740-0W100
Transceiver Assy, Telephone
[08.2002 - 05.2005] UZJ100 |
86740-0W100 |
— | ||
|
86750
|
86750
86750-60020-A0
Switch Assy, Telephone
[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
86750-60020-A0 |
— | ||
|
86750
|
86750
86750-60020-B0
Switch Assy, Telephone
[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
86750-60020-B0 |
— | ||
|
86750
|
86750
86750-60030-A0
Switch Assy, Telephone
[05.2005 - 08.2007] UZJ100 IVORY,TRIM0# |
86750-60030-A0 |
— | ||
| replacement | |||||
|
86750
|
86750
86750-60030-B0
Switch Assy, Telephone
[05.2005 - 08.2007] UZJ100 IVORY,TRIM0# |
86750-60030-B0 |
— | ||
|
86750
|
86750
86750-60030-B0
Switch Assy, Telephone
[05.2005 - 08.2007] UZJ100 STONE,TRIM1# |
86750-60030-B0 |
— | ||
|
86761
|
86761
86761-50030 Rod, Telephone Antenna[08.2002 - 10.2002] UZJ100 |
86761-50030 |
US $69.89 |
||
| replacement | |||||
|
86761
|
86761
86761-50031 Rod, Telephone Antenna[08.2002 - 10.2002] UZJ100 |
86761-50031 |
from US $85.28 |
||
|
86761
|
86761
86761-50031 Rod, Telephone Antenna[10.2002 - 05.2005] UZJ100 |
86761-50031 |
from US $85.28 |
||
|
86762
|
86762
86762-50030 Base, Telephone Antenna[08.2002 - 10.2002] UZJ100 |
86762-50030 |
US $136.86 |
||
| replacement | |||||
|
86762
|
86762
86762-50031 Base, Telephone Antenna[08.2002 - 10.2002] UZJ100 |
86762-50031 |
US $136.86 |
||
|
86762
|
86762
86762-50031 Base, Telephone Antenna[10.2002 - 05.2005] UZJ100 |
86762-50031 |
US $136.86 |
||
|
86762
|
86762
86762-60030
Base, Telephone Antenna
[05.2005 -] UZJ100 |
86762-60030 |
— | ||
|
86777
|
86777
86777-0W030
Battery, Mayday
[08.2002 - 05.2005] UZJ100 |
86777-0W030 |
— | ||
|
86777
|
86777
86777-0W040
Battery, Mayday
[05.2005 -] UZJ100 |
86777-0W040 |
— | ||
|
87268E
|
87268E
87268-50010 Protector, Telephone Antenna[08.2002 - 10.2002] UZJ100 |
87268-50010 |
US $5.82 |
||
| replacement | |||||
|
87268E
|
87268E
87268-50011 Protector, Telephone Antenna[08.2002 - 10.2002] UZJ100 |
87268-50011 |
US $4.66 |
||
|
87268E
|
87268E
87268-50011 Protector, Telephone Antenna[10.2002 - 05.2005] UZJ100 |
87268-50011 |
US $4.66 |
||
|
89112
|
89112
89112-50011 Computer, Bus Buffer[08.2002 - 08.2003] UZJ100 |
89112-50011 |
US $276.64 |
||
| replacement | |||||
|
89112
|
89112
89112-50020 Computer, Bus Buffer[08.2002 - 08.2003] UZJ100 |
89112-50020 |
US $276.64 |
||
|
89112
|
89112
89112-50020 Computer, Bus Buffer[08.2003 - 05.2005] UZJ100 |
89112-50020 |
US $276.64 |
||
|
9016730010
|
9016730010
90167-30010 SCREW PAN TAPPING |
90167-30010 |
US $1.08 |
||
|
9018206003
|
9018206003
90182-06003 New Genuine Part |
90182-06003 |
US $1.16 |
||
|
9162140612
|
9162140612
91621-40612 BOLTWWASHER |
91621-40612 |
from US $0.74 |
||
