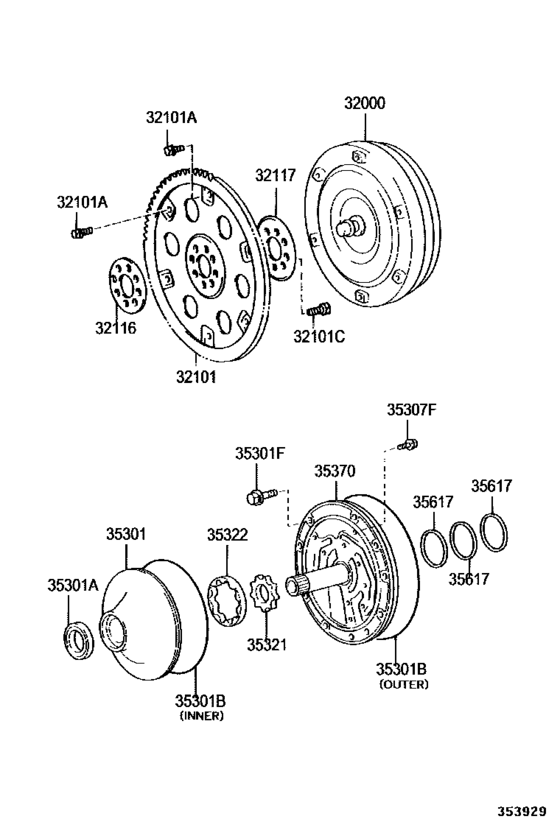

Torque Converter, Front Oil Pump & Chain (Atm) ([08.2002 - ] A750F (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-60250 Converter Assy, Torque[08.2002 - 08.2003] UZJ100 |
32000-60250 |
US $1,936.48 |
||
| replacement | |||||
|
32000
|
32000
32000-60280 Converter Assy, Torque[08.2002 - 08.2003] UZJ100 |
32000-60280 |
US $1,616.16 |
||
|
32000
|
32000
32000-60280 Converter Assy, Torque[08.2003 - 05.2005] UZJ100 |
32000-60280 |
US $1,616.16 |
||
|
32101
|
32101
32101-50010 Gear Sub-Assy, Drive Plate & Ring[08.2002 - 05.2005] UZJ100 |
32101-50010 |
from US $178.83 |
||
|
32101A
|
32101A
90119-09026 Bolt(For Drive Plate & Torque Converter Setting)[08.2002 - 05.2005] UZJ100 *9-1.25PX12.8-9,GREEN OR BLACK |
90119-09026 |
from US $0.82 |
||
|
32101A
|
32101A
90119-09027 Bolt(For Drive Plate & Torque Converter Setting)[08.2002 - 05.2005] UZJ100 *9-1.25PX12.8-8.8,YELLOW OR SILVER |
90119-09027 |
from US $0.76 |
||
|
32101C
|
32101C
90910-02129 Bolt, Flywheel Setting[08.2002 - 05.2005] UZJ100 *10-1.25PX23-16 |
90910-02129 |
from US $1.82 |
||
|
32116
|
32116
32116-50010 Spacer, Drive Plate, Front[08.2002 - 05.2005] UZJ100 |
32116-50010 |
US $18.17 |
||
|
32117
|
32117
32117-50010 Spacer, Drive Plate, Rear[08.2002 - 05.2005] UZJ100 |
32117-50010 |
US $17.82 |
||
|
35301
|
35301
35301-60030 Body Sub-Assy, Front Oil Pump[08.2002 - 05.2005] UZJ100 |
35301-60030 |
from US $169.48 |
||
|
35301A
|
35301A
90311-38083 Seal, Oil (For Front Oil Pump)[08.2002 - 05.2005] UZJ100 |
90311-38083 |
from US $5.20 |
||
|
35301B
|
35301B
90301-99139 Ring, O (For Front Oil Pump Body)[08.2002 - 05.2005] UZJ100 OUTER |
90301-99139 |
from US $5.42 |
||
|
35301B
|
35301B
90301-99148 Ring, O (For Front Oil Pump Body)[08.2002 - 05.2005] UZJ100 INNER |
90301-99148 |
from US $2.75 |
||
|
35301F
|
35301F
90105-08451 Bolt (For Front Oil Pump Setting)[10.2006 -] UZJ100 *8-1.25PX40-30 |
90105-08451 |
US $0.79 |
||
|
35301F
|
35301F
91511-K0840 Bolt(For Crankshaft Bearing Cap Set)[08.2002 - 05.2005] UZJ100 *8-1.25PX40-30 |
91511-K0840 |
US $3.05 |
||
|
35307F
|
35307F
90148-60027 Bolt (For Stator Shaft)[08.2002 - 07.2003] UZJ100 |
90148-60027 |
US $0.73 |
||
|
35307F
|
35307F
90148-60079 Bolt (For Stator Shaft)[07.2003 - 05.2005] UZJ100 |
90148-60079 |
from US $0.52 |
||
|
35321
|
35321
35321-50010 Gear, Front Oil Pump Drive[09.2003 - 05.2005] UZJ100 T=10.736-10.742 |
35321-50010 |
US $38.44 |
||
|
35321
|
35321
35321-50020 Gear, Front Oil Pump Drive[08.2003 - 05.2005] UZJ100 T=10.743-10.749 |
35321-50020 |
US $39.60 |
||
|
35321
|
35321
35321-50030 Gear, Front Oil Pump Drive[08.2003 - 05.2005] UZJ100 T=10.750-10.756 |
35321-50030 |
US $39.60 |
||
|
35321
|
35321
35321-50040 Gear, Front Oil Pump Drive[09.2003 - 05.2005] UZJ100 T=10.757-10.763 |
35321-50040 |
from US $39.60 |
||
|
35321
|
35321
35321-50050 Gear, Front Oil Pump Drive[08.2003 - 05.2005] UZJ100 T=10.764-10.770 |
35321-50050 |
US $38.44 |
||
|
35321
|
35321
35321-50060 Gear, Front Oil Pump Drive[08.2003 - 05.2005] UZJ100 T=10.771-10.777 |
35321-50060 |
US $38.44 |
||
|
35321
|
35321
35321-50070 Gear, Front Oil Pump Drive[08.2003 - 05.2005] UZJ100 T=10.778-10.784 |
35321-50070 |
US $38.44 |
||
|
35321
|
35321
35321-60110
Gear, Front Oil Pump Drive
[08.2002 - 08.2003] UZJ100 T=10.740-10.749 |
35321-60110 |
— | ||
| replacement | |||||
|
35321
|
35321
35321-50020 Gear, Front Oil Pump Drive[08.2002 - 08.2003] UZJ100 T=10.740-10.749 |
35321-50020 |
US $39.60 |
||
|
35321
|
35321
35321-60120
Gear, Front Oil Pump Drive
[08.2002 - 08.2003] UZJ100 T=10.750-10.759 |
35321-60120 |
— | ||
| replacement | |||||
|
35321
|
35321
35321-50030 Gear, Front Oil Pump Drive[08.2002 - 08.2003] UZJ100 T=10.750-10.759 |
35321-50030 |
US $39.60 |
||
|
35321
|
35321
35321-60130
Gear, Front Oil Pump Drive
[08.2002 - 08.2003] UZJ100 T=10.760-10.770 |
35321-60130 |
— | ||
| replacement | |||||
|
35321
|
35321
35321-50050 Gear, Front Oil Pump Drive[08.2002 - 08.2003] UZJ100 T=10.760-10.770 |
35321-50050 |
US $38.44 |
||
|
35321
|
35321
35321-60140
Gear, Front Oil Pump Drive
[08.2002 - 08.2003] UZJ100 T=10.771-10.780 |
35321-60140 |
— | ||
| replacement | |||||
|
35321
|
35321
35321-50060 Gear, Front Oil Pump Drive[08.2002 - 08.2003] UZJ100 T=10.771-10.780 |
35321-50060 |
US $38.44 |
||
|
35321
|
35321
35321-60150
Gear, Front Oil Pump Drive
[08.2002 - 08.2003] UZJ100 T=10.781-10.790 |
35321-60150 |
— | ||
| replacement | |||||
|
35321
|
35321
35321-50070 Gear, Front Oil Pump Drive[08.2002 - 08.2003] UZJ100 T=10.781-10.790 |
35321-50070 |
US $38.44 |
||
|
35322
|
35322
35322-50010 Gear, Front Oil Pump Driven[09.2003 - 05.2005] UZJ100 T=10.736-10.742 |
35322-50010 |
from US $32.67 |
||
|
35322
|
35322
35322-50020 Gear, Front Oil Pump Driven[08.2003 - 05.2005] UZJ100 T=10.743-10.749 |
35322-50020 |
US $33.63 |
||
|
35322
|
35322
35322-50030 Gear, Front Oil Pump Driven[08.2003 - 05.2005] UZJ100 T=10.750-10.756 |
35322-50030 |
US $33.63 |
||
|
35322
|
35322
35322-50040 Gear, Front Oil Pump Driven[09.2003 - 05.2005] UZJ100 T=10.757-10.763 |
35322-50040 |
US $33.63 |
||
|
35322
|
35322
35322-50050 Gear, Front Oil Pump Driven[08.2003 - 05.2005] UZJ100 T=10.764-10.770 |
35322-50050 |
US $32.67 |
||
|
35322
|
35322
35322-50060 Gear, Front Oil Pump Driven[08.2003 - 05.2005] UZJ100 T=10.771-10.777 |
35322-50060 |
US $33.63 |
||
|
35322
|
35322
35322-50070 Gear, Front Oil Pump Driven[08.2003 - 05.2005] UZJ100 T=10.778-10.784 |
35322-50070 |
US $33.63 |
||
|
35322
|
35322
35322-60110
Gear, Front Oil Pump Driven
[08.2002 - 08.2003] UZJ100 T=10.740-10.749 |
35322-60110 |
— | ||
| replacement | |||||
|
35322
|
35322
35322-50020 Gear, Front Oil Pump Driven[08.2002 - 08.2003] UZJ100 T=10.740-10.749 |
35322-50020 |
US $33.63 |
||
|
35322
|
35322
35322-60120
Gear, Front Oil Pump Driven
[08.2002 - 08.2003] UZJ100 T=10.750-10.759 |
35322-60120 |
— | ||
| replacement | |||||
|
35322
|
35322
35322-50030 Gear, Front Oil Pump Driven[08.2002 - 08.2003] UZJ100 T=10.750-10.759 |
35322-50030 |
US $33.63 |
||
|
35322
|
35322
35322-60130
Gear, Front Oil Pump Driven
[08.2002 - 08.2003] UZJ100 T=10.760-10.770 |
35322-60130 |
— | ||
| replacement | |||||
|
35322
|
35322
35322-50050 Gear, Front Oil Pump Driven[08.2002 - 08.2003] UZJ100 T=10.760-10.770 |
35322-50050 |
US $32.67 |
||
|
35322
|
35322
35322-60140
Gear, Front Oil Pump Driven
[08.2002 - 08.2003] UZJ100 T=10.771-10.780 |
35322-60140 |
— | ||
| replacement | |||||
|
35322
|
35322
35322-50060 Gear, Front Oil Pump Driven[08.2002 - 08.2003] UZJ100 T=10.771-10.780 |
35322-50060 |
US $33.63 |
||
|
35322
|
35322
35322-60150
Gear, Front Oil Pump Driven
[08.2002 - 08.2003] UZJ100 T=10.781-10.790 |
35322-60150 |
— | ||
| replacement | |||||
|
35322
|
35322
35322-50070 Gear, Front Oil Pump Driven[08.2002 - 08.2003] UZJ100 T=10.781-10.790 |
35322-50070 |
US $33.63 |
||
|
35370
|
35370
35370-50030 Shaft Assy, Stator[09.2003 - 05.2005] UZJ100 |
35370-50030 |
from US $195.69 |
||
|
35370
|
35370
35370-60010 Shaft Assy, Stator[08.2002 - 09.2003] UZJ100 |
35370-60010 |
US $320.32 |
||
| replacement | |||||
|
35370
|
35370
35370-50030 Shaft Assy, Stator[08.2002 - 09.2003] UZJ100 |
35370-50030 |
from US $195.69 |
||
|
35617
|
35617
35617-50030 Ring, Clutch Drum Oil Seal[09.2007 -] UZJ100 |
35617-50030 |
from US $4.02 |
||
|
35617
|
35617
35617-60020 Ring, Clutch Drum Oil Seal[08.2002 - 05.2005] UZJ100 |
35617-60020 |
US $6.64 |
||
