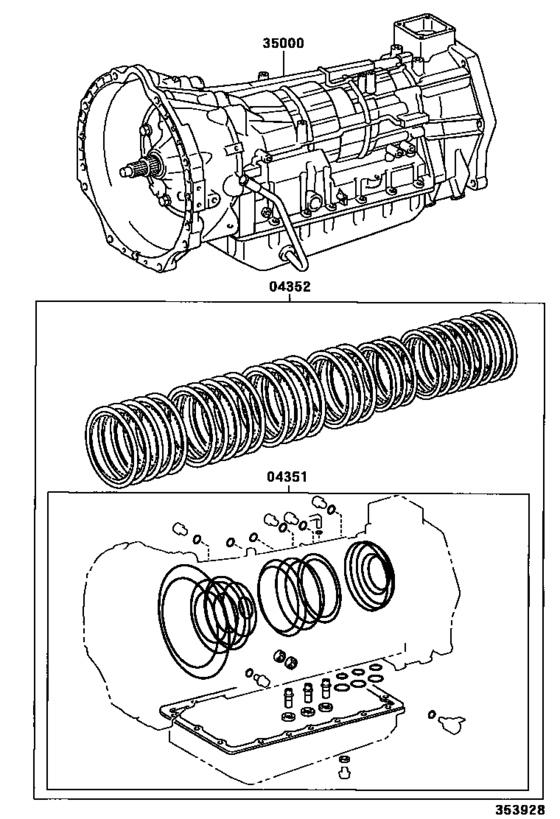

Transaxle Or Transmission Assy & Gasket Kit (Atm) ([08.2002 - ] A750F (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04351
|
04351
04351-35230 Gasket Kit, Automatic Transmission Overhaul[09.2003 - 05.2005] UZJ100 |
04351-35230 |
US $346.53 |
||
|
04351
|
04351
04351-60210 Gasket Kit, Automatic Transmission Overhaul[08.2002 - 09.2003] UZJ100 |
04351-60210 |
US $333.72 |
||
|
04351
|
04351
04351-60410 Gasket Kit, Automatic Transmission Overhaul[05.2005 -] UZJ100 |
04351-60410 |
US $337.21 |
||
|
04352
|
04352
04352-35310
Kit, Automatic Transmission Overhaul
[09.2003 - 05.2005] UZJ100 |
04352-35310 |
— | ||
|
04352
|
04352
04352-60040 Kit, Automatic Transmission OverhaulAUTOMATIC TRANSMISSION OVERHAUL [08.2002 - 09.2003] UZJ100 |
04352-60040 |
US $895.44 |
||
|
04352
|
04352
04352-60270 Kit, Automatic Transmission OverhaulAUTOMATIC TRANSMISSION OVERHAUL [05.2005 -] UZJ100 |
04352-60270 |
US $1,766.28 |
||
|
35000
|
35000
35000-60A00 Transmission Assy, Automatic[08.2003 - 05.2005] UZJ100 A750F |
35000-60A00 |
US $8,124.48 |
||
|
35000
|
35000
35000-60A40 Transmission Assy, AutomaticAUTOMATIC [05.2005 -] UZJ100 A750F |
35000-60A40 |
US $8,124.48 |
||
|
35000
|
35000
35000-6A140 Transmission Assy, Automatic[08.2002 - 09.2002] UZJ100 A750F |
35000-6A140 |
US $8,124.48 |
||
| replacements | |||||
|
35000
|
35000
32921-60351 Tube, Oil Cooler Inlet, No.1[08.2002 - 09.2002] UZJ100 A750F |
32921-60351 |
US $21.55 |
||
|
35000
|
35000
32921-60371 Tube, Oil Cooler Inlet, No.1[08.2002 - 09.2002] UZJ100 A750F |
32921-60371 |
US $21.55 |
||
|
35000
|
35000
32922-60371 Tube, Oil Cooler Outlet, No.1[08.2002 - 09.2002] UZJ100 A750F |
32922-60371 |
US $21.55 |
||
|
35000
|
35000
32922-60401 Tube, Oil Cooler Outlet, No.1[08.2002 - 09.2002] UZJ100 A750F |
32922-60401 |
US $21.55 |
||
|
35000
|
35000
35000-6A141
Transmission Assy, Automatic
[08.2002 - 09.2002] UZJ100 A750F |
35000-6A141 |
— | ||
|
35000
|
35000
35000-6A141
Transmission Assy, Automatic
[09.2002 - 08.2003] UZJ100 A750F |
35000-6A141 |
— | ||
