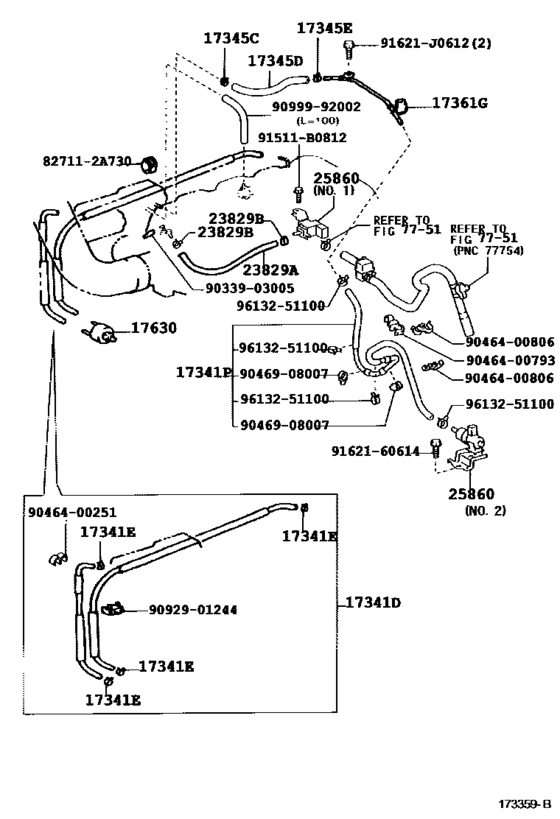

Vacuum Piping ([08.2002 - 05.2005] (0208-0505)) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341D
|
17341D
17030-50070 Hose, No.1(For Idle-Up)[08.2002 - 05.2005] 2UZFE..UZJ100 |
17030-50070 |
from US $36.12 |
||
|
17341D
|
17341D
17030-50150
Hose, No.1(For Idle-Up)
[05.2005 -] 2UZFE..UZJ100 |
17030-50150 |
— | ||
|
17341E
|
17341E
96132-51000 Clip Or Clamp(For Ventilation Hose)[05.2005 -] 2UZFE..UZJ100 NO.1 |
96132-51000 |
from US $1.44 |
||
|
17341P
|
17341P
17341-50170
Hose, Air
[08.2002 - 05.2005] 2UZFE..UZJ100 |
17341-50170 |
— | ||
|
17345C
|
17345C
96132-41100
Clamp Or Clip(For Radiator Reserve Tank Hose)
[08.2002 - 05.2005] 2UZFE..UZJ100 |
96132-41100 |
— | ||
| replacement | |||||
|
17345C
|
17345C
96132-51100 Clip (For Hose)[08.2002 - 05.2005] 2UZFE..UZJ100 |
96132-51100 |
from US $1.39 |
||
|
17345D
|
17345D
17345-50080 Hose, Air, No.5[08.2002 - 05.2005] 2UZFE..UZJ100 |
17345-50080 |
US $16.84 |
||
|
17345E
|
17345E
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
[08.2002 - 05.2005] 2UZFE..UZJ100 |
90467-13007 |
— | ||
| replacement | |||||
|
17345E
|
17345E
96132-51300 Clip(For Ventilation Hose No.2)[08.2002 - 05.2005] 2UZFE..UZJ100 |
96132-51300 |
from US $1.46 |
||
|
17361G
|
17361G
17361-50010
Tube, Air(For Idle-Up)
[08.2002 - 05.2005] 2UZFE..UZJ100 |
17361-50010 |
— | ||
|
17630
|
17630
17630-16040 Valve Assy, Air Control[08.2002 - 05.2005] 2UZFE..UZJ100 |
17630-16040 |
from US $76.25 |
||
|
23829A
|
23829A
23829-50070 Hose, Fuel Vapor Feed[08.2002 - 05.2005] 2UZFE..UZJ100 |
23829-50070 |
from US $22.44 |
||
|
23829A
|
23829A
23829-50161 Hose, Fuel Vapor Feed[05.2005 -] 2UZFE..UZJ100 |
23829-50161 |
from US $12.67 |
||
|
23829B
|
23829B
96132-51300 Clip(For Ventilation Hose No.2)[08.2002 - 05.2005] 2UZFE..UZJ100 |
96132-51300 |
from US $1.46 |
||
|
25860
|
25860
25860-46010 Valve Assy, Vacuum Switching, No.1[05.2005 -] 2UZFE..UZJ100 NO.2 |
25860-46010 |
from US $51.91 |
||
|
25860
|
25860
25860-50100 Valve Assy, Vacuum Switching[08.2002 - 05.2005] 2UZFE..UZJ100 NO.1 |
25860-50100 |
from US $62.34 |
||
|
25860
|
25860
25860-50150
Valve Assy, Vacuum Switching, No.1
[08.2002 - 05.2005] 2UZFE..UZJ100 NO.2 |
25860-50150 |
— | ||
|
25860
|
25860
25860-50160 Valve Assy, Vacuum Switching, No.1[05.2005 -] 2UZFE..UZJ100 NO.1 |
25860-50160 |
from US $87.27 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.61 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
827112A730
|
827112A730
82711-2A730 Clamp, Throttle Cable, No.1 |
82711-2A730 |
US $5.91 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.73 |
||
|
9046400251
|
9046400251
90464-00251 Clamp, Vacuum Tube |
90464-00251 |
US $4.02 |
||
|
9046400793
|
9046400793
90464-00793 New Genuine Part |
90464-00793 |
US $2.87 |
||
|
9046400806
|
9046400806
90464-00806 New Genuine Part |
90464-00806 |
US $3.93 |
||
|
9046908007
|
9046908007
90469-08007 CLAMP |
90469-08007 |
US $1.40 |
||
|
9092901244
|
9092901244
90929-01244 New Genuine Part |
90929-01244 |
US $6.81 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
