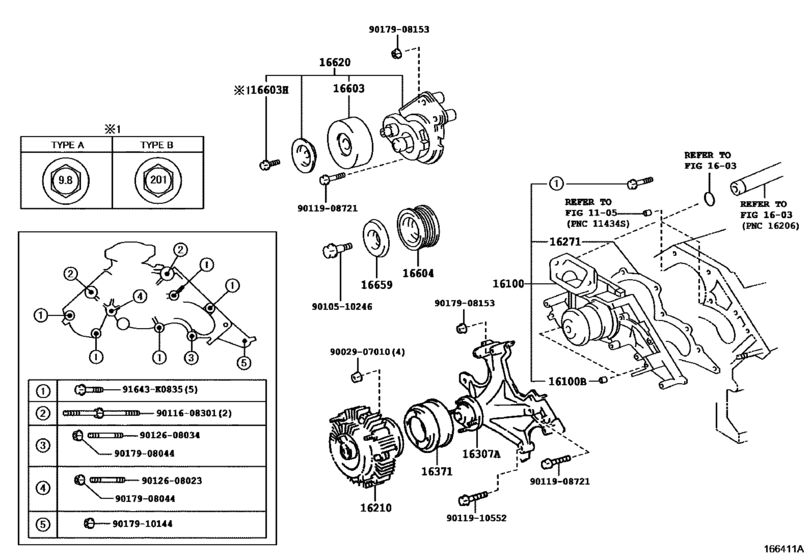

Water Pump ([01.1998 - ] (9801- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-59275
Pump Assy, Engine Water
[08.2002 - 05.2005] 2UZFE..UZJ100 |
16100-59275 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-59276 Pump Assy, Engine Water[08.2002 - 05.2005] 2UZFE..UZJ100 |
16100-59276 |
from US $159.16 |
||
|
16100B
|
16100B
90253-11021 Pin, Ring[08.2002 - 05.2005] 2UZFE..UZJ100 |
90253-11021 |
from US $1.41 |
||
|
16210
|
16210
16210-50051 Coupling Assy, Fluid[08.2002 - 05.2005] 2UZFE..UZJ100 DARK BLUE |
16210-50051 |
from US $262.69 |
||
|
16210
|
16210
16210-50100 Coupling Assy, FluidFLUID [05.2005 - 08.2005] 2UZFE..UZJ100 |
16210-50100 |
US $509.60 |
||
| replacement | |||||
|
16210
|
16210
16210-50102 Coupling Assy, Fluid[05.2005 - 08.2005] 2UZFE..UZJ100 |
16210-50102 |
from US $259.83 |
||
|
16210
|
16210
16210-50101
Coupling Assy, Fluid
[08.2005 -] 2UZFE..UZJ100 |
16210-50101 |
— | ||
| replacement | |||||
|
16210
|
16210
16210-50102 Coupling Assy, Fluid[08.2005 -] 2UZFE..UZJ100 |
16210-50102 |
from US $259.83 |
||
|
16271
|
16271
16271-50010 Gasket, Water Pump[08.2002 - 05.2005] 2UZFE..UZJ100 |
16271-50010 |
from US $5.47 |
||
|
16307A
|
16307A
16307-50012 Bracket Sub-Assy, Fan[08.2002 - 05.2005] 2UZFE..UZJ100 |
16307-50012 |
from US $184.30 |
||
|
16371
|
16371
16371-50040 Pulley, Fan[08.2002 - 05.2005] 2UZFE..UZJ100 |
16371-50040 |
from US $47.67 |
||
|
16603
|
16603
16603-0W010 Pulley Sub-Assy, Idler, No.1[08.2002 - 11.2004] 2UZFE..UZJ100 PNC 16603H=TYPE A |
16603-0W010 |
from US $67.62 |
||
|
16603
|
16603
16603-0W030 Pulley Sub-Assy, Idler, No.1[08.2002 - 05.2005] 2UZFE..UZJ100 PNC 16603H=TYPE B |
16603-0W030 |
from US $58.46 |
||
|
16603H
|
16603H
90080-10219 Bolt(For Idler Pulley)[08.2002 - 05.2005] 2UZFE..UZJ100 TYPE B:REFER ILLUST. |
90080-10219 |
US $1.89 |
||
|
16603H
|
16603H
90105-10247 Bolt(For Idler Pulley)[08.2002 - 11.2004] 2UZFE..UZJ100 TYPE A:REFER ILLUST. |
90105-10247 |
US $2.89 |
||
|
16604
|
16604
16604-50030 Pulley Sub-Assy, Idler, No.2[08.2002 - 05.2005] 2UZFE..UZJ100 |
16604-50030 |
from US $54.02 |
||
|
16620
|
16620
16620-0W100 Tensioner Assy, V-Ribbed Belt[08.2002 - 05.2005] 2UZFE..UZJ100 PNC 16603H=TYPE B |
16620-0W100 |
US $390.21 |
||
| replacement | |||||
|
16620
|
16620
16620-0W101 Tensioner Assy, V-Ribbed Belt[08.2002 - 05.2005] 2UZFE..UZJ100 PNC 16603H=TYPE B |
16620-0W101 |
from US $68.53 |
||
|
16620
|
16620
16620-0W101 Tensioner Assy, V-Ribbed Belt[09.2006 -] 2UZFE..UZJ100 PNC 16603H=TYPE B |
16620-0W101 |
from US $68.53 |
||
|
16659
|
16659
16659-50022 Plate, Idler Pulley Cover, No.2[08.2002 - 05.2005] 2UZFE..UZJ100 |
16659-50022 |
from US $3.34 |
||
|
91643K0835
|
91643K0835
91643-K0835 BOLT WWASHER |
91643-K0835 |
US $1.61 |
||
|
9002907010
|
9002907010
90029-07010 NUT |
90029-07010 |
from US $1.84 |
||
|
9010510246
|
9010510246
90105-10246 BOLT WASHER BASED |
90105-10246 |
from US $1.75 |
||
|
9011608301
|
9011608301
90116-08301 BOLT STUD |
90116-08301 |
US $5.07 |
||
|
9011908721
|
9011908721
90119-08721 BOLT WWASHER |
90119-08721 |
US $4.12 |
||
|
9011910552
|
9011910552
90119-10552 BOLT WWASHER |
90119-10552 |
US $5.07 |
||
|
9012608023
|
9012608023
90126-08023 New Genuine Part |
90126-08023 |
US $14.33 |
||
|
9012608034
|
9012608034
90126-08034 STUD HEX LOBULAR |
90126-08034 |
US $4.54 |
||
|
9017908044
|
9017908044
90179-08044 NUT |
90179-08044 |
from US $2.20 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9017910144
|
9017910144
90179-10144 NUT |
90179-10144 |
US $2.62 |
||
