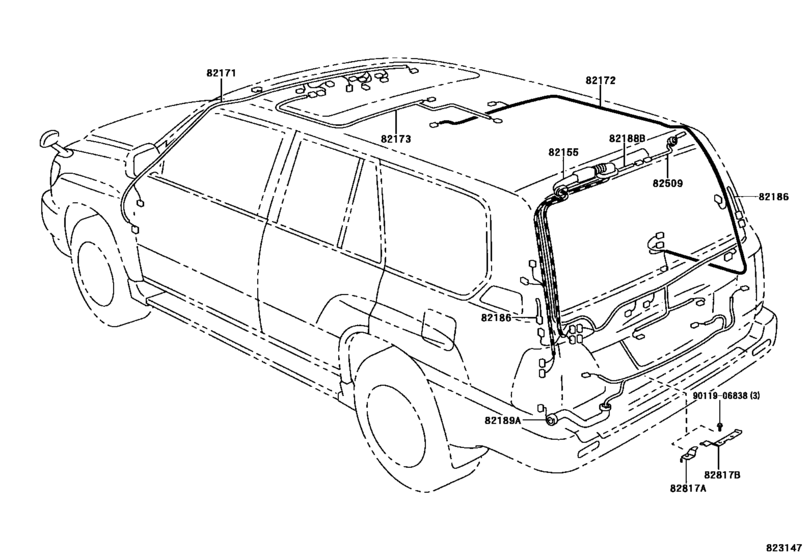

Wiring & Clamp ([08.2002 - ] ROOF,BACK DOOR (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82155
|
82155
82155-60021 Wire, Center Piller, No.1[08.2002 - 03.2003] UZJ100 |
82155-60021 |
US $196.56 |
||
|
82155
|
82155
82155-60022 Wire, Center Piller, No.1[03.2003 - 05.2005] UZJ100 |
82155-60022 |
US $206.17 |
||
|
82155
|
82155
82155-60040 Wire, Center Piller, No.1[08.2003 - 05.2005] UZJ100 W(NAVIGATION SYSTEM) |
82155-60040 |
US $196.56 |
||
|
82171
|
82171
82171-60652 Wire, Roof, No.1[08.2002 - 05.2005] UZJ100 |
82171-60652 |
US $218.40 |
||
|
82171
|
82171
82171-60653 Wire, Roof, No.1[05.2005 -] UZJ100 |
82171-60653 |
US $218.40 |
||
|
82171
|
82171
82171-6A290 Wire, Roof, No.1ROOF, NO.1 [08.2002 - 05.2005] UZJ100 W(NIGHT VIEW) |
82171-6A290 |
US $250.43 |
||
|
82171
|
82171
82171-6A291 Wire, Roof, No.1ROOF, NO.1 [05.2005 -] UZJ100 W(NIGHT VIEW) |
82171-6A291 |
US $250.43 |
||
|
82172
|
82172
82172-60120 Wire, Roof, No.2[08.2002 - 05.2005] UZJ100 |
82172-60120 |
US $18.05 |
||
|
82173
|
82173
82173-60090 Wire, Roof, No.3[08.2002 - 05.2005] UZJ100 |
82173-60090 |
US $30.87 |
||
|
82186
|
82186
82186-60040 Wire, Rear Window, No.1[08.2002 - 05.2005] UZJ100 |
82186-60040 |
US $41.35 |
||
|
82188B
|
82188B
82188-60060 Wire, Back Door, Upper[08.2002 - 08.2003] UZJ100 |
82188-60060 |
US $168.90 |
||
|
82188B
|
82188B
82188-60061 Wire, Back Door, Upper[08.2003 - 05.2005] UZJ100 |
82188-60061 |
US $168.90 |
||
|
82188B
|
82188B
82188-60080 Wire, Back Door, Upper[08.2003 - 05.2005] UZJ100 W(NAVIGATION SYSTEM) |
82188-60080 |
US $168.90 |
||
|
82189A
|
82189A
82189-60042 Wire, Back Door, Lower[08.2002 - 05.2005] UZJ100 |
82189-60042 |
US $100.46 |
||
| replacement | |||||
|
82189A
|
82189A
82189-60170
Wire, Back Door, Lower
[08.2002 - 05.2005] UZJ100 |
82189-60170 |
— | ||
|
82189A
|
82189A
82189-60043
Wire, Back Door, Lower
[05.2005 -] UZJ100 |
82189-60043 |
— | ||
|
82509
|
82509
82509-60010 Wiring Sub-Assy, Back Door[08.2002 - 11.2002] UZJ100 |
82509-60010 |
US $15.58 |
||
| replacement | |||||
|
82509
|
82509
82509-60011
Wiring Sub-Assy, Back Door
[08.2002 - 11.2002] UZJ100 |
82509-60011 |
— | ||
|
82509
|
82509
82509-60011
Wiring Sub-Assy, Back Door
[11.2002 - 05.2005] UZJ100 |
82509-60011 |
— | ||
|
82817A
|
82817A
82817-60440 Protector, Wiring Harness, No.2[08.2002 - 05.2005] UZJ100 |
82817-60440 |
US $11.36 |
||
|
82817B
|
82817B
82817-60450 Protector, Wiring Harness, No.3[08.2002 - 05.2005] UZJ100 |
82817-60450 |
US $34.51 |
||
|
9011906838
|
9011906838
90119-06838 New Genuine Part |
90119-06838 |
US $1.46 |
||
| replacement | |||||
|
9011906838
|
9011906838
90119-06660 BOLT |
90119-06660 |
US $2.15 |
||
