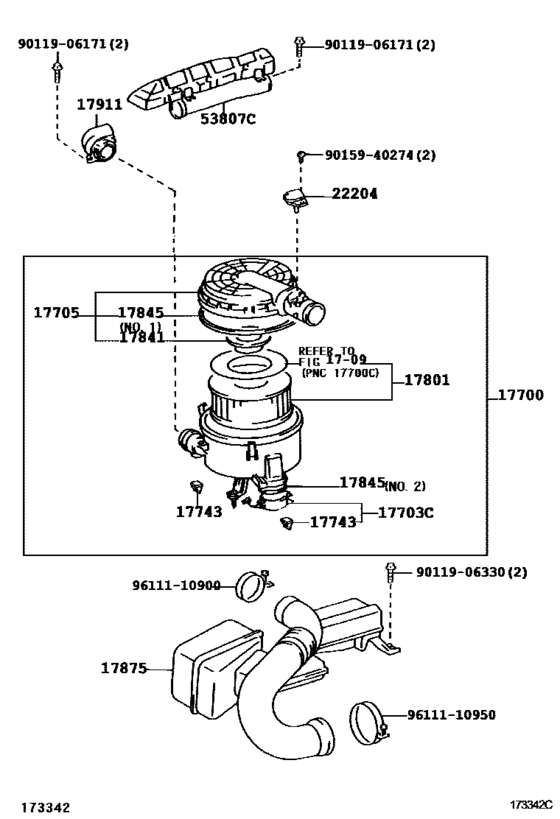

Air Cleaner ([08.2002 - ] (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-50182
Cleaner Assy, Air
[08.2002 - 05.2005] 2UZFE..UZJ100 |
17700-50182 |
— | ||
|
17703C
|
17703C
17703-50020 Cap Sub-Assy, DustDUST [08.2002 - 05.2005] 2UZFE..UZJ100 |
17703-50020 |
US $17.71 |
||
|
17705
|
17705
17705-50091
Cap Sub-Assy, Air Cleaner
[08.2002 - 05.2005] 2UZFE..UZJ100 |
17705-50091 |
— | ||
|
17743
|
17743
17743-50010
Valve, Dust Relief
[08.2002 - 05.2005] 2UZFE..UZJ100 |
17743-50010 |
— | ||
|
17801
|
17801
17801-17020 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [08.2002 - 05.2005] 2UZFE..UZJ100 |
17801-17020 |
from US $67.37 |
||
|
17841
|
17841
17841-50010 Gasket, Filter Element[08.2002 - 05.2005] 2UZFE..UZJ100 |
17841-50010 |
US $6.46 |
||
|
17845
|
17845
17845-50010 Gasket, Air Cleaner Cap[08.2002 - 05.2005] 2UZFE..UZJ100 NO.1 |
17845-50010 |
US $11.86 |
||
|
17845
|
17845
17845-50020 Gasket, Air Cleaner CapAIR CLEANER CAP [08.2002 - 05.2005] 2UZFE..UZJ100 NO.2 |
17845-50020 |
US $1.58 |
||
|
17875
|
17875
17875-50280 Pipe, Intake Air ConnectorINTAKE AIR CONNECTOR [08.2002 - 05.2005] 2UZFE..UZJ100 |
17875-50280 |
US $306.28 |
||
|
17911
|
17911
52810-60010 Duct, Cool Air Intake, No.1[08.2002 - 05.2005] 2UZFE..UZJ100 |
52810-60010 |
from US $31.52 |
||
|
22204
|
22204
22204-75020 Meter Sub-Assy, Intake Air Flow[08.2002 - 05.2005] 2UZFE..UZJ100 |
22204-75020 |
from US $123.12 |
||
|
53807C
|
53807C
53807-60050 Duct Sub-Assy, Front Fender Air, Rh[08.2002 - 05.2005] UZJ100 |
53807-60050 |
US $90.85 |
||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.33 |
||
|
9011906330
|
9011906330
90119-06330 Bolt |
90119-06330 |
US $1.43 |
||
|
9015940274
|
9015940274
90159-40274
New Genuine Part
|
90159-40274 |
— | ||
|
9611110900
|
9611110900
96111-10900 Clamp, Hose |
96111-10900 |
from US $1.16 |
||
|
9611110950
|
9611110950
96111-10950 Clamp(For Air Cleaner Hose, No.1) |
96111-10950 |
from US $2.72 |
