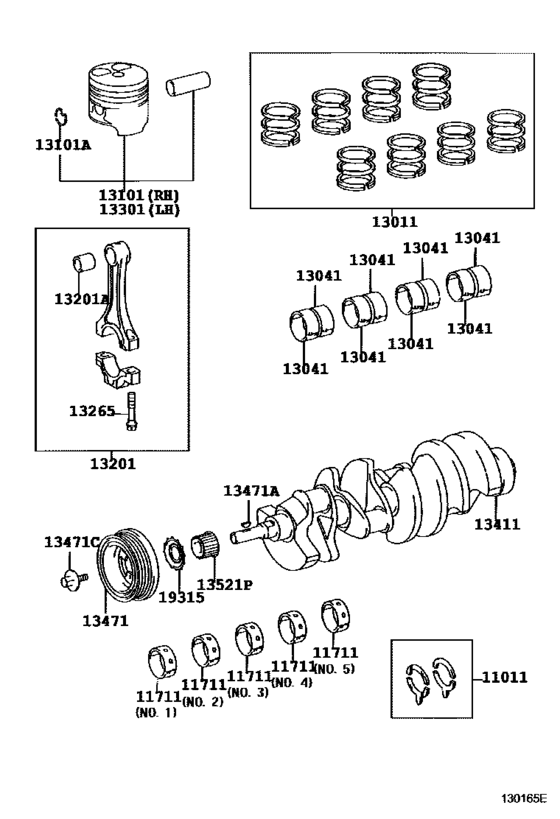

Crankshaft & Piston ([08.2002 - ] (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-50010 Washer Set, Crankshaft Thrust[08.2002 - 05.2005] 2UZFE..UZJ100 STD |
11011-50010 |
from US $26.24 |
||
|
11011
|
11011
11012-50010 Washer Set, Crankshaft Thrust[08.2002 - 05.2005] 2UZFE..UZJ100 O/S 0.125 |
11012-50010 |
US $54.63 |
||
|
11711
|
11711
11071-50020-01 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 1,NO.2,3,4 REFER R/M |
11071-50020-01 |
US $55.62 |
||
| replacement | |||||
|
11711
|
11711
11071-50021-01 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 1,NO.2,3,4 REFER R/M |
11071-50021-01 |
from US $22.29 |
||
|
11711
|
11711
11071-50020-02
Bearing, Crankshaft
[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 2,NO.2,3,4 REFER R/M |
11071-50020-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-50021-02 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 2,NO.2,3,4 REFER R/M |
11071-50021-02 |
US $22.34 |
||
|
11711
|
11711
11071-50020-03 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 3,NO.2,3,4 REFER R/M |
11071-50020-03 |
US $55.62 |
||
| replacement | |||||
|
11711
|
11711
11071-50021-03 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 3,NO.2,3,4 REFER R/M |
11071-50021-03 |
from US $22.08 |
||
|
11711
|
11711
11071-50020-04 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 4,NO.2,3,4 REFER R/M |
11071-50020-04 |
US $55.62 |
||
| replacement | |||||
|
11711
|
11711
11071-50021-04 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 4,NO.2,3,4 REFER R/M |
11071-50021-04 |
US $21.38 |
||
|
11711
|
11711
11071-50020-05 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 5,NO.2,3,4 REFER R/M |
11071-50020-05 |
US $55.62 |
||
| replacement | |||||
|
11711
|
11711
11071-50021-05 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 5,NO.2,3,4 REFER R/M |
11071-50021-05 |
US $21.36 |
||
|
11711
|
11711
11071-50021-01 Bearing, Crankshaft[08.2004 - 05.2005] 2UZFE..UZJ100 MARK1,NO.2,3,4 REFER R/M |
11071-50021-01 |
from US $22.29 |
||
|
11711
|
11711
11071-50021-02 Bearing, Crankshaft[08.2004 - 05.2005] 2UZFE..UZJ100 MARK2,NO.2,3,4 REFER R/M |
11071-50021-02 |
US $22.34 |
||
|
11711
|
11711
11071-50021-03 Bearing, Crankshaft[08.2004 - 05.2005] 2UZFE..UZJ100 MARK3,NO.2,3,4 REFER R/M |
11071-50021-03 |
from US $22.08 |
||
|
11711
|
11711
11071-50021-04 Bearing, Crankshaft[08.2004 - 05.2005] 2UZFE..UZJ100 MARK4,NO.2,3,4 REFER R/M |
11071-50021-04 |
US $21.38 |
||
|
11711
|
11711
11071-50021-05 Bearing, Crankshaft[08.2004 - 05.2005] 2UZFE..UZJ100 MARK5,NO.2,3,4 REFER R/M |
11071-50021-05 |
US $21.36 |
||
|
11711
|
11711
11701-50031-03 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 3,NO.1,5 REFER R/M |
11701-50031-03 |
US $58.53 |
||
| replacement | |||||
|
11711
|
11711
11701-50032-03 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 3,NO.1,5 REFER R/M |
11701-50032-03 |
from US $25.14 |
||
|
11711
|
11711
11701-50031-04 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 4,NO.1,5 REFER R/M |
11701-50031-04 |
US $58.53 |
||
| replacement | |||||
|
11711
|
11711
11701-50032-04 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 4,NO.1,5 REFER R/M |
11701-50032-04 |
from US $24.23 |
||
|
11711
|
11711
11701-50031-05 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 5,NO.1,5 REFER R/M |
11701-50031-05 |
US $58.53 |
||
| replacement | |||||
|
11711
|
11711
11701-50032-05 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 5,NO.1,5 REFER R/M |
11701-50032-05 |
from US $25.44 |
||
|
11711
|
11711
11701-50031-06 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 6,NO.1,5 REFER R/M |
11701-50031-06 |
US $58.53 |
||
| replacement | |||||
|
11711
|
11711
11701-50032-06 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 6,NO.1,5 REFER R/M |
11701-50032-06 |
US $29.20 |
||
|
11711
|
11711
11701-50031-07 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 7,NO.1,5 REFER R/M |
11701-50031-07 |
US $58.53 |
||
| replacement | |||||
|
11711
|
11711
11701-50032-07 Bearing, Crankshaft[08.2002 - 08.2004] 2UZFE..UZJ100 MARK 7,NO.1,5 REFER R/M |
11701-50032-07 |
from US $29.20 |
||
|
11711
|
11711
11701-50032-03 Bearing, Crankshaft[08.2004 - 05.2005] 2UZFE..UZJ100 MARK3,NO.1,5 REFER R/M |
11701-50032-03 |
from US $25.14 |
||
|
11711
|
11711
11701-50032-04 Bearing, Crankshaft[08.2004 - 05.2005] 2UZFE..UZJ100 MARK4,NO.1,5 REFER R/M |
11701-50032-04 |
from US $24.23 |
||
|
11711
|
11711
11701-50032-05 Bearing, Crankshaft[08.2004 - 05.2005] 2UZFE..UZJ100 MARK5,NO.1,5 REFER R/M |
11701-50032-05 |
from US $25.44 |
||
|
11711
|
11711
11701-50032-06 Bearing, Crankshaft[08.2004 - 05.2005] 2UZFE..UZJ100 MARK6,NO.1,5 REFER R/M |
11701-50032-06 |
US $29.20 |
||
|
11711
|
11711
11701-50032-07 Bearing, Crankshaft[08.2004 - 05.2005] 2UZFE..UZJ100 MARK7,NO.1,5 REFER R/M |
11701-50032-07 |
from US $29.20 |
||
|
13011
|
13011
13011-50150 Ring Set, PistonPISTON [08.2002 - 06.2003] 2UZFE..UZJ100 STD |
13011-50150 |
US $364.65 |
||
|
13011
|
13011
13011-50151 Ring Set, PistonPISTON [06.2003 - 03.2004] 2UZFE..UZJ100 STD |
13011-50151 |
US $438.26 |
||
| replacement | |||||
|
13011
|
13011
13011-50150 Ring Set, PistonPISTON [06.2003 - 03.2004] 2UZFE..UZJ100 STD |
13011-50150 |
US $364.65 |
||
|
13011
|
13011
13013-50150 Ring Set, PistonPISTON [08.2002 - 06.2003] 2UZFE..UZJ100 O/S 0.50 |
13013-50150 |
US $423.99 |
||
|
13041
|
13041
13041-50030-02 Bearing, Connecting Rod[08.2002 - 08.2004] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 2 |
13041-50030-02 |
US $34.65 |
||
| replacement | |||||
|
13041
|
13041
13041-50031-02 Bearing, Connecting Rod[08.2002 - 08.2004] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 2 |
13041-50031-02 |
from US $13.02 |
||
|
13041
|
13041
13041-50030-03 Bearing, Connecting Rod[08.2002 - 08.2004] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 3 |
13041-50030-03 |
US $34.65 |
||
| replacement | |||||
|
13041
|
13041
13041-50031-03 Bearing, Connecting Rod[08.2002 - 08.2004] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 3 |
13041-50031-03 |
from US $13.09 |
||
|
13041
|
13041
13041-50030-04 Bearing, Connecting Rod[08.2002 - 08.2004] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 4 |
13041-50030-04 |
US $34.65 |
||
| replacement | |||||
|
13041
|
13041
13041-50031-04 Bearing, Connecting Rod[08.2002 - 08.2004] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 4 |
13041-50031-04 |
from US $13.05 |
||
|
13041
|
13041
13041-50030-05 Bearing, Connecting Rod[08.2002 - 08.2004] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 5 |
13041-50030-05 |
US $34.65 |
||
| replacement | |||||
|
13041
|
13041
13041-50031-05 Bearing, Connecting Rod[08.2002 - 08.2004] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 5 |
13041-50031-05 |
from US $14.06 |
||
|
13041
|
13041
13041-50030-06 Bearing, Connecting Rod[08.2002 - 08.2004] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 6 |
13041-50030-06 |
US $34.65 |
||
| replacement | |||||
|
13041
|
13041
13041-50031-06 Bearing, Connecting Rod[08.2002 - 08.2004] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 6 |
13041-50031-06 |
US $39.98 |
||
|
13041
|
13041
13041-50030-07 Bearing, Connecting Rod[08.2002 - 08.2004] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 7 |
13041-50030-07 |
US $34.65 |
||
| replacement | |||||
|
13041
|
13041
13041-50031-07 Bearing, Connecting Rod[08.2002 - 08.2004] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 7 |
13041-50031-07 |
from US $15.09 |
||
|
13041
|
13041
13041-50031-02 Bearing, Connecting Rod[08.2004 - 05.2005] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 2 |
13041-50031-02 |
from US $13.02 |
||
|
13041
|
13041
13041-50031-03 Bearing, Connecting Rod[08.2004 - 05.2005] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 3 |
13041-50031-03 |
from US $13.09 |
||
|
13041
|
13041
13041-50031-04 Bearing, Connecting Rod[08.2004 - 05.2005] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 4 |
13041-50031-04 |
from US $13.05 |
||
|
13041
|
13041
13041-50031-05 Bearing, Connecting Rod[08.2004 - 05.2005] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 5 |
13041-50031-05 |
from US $14.06 |
||
|
13041
|
13041
13041-50031-06 Bearing, Connecting Rod[08.2004 - 05.2005] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 6 |
13041-50031-06 |
US $39.98 |
||
|
13041
|
13041
13041-50031-07 Bearing, Connecting Rod[08.2004 - 05.2005] 2UZFE..UZJ100 REFER TO REPAIR MANUAL,MARK 7 |
13041-50031-07 |
from US $15.09 |
||
|
13101
|
13101
13101-50061-01 Piston Sub-Assy, W/pin[08.2002 - 05.2005] 2UZFE..UZJ100 STD,MARK 1:REFER TO REPAIR MANUAL,MARK 1 |
13101-50061-01 |
from US $69.54 |
||
|
13101
|
13101
13101-50061-02 Piston Sub-Assy, W/pin[08.2002 - 05.2005] 2UZFE..UZJ100 STD,MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
13101-50061-02 |
US $110.66 |
||
|
13101
|
13101
13101-50061-03 Piston Sub-Assy, W/pin[08.2002 - 05.2005] 2UZFE..UZJ100 STD,MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
13101-50061-03 |
US $110.66 |
||
|
13101
|
13101
13103-50061 Piston Sub-Assy, W/pin[08.2002 - 05.2004] 2UZFE..UZJ100 O/S 0.50 |
13103-50061 |
US $79.78 |
||
|
13101A
|
13101A
90521-25004
Ring, Hole Snap(For Piston Pin)
[08.2002 - 01.2003] 2UZFE..UZJ100 |
90521-25004 |
— | ||
| replacement | |||||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[08.2002 - 01.2003] 2UZFE..UZJ100 |
90520-22025 |
from US $1.90 |
||
|
13201
|
13201
13201-50032 Rod Sub-Assy, Connecting[08.2002 - 05.2005] 2UZFE..UZJ100 |
13201-50032 |
from US $154.32 |
||
|
13201A
|
13201A
90999-73144 Bush(For Connecting Rod Small End)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90999-73144 |
from US $2.32 |
||
|
13265
|
13265
13265-28010
Bolt, Connecting Rod
[08.2002 - 05.2005] 2UZFE..UZJ100 |
13265-28010 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-28020 BOLT CONNECTING ROD[08.2002 - 05.2005] 2UZFE..UZJ100 |
13265-28020 |
from US $2.77 |
||
|
13301
|
13301
13301-50051-01 Piston Sub-Assy, W/pin, Lh[08.2002 - 05.2005] 2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 1 |
13301-50051-01 |
from US $69.54 |
||
|
13301
|
13301
13301-50051-02 Piston Sub-Assy, W/pin, Lh[08.2002 - 05.2005] 2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 2 |
13301-50051-02 |
US $110.66 |
||
|
13301
|
13301
13301-50051-03
Piston Sub-Assy, W/pin, Lh
[08.2002 - 05.2005] 2UZFE..UZJ100 STD,REFER TO REPAIR MANUAL,MARK 3 |
13301-50051-03 |
— | ||
|
13301
|
13301
13303-50051 Piston Sub-Assy, W/pin, Lh[08.2002 - 05.2005] 2UZFE..UZJ100 O/S 0.50 |
13303-50051 |
US $79.15 |
||
|
13411
|
13411
13411-50050 Crankshaft[08.2002 - 05.2004] 2UZFE..UZJ100 |
13411-50050 |
US $4,105.92 |
||
| replacement | |||||
|
13411
|
13411
13411-50070 Crankshaft[08.2002 - 05.2004] 2UZFE..UZJ100 |
13411-50070 |
from US $1,938.95 |
||
|
13411
|
13411
13411-50070 Crankshaft[05.2004 - 05.2005] 2UZFE..UZJ100 |
13411-50070 |
from US $1,938.95 |
||
|
13471
|
13471
13407-50091 Damper Sub-Assy, Crankshaft[08.2002 - 05.2005] 2UZFE..UZJ100 |
13407-50091 |
US $251.60 |
||
| replacement | |||||
|
13471
|
13471
13407-50090 Pulley, Crankshaft[08.2002 - 05.2005] 2UZFE..UZJ100 |
13407-50090 |
from US $208.83 |
||
|
13471A
|
13471A
90280-05005 Key(For Oil Pump Drive Spline)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90280-05005 |
from US $0.91 |
||
|
13471C
|
13471C
90109-18003 Bolt(For Crankshaft Pulley Set)[08.2002 - 05.2005] 2UZFE..UZJ100 |
90109-18003 |
from US $6.76 |
||
|
13521P
|
13521P
13521-50022 Pulley, Crankshaft Timing[08.2002 - 05.2005] 2UZFE..UZJ100 |
13521-50022 |
from US $26.89 |
||
|
19315
|
19315
19315-50020 Plate, Crank Angle Sensor, No.1[08.2002 - 05.2005] 2UZFE..UZJ100 |
19315-50020 |
from US $10.47 |
||
