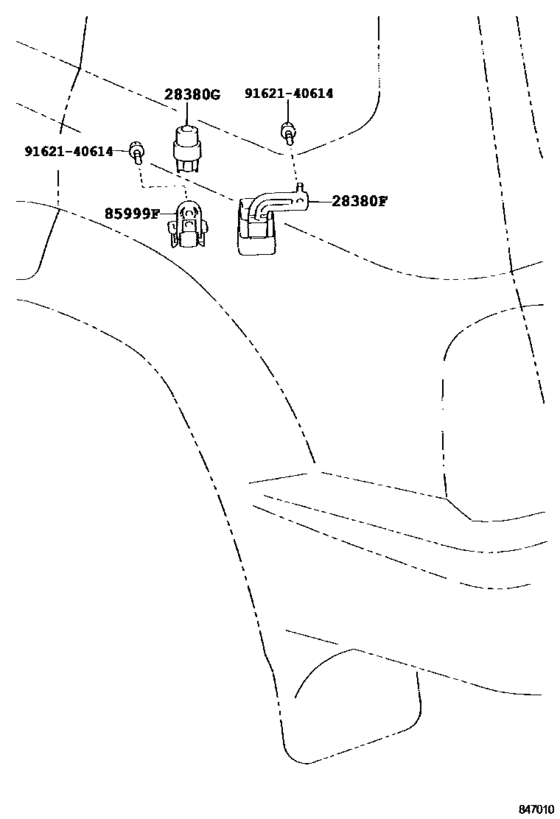

Electronic Fuel Injection System ([05.2005 - ] REAR (0505- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28380F
|
28380F
28380-50020
Relay Assy, Fuel Pump Select
[05.2005 -] 2UZFE..UZJ100 |
28380-50020 |
— | ||
|
28380G
|
28380G
90987-02004 Relay Assy, Starter[05.2005 -] 2UZFE..UZJ100 |
90987-02004 |
from US $27.38 |
||
| replacement | |||||
|
28380G
|
28380G
909870200483 [05.2005 -] 2UZFE..UZJ100 |
909870200483 |
US $53.75 |
||
|
85999F
|
85999F
85999-12050
Bracket, Main Relay
[05.2005 -] UZJ100 |
85999-12050 |
— | ||
|
9162140614
|
9162140614
91621-40614 BOLT |
91621-40614 |
from US $0.82 |
||
