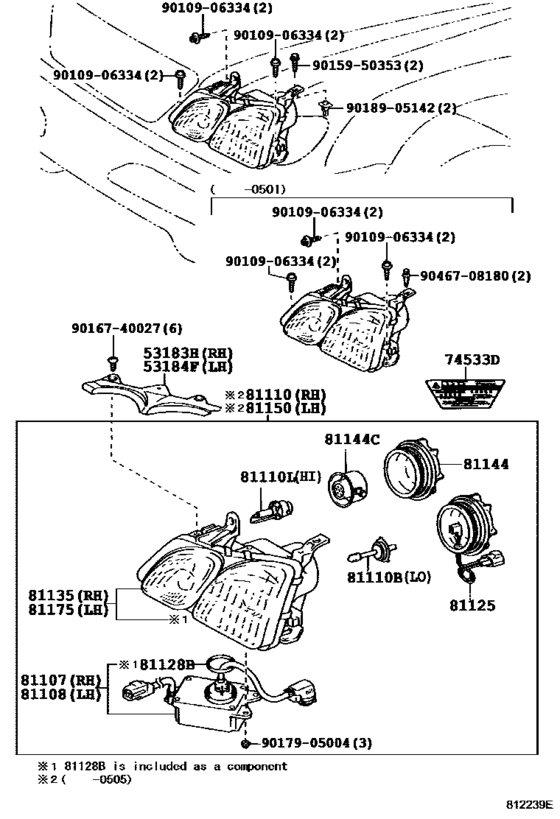

Headlamp ([08.2002 - ] (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53183H
|
53183H
53183-60090 Seal, Headlamp Cover, Rh[08.2002 - 05.2005] UZJ100 |
53183-60090 |
from US $13.28 |
||
|
53184F
|
53184F
53184-60080 Seal, Headlamp Cover, Lh[08.2002 - 05.2005] UZJ100 |
53184-60080 |
from US $17.14 |
||
|
74533D
|
74533D
74533-60010 Label, Headlamp Voltage CautionHEADLAMP VOLTAGE CAUTION [08.2002 - 05.2005] UZJ100 |
74533-60010 |
from US $1.22 |
||
|
81107
|
81107
81018-60010 Computer Sub-Assy, Headlamp Light Control, RhHEADLAMP LIGHT CONTROL, RH [08.2002 - 05.2005] UZJ100 |
81018-60010 |
US $867.78 |
||
|
81108
|
81108
81018-60010 Computer Sub-Assy, Headlamp Light Control, RhHEADLAMP LIGHT CONTROL, RH [08.2002 - 05.2005] UZJ100 |
81018-60010 |
US $867.78 |
||
|
81110
|
81110
81110-6A250
Headlamp Assy, Rh
[08.2002 - 05.2005] UZJ100 |
81110-6A250 |
— | ||
| replacement | |||||
|
81110
|
81110
81110-6A251
Headlamp Assy, Rh
[08.2002 - 05.2005] UZJ100 |
81110-6A251 |
— | ||
|
81110B
|
81110B
90981-13017 Bulb(For Headlamp, No.1)[08.2002 - 05.2005] UZJ100 12V 55W,*HAL *WH |
90981-13017 |
from US $14.26 |
||
|
81110L
|
81110L
90981-20005 Bulb(For Headlamp, No.1)[08.2002 - 05.2005] UZJ100 85V 35W |
90981-20005 |
from US $208 |
||
|
81125
|
81125
81125-6A080 Cord, Headlamp[08.2002 - 05.2005] UZJ100 |
81125-6A080 |
from US $38.40 |
||
|
81128B
|
81128B
81132-3A430 Packing, Headlamp (For Ballast)[08.2002 - 05.2005] UZJ100 |
81132-3A430 |
US $5.42 |
||
|
81135
|
81135
81145-6A250
Unit Assy, Headlamp, Rh
[08.2002 - 05.2005] UZJ100 |
81145-6A250 |
— | ||
| replacement | |||||
|
81135
|
81135
81145-6A251 Unit Assy, Headlamp, RhHEADLAMP, RH [08.2002 - 05.2005] UZJ100 |
81145-6A251 |
US $1,790.88 |
||
|
81135
|
81135
81145-6A251 Unit Assy, Headlamp, RhHEADLAMP, RH [12.2006 -] UZJ100 |
81145-6A251 |
US $1,790.88 |
||
|
81144
|
81144
81135-30870
Cover, Headlamp, No.1
[08.2002 - 05.2005] UZJ100 |
81135-30870 |
— | ||
|
81144
|
81144
90075-66006 Cover, Headlamp, No.1[12.2006 -] UZJ100 |
90075-66006 |
US $13.40 |
||
|
81144C
|
81144C
90075-99129 Cover, Headlamp Socket[08.2002 - 05.2005] UZJ100 |
90075-99129 |
US $13.10 |
||
|
81150
|
81150
81150-6A080
Headlamp Assy, Lh
[08.2002 - 05.2005] UZJ100 |
81150-6A080 |
— | ||
| replacement | |||||
|
81150
|
81150
81150-6A081
Headlamp Assy, Lh
[08.2002 - 05.2005] UZJ100 |
81150-6A081 |
— | ||
|
81175
|
81175
81185-6A080
Unit Assy, Headlamp, Lh
[08.2002 - 05.2005] UZJ100 |
81185-6A080 |
— | ||
| replacement | |||||
|
81175
|
81175
81185-6A081 Unit Assy, Headlamp, LhHEADLAMP, LH [08.2002 - 05.2005] UZJ100 |
81185-6A081 |
from US $1,261.71 |
||
|
81175
|
81175
81185-6A081 Unit Assy, Headlamp, LhHEADLAMP, LH [12.2006 -] UZJ100 |
81185-6A081 |
from US $1,261.71 |
||
|
9010906334
|
9010906334
90109-06334 BOLT |
90109-06334 |
from US $0.67 |
||
|
9015950353
|
9015950353
90159-50353 SCREW, W-WASHER |
90159-50353 |
from US $0.65 |
||
|
9016740027
|
9016740027
90167-40027 SCREW |
90167-40027 |
from US $0.82 |
||
| replacement | |||||
|
9016740027
|
9016740027
90167-40021 SCREW |
90167-40021 |
from US $0.76 |
||
|
9017905004
|
9017905004
90179-05004 NUT |
90179-05004 |
from US $2.33 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.74 |
||
|
9046708180
|
9046708180
90467-08180 Clip(For Front Bumper Retainer) |
90467-08180 |
from US $1.35 |
||
