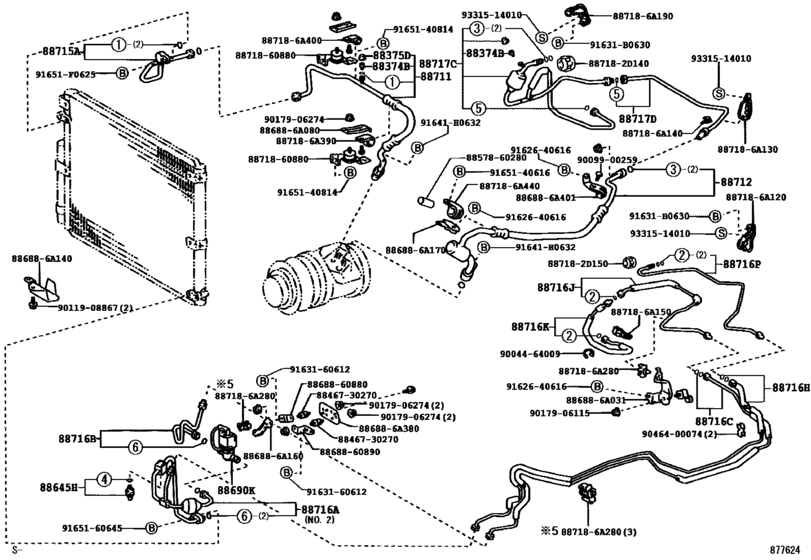

Heating & Air Conditioning - Cooler Piping ([05.2005 - ] FRONT,W(COOL BOX) (0505- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[05.2005 -] UZJ100 |
88374-30010 |
US $4.54 |
||
|
88375D
|
88375D
88375-30280 Cap, Service Valve (For Cooler Pipe)[08.2002 - 05.2005] UZJ100 |
88375-30280 |
from US $0.98 |
||
|
88645H
|
88645H
88645-60030 Switch, Pressure No.1[08.2002 - 05.2005] UZJ100 |
88645-60030 |
from US $85.26 |
||
|
88690K
|
88690K
88690-60230 Valve Assy, Magnet[05.2005 -] UZJ100 |
88690-60230 |
from US $201.31 |
||
|
88711
|
88711
88711-60470 Hose, Cooler Refrigerant Discharge, No.1[12.2002 - 05.2005] UZJ100 |
88711-60470 |
from US $206.02 |
||
|
88711
|
88711
88711-60471 Hose, Cooler Refrigerant Discharge, No.1[05.2005 -] UZJ100 |
88711-60471 |
from US $211.53 |
||
|
88712
|
88712
88712-60851 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [08.2002 - 05.2005] UZJ100 |
88712-60851 |
US $230.05 |
||
| replacement | |||||
|
88712
|
88712
88704-60153 Hose, Cooler Refrigerant Suction, No.1SUCTION [08.2002 - 05.2005] UZJ100 |
88704-60153 |
US $248.98 |
||
|
88715A
|
88715A
88715-60112 Pipe, Cooler Refrigerant Discharge, A[08.2002 - 05.2005] UZJ100 |
88715-60112 |
from US $61.73 |
||
|
88716A
|
88716A
88726-60462 Pipe, Cooler Refrigerant Liquid, A[08.2002 - 05.2005] UZJ100 |
88726-60462 |
from US $77.63 |
||
|
88716A
|
88716A
88726-60671 Pipe, Cooler Refrigerant Liquid, A[05.2005 -] UZJ100 W(COOL BOX) |
88726-60671 |
from US $133.25 |
||
|
88716B
|
88716B
88726-60440 Pipe, Cooler Refrigerant Liquid, B[12.2006 -] UZJ100 |
88726-60440 |
from US $29.56 |
||
|
88716B
|
88716B
88726-60680
Pipe, Cooler Refrigerant Liquid, B
[05.2005 - 11.2006] UZJ100 |
88726-60680 |
— | ||
| replacement | |||||
|
88716B
|
88716B
88726-60440 Pipe, Cooler Refrigerant Liquid, B[05.2005 - 11.2006] UZJ100 |
88726-60440 |
from US $29.56 |
||
|
88716C
|
88716C
88726-60521 Pipe, Cooler Refrigerant Liquid, CCOOLER REFRIGERANT LIQUID, C [08.2002 - 05.2005] UZJ100 |
88726-60521 |
US $168.90 |
||
|
88716H
|
88716H
88726-60531 Pipe, Cooler Refrigerant Liquid, HCOOLER REFRIGERANT LIQUID, H [08.2002 - 05.2005] UZJ100 |
88726-60531 |
US $147.06 |
||
|
88716J
|
88716J
88726-60580
Pipe, Cooler Refrigerant Liquid, J
[08.2002 - 05.2005] UZJ100 |
88726-60580 |
— | ||
|
88716K
|
88716K
88726-60620 Pipe, Cooler Refrigerant Liquid, KCOOLER REFRIGERANT LIQUID, K [08.2002 - 05.2005] UZJ100 |
88726-60620 |
US $69.62 |
||
|
88716P
|
88716P
88726-60740
Pipe, Cooler Refrigerant Liquid, P
[08.2002 - 05.2005] UZJ100 |
88726-60740 |
— | ||
|
88717C
|
88717C
88717-6A190
Pipe, Cooler Refrigerant Suction, C
[08.2002 - 05.2005] UZJ100 |
88717-6A190 |
— | ||
|
88717D
|
88717D
88717-6A140
Pipe, Cooler Refrigerant Suction, D
[05.2005 -] UZJ100 |
88717-6A140 |
— | ||
|
88717D
|
88717D
88717-6A141
Pipe, Cooler Refrigerant Suction, D
[08.2002 - 05.2005] UZJ100 |
88717-6A141 |
— | ||
|
91631B0630
|
91631B0630
91631-B0630 BOLT WWASHER |
91631-B0630 |
US $2.69 |
||
|
91641H0632
|
91641H0632
91641-H0632 BOLT WWASHER |
91641-H0632 |
US $1.60 |
||
|
91651F0625
|
91651F0625
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
886886A031
|
886886A031
88688-6A031
Bracket, Cooler Diaphragm
|
88688-6A031 |
— | ||
|
886886A080
|
886886A080
88688-6A080
Bracket, Cooler Diaphragm
|
88688-6A080 |
— | ||
|
886886A140
|
886886A140
88688-6A140
Bracket, Cooler Diaphragm
|
88688-6A140 |
— | ||
|
886886A160
|
886886A160
88688-6A160
Bracket, Cooler Diaphragm
|
88688-6A160 |
— | ||
|
886886A170
|
886886A170
88688-6A170
Bracket, Cooler Diaphragm
|
88688-6A170 |
— | ||
|
886886A380
|
886886A380
88688-6A380
Bracket, Cooler Diaphragm
|
88688-6A380 |
— | ||
|
886886A401
|
886886A401
88688-6A401
Bracket, Cooler Diaphragm
|
88688-6A401 |
— | ||
|
887182D140
|
887182D140
88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D140 |
from US $6.46 |
||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $5.55 |
||
|
887186A120
|
887186A120
88718-6A120
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A120 |
— | ||
|
887186A130
|
887186A130
88718-6A130
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A130 |
— | ||
|
887186A140
|
887186A140
88718-6A140
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A140 |
— | ||
|
887186A150
|
887186A150
88718-6A150 Pipe, Cooler Refrigerant Suction, No.2 |
88718-6A150 |
US $8.74 |
||
|
887186A190
|
887186A190
88718-6A190
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A190 |
— | ||
|
887186A280
|
887186A280
88718-6A280
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A280 |
— | ||
|
887186A390
|
887186A390
88718-6A390
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A390 |
— | ||
|
887186A400
|
887186A400
88718-6A400
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A400 |
— | ||
|
887186A440
|
887186A440
88718-6A440
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A440 |
— | ||
|
8846730270
|
8846730270
88467-30270 Cushion, Cooler Condenser, No.1 |
88467-30270 |
from US $1.75 |
||
|
8857860280
|
8857860280
88578-60280
Paking, Cooler Air Duct
|
88578-60280 |
— | ||
|
8868860880
|
8868860880
88688-60880
Bracket, Cooler Diaphragm
|
88688-60880 |
— | ||
|
8868860890
|
8868860890
88688-60890
Bracket, Cooler Diaphragm
|
88688-60890 |
— | ||
|
8871860880
|
8871860880
88718-60880 Clamp, Piping |
88718-60880 |
US $29.18 |
||
|
9004464009
|
9004464009
90044-64009 CLAMP |
90044-64009 |
US $1.79 |
||
|
9009900259
|
9009900259
90099-00259
New Genuine Part
|
90099-00259 |
— | ||
|
9011908867
|
9011908867
90119-08867 BOLT WWASHER |
90119-08867 |
US $1.97 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9162640616
|
9162640616
91626-40616 New Genuine Part |
91626-40616 |
US $1.38 |
||
|
9163160612
|
9163160612
91631-60612
New Genuine Part
|
91631-60612 |
— | ||
| replacement | |||||
|
9163160612
|
9163160612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165160645
|
9165160645
91651-60645 BOLT |
91651-60645 |
US $1.79 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.74 |
||
