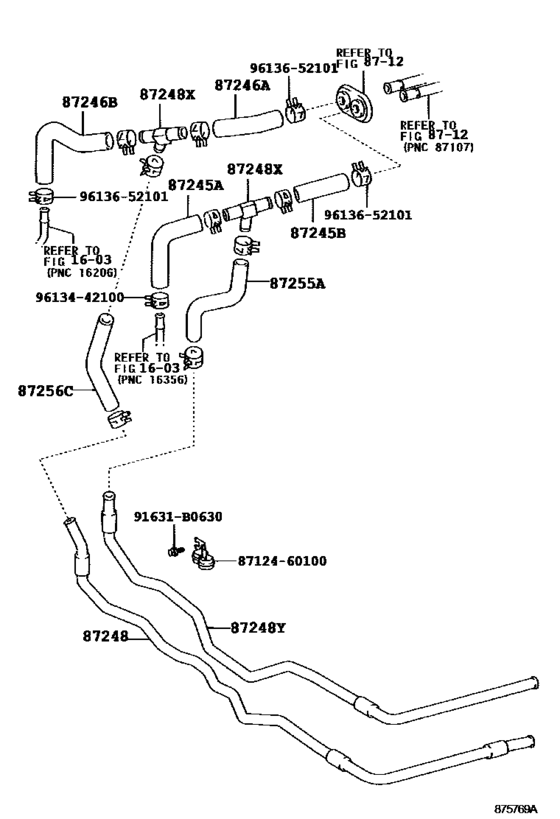

Heating & Air Conditioning - Water Piping ([08.2002 - ] FRONT (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245A
|
87245A
87245-6A220 Hose, Heater Water, Inlet A[08.2002 - 12.2004] UZJ100 |
87245-6A220 |
from US $13.62 |
||
|
87245B
|
87245B
87245-6A210 Hose, Heater Water, Inlet B[08.2002 - 12.2004] UZJ100 |
87245-6A210 |
from US $9.68 |
||
|
87246A
|
87246A
87245-6A180 Hose, Heater Water, Outlet A[08.2002 - 12.2004] UZJ100 |
87245-6A180 |
from US $12.01 |
||
|
87246A
|
87246A
87245-6A181 Hose, Heater Water, Outlet A[01.2005 - 05.2005] UZJ100 |
87245-6A181 |
US $11.29 |
||
|
87246B
|
87246B
87245-6A190 Hose, Heater Water, Outlet B[08.2002 - 12.2004] UZJ100 |
87245-6A190 |
from US $18.14 |
||
|
87246B
|
87246B
87245-6A191 Hose, Heater Water, Outlet B[01.2005 - 05.2005] UZJ100 |
87245-6A191 |
from US $17.47 |
||
|
87248
|
87248
87248-60730
Pipe Sub-Assy, Water
[08.2002 - 12.2004] UZJ100 |
87248-60730 |
— | ||
|
87248X
|
87248X
87248-60460 Pipe Sub-Assy, Heater Water[08.2002 - 12.2004] UZJ100 |
87248-60460 |
from US $7.03 |
||
|
87248Y
|
87248Y
87248-60700
Pipe, Heater Water, No.2
[08.2002 - 12.2004] UZJ100 |
87248-60700 |
— | ||
|
87255A
|
87255A
87245-6A800 Hose, Rear Heater Water Inlet, A(From Engine)[08.2002 - 12.2004] UZJ100 |
87245-6A800 |
from US $15.77 |
||
|
87256C
|
87256C
99556-20155 Hose, Rear Heater Water Outlet, C[08.2002 - 12.2004] UZJ100 *H,L=155 |
99556-20155 |
from US $5.73 |
||
|
91631B0630
|
91631B0630
91631-B0630 BOLT WWASHER |
91631-B0630 |
US $2.69 |
||
|
8712460100
|
8712460100
87124-60100
Clamp, Heater
|
87124-60100 |
— | ||
|
9613442100
|
9613442100
96134-42100 Clip(For Water By-Pass Hose Assy) |
96134-42100 |
from US $0.96 |
||
|
9613652101
|
9613652101
96136-52101 Clip(For Ventilation Hose) |
96136-52101 |
from US $2.37 |
