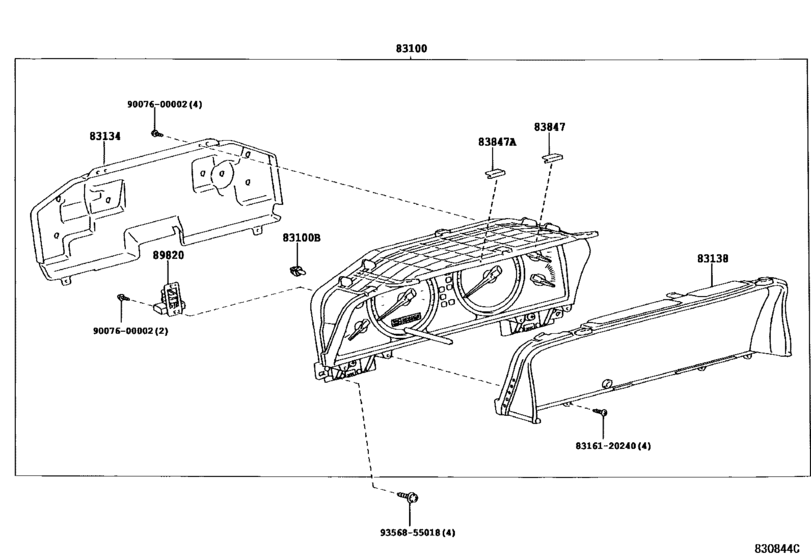

Meter ([08.2002 - ] (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-6D801
Meter Assy, Combination
[05.2005 -] UZJ100 CHINA SPEC |
83800-6D801 |
— | ||
|
83100
|
83100
83800-6D820
Meter Assy, Combination
[08.2002 - 05.2005] UZJ100 |
83800-6D820 |
— | ||
|
83100B
|
83100B
90010-06032 Bulb, Combination Meter, No.1[08.2002 - 05.2005] UZJ100 14V 0.84W,W(SOCKET) |
90010-06032 |
from US $3.12 |
||
|
83134
|
83134
83821-6D870 Cover, Combination Meter, No.1[08.2002 - 05.2005] UZJ100 |
83821-6D870 |
US $34.51 |
||
|
83138
|
83138
83852-6D660 Glass, Speedometer[08.2002 - 05.2005] UZJ100 |
83852-6D660 |
from US $49.82 |
||
|
83847
|
83847
83847-6D870
Cushion, Combination Speedmeter, No.1
[08.2002 - 05.2005] UZJ100 |
83847-6D870 |
— | ||
|
83847A
|
83847A
83848-6D870
Cushion, Combination Speedmeter
[08.2002 - 05.2005] UZJ100 |
83848-6D870 |
— | ||
|
89820
|
89820
89820-60030
Sensor Assy, Inclination
[08.2002 - 05.2005] UZJ100 |
89820-60030 |
— | ||
|
8316120240
|
8316120240
83161-20240 Case, Combination Meter Mirror, No.1 |
83161-20240 |
US $1.69 |
||
|
9007600002
|
9007600002
90076-00002 SCREW TAPPING |
90076-00002 |
US $2.97 |
||
|
9356855018
|
9356855018
93568-55018 SCREW |
93568-55018 |
from US $0.59 |
