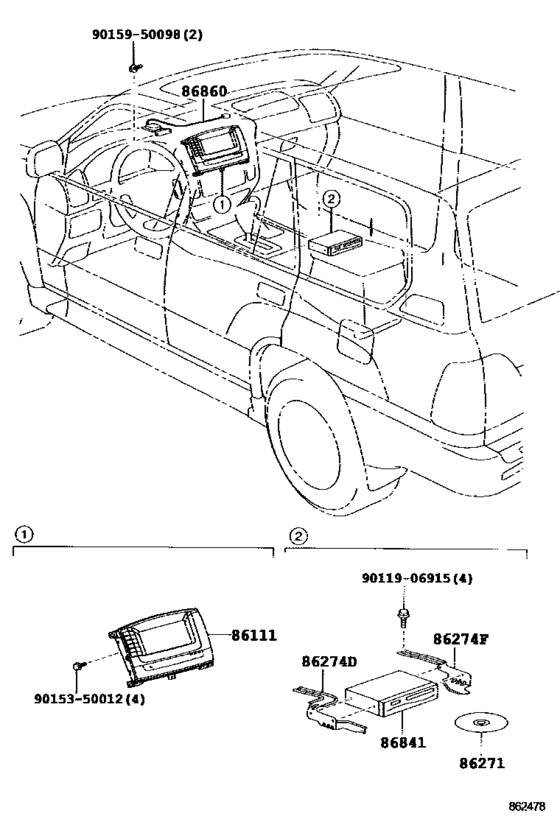

Navigation & Front Monitor Display ([05.2005 - ] EMV & NAVIGATION SYSTEM (0505- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86111
|
86111
86111-60230
Multi-Display
[05.2005 - 08.2007] UZJ100 DENSO |
86111-60230 |
— | ||
| replacement | |||||
|
86111
|
86111
86111-60231
Multi-Display
[05.2005 - 08.2007] UZJ100 DENSO |
86111-60231 |
— | ||
|
86271
|
86271
86807-0N012
Disc, Disc Player
[05.2005 - 09.2005] UZJ100 |
86807-0N012 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-0W028
Disc, Disc Player
[05.2005 - 09.2005] UZJ100 |
86807-0W028 |
— | ||
|
86271
|
86271
86807-0N013
Disc, Disc Player
[10.2005 - 02.2006] UZJ100 |
86807-0N013 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-0W028
Disc, Disc Player
[10.2005 - 02.2006] UZJ100 |
86807-0W028 |
— | ||
|
86271
|
86271
86807-0W021
Disc, Disc Player
[03.2006 - 07.2006] UZJ100 |
86807-0W021 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-0W028
Disc, Disc Player
[03.2006 - 07.2006] UZJ100 |
86807-0W028 |
— | ||
|
86271
|
86271
86807-0W022
Disc, Disc Player
[08.2006 -] UZJ100 |
86807-0W022 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-0W028
Disc, Disc Player
[08.2006 -] UZJ100 |
86807-0W028 |
— | ||
|
86274D
|
86274D
86274-60240 Bracket, Disc Player[05.2005 -] UZJ100 |
86274-60240 |
US $14.56 |
||
|
86274F
|
86274F
86274-60250 Bracket, Disc Player, No.2[05.2005 -] UZJ100 |
86274-60250 |
US $13.69 |
||
|
86841
|
86841
86841-33090 Computer, NavigationNAVIGATION [05.2005 - 08.2007] UZJ100 |
86841-33090 |
from US $3,465.28 |
||
|
86860
|
86860
86860-60080
Antenna Assy, Navigation
[05.2005 -] UZJ100 |
86860-60080 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9015350012
|
9015350012
90153-50012 SCREW CROSSRECESS |
90153-50012 |
US $0.51 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
