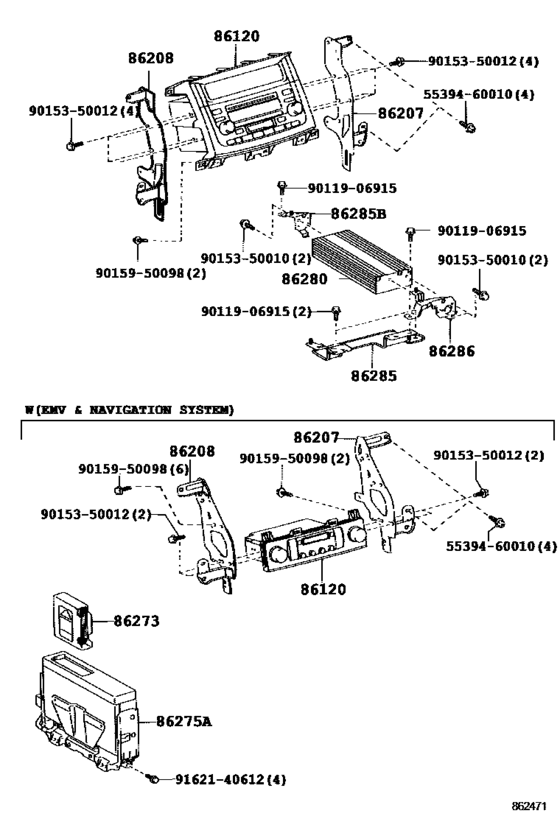

Radio Receiver & Amplifier & Condenser ([05.2005 - ] (0505- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-60580
Receiver Assy, Radio
[08.2002 - 08.2003] UZJ100 PIONEER,ID=P3916,TYPE D:REFER TO ILLUSTRATION |
86120-60580 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-60581
Receiver Assy, Radio
[08.2002 - 08.2003] UZJ100 PIONEER,ID=P3916,TYPE D:REFER TO ILLUSTRATION |
86120-60581 |
— | ||
|
86120
|
86120
86120-60581
Receiver Assy, Radio
[08.2003 - 05.2005] UZJ100 PIONEER,ID=P3930,TYPE D:REFER TO ILLUSTRATION |
86120-60581 |
— | ||
|
86120
|
86120
86120-60750
Receiver Assy, Radio
[05.2005 -] UZJ100 PIONEER,ID=P2734,TYPE E:REFER ILLUST. |
86120-60750 |
— | ||
|
86120
|
86120
86120-60760
Receiver Assy, Radio
[05.2005 -] UZJ100 PIONEER,ID=P3946,TYPE D:REFER ILLUST. |
86120-60760 |
— | ||
|
86207
|
86207
86207-60030
Bracket Sub-Assy, Radio Receiver, Rh
[08.2002 - 05.2005] UZJ100 |
86207-60030 |
— | ||
|
86207
|
86207
86207-60041 Bracket Sub-Assy, Radio Receiver, Rh[05.2005 -] UZJ100 W(EMV & NAVIGATION SYSTEM) |
86207-60041 |
US $22.71 |
||
|
86208
|
86208
86208-60030
Bracket Sub-Assy, Radio Receiver, Lh
[08.2002 - 05.2005] UZJ100 |
86208-60030 |
— | ||
|
86208
|
86208
86208-60041 Bracket Sub-Assy, Radio Receiver, Lh[05.2005 -] UZJ100 W(EMV & NAVIGATION SYSTEM) |
86208-60041 |
US $22.71 |
||
|
86273
|
86273
86273-60060 Magazine, Disc PlayerDISC PLAYER [05.2005 - 02.2007] UZJ100 |
86273-60060 |
US $180.30 |
||
|
86273
|
86273
86273-60070
Magazine, Disc Player
[02.2007 -] UZJ100 |
86273-60070 |
— | ||
|
86275A
|
86275A
86270-60131
Changer, Disc Player
[05.2005 - 01.2007] UZJ100 |
86270-60131 |
— | ||
| replacement | |||||
|
86275A
|
86275A
86270-60132
Changer, Disc Player
[05.2005 - 01.2007] UZJ100 |
86270-60132 |
— | ||
|
86275A
|
86275A
86270-60132
Changer, Disc Player
[02.2007 -] UZJ100 |
86270-60132 |
— | ||
|
86280
|
86280
86280-0W052
Amplifier Assy, Stereo Component
[05.2005 - 09.2005] UZJ100 |
86280-0W052 |
— | ||
| replacement | |||||
|
86280
|
86280
86280-0W053
Amplifier Assy, Stereo Component
[05.2005 - 09.2005] UZJ100 |
86280-0W053 |
— | ||
|
86280
|
86280
86280-0W053
Amplifier Assy, Stereo Component
[10.2005 -] UZJ100 |
86280-0W053 |
— | ||
|
86280
|
86280
86280-60360
Amplifier Assy, Stereo Component
[08.2002 - 08.2003] UZJ100 |
86280-60360 |
— | ||
| replacement | |||||
|
86280
|
86280
86280-60361
Amplifier Assy, Stereo Component
[08.2002 - 08.2003] UZJ100 |
86280-60361 |
— | ||
|
86280
|
86280
86280-60361
Amplifier Assy, Stereo Component
[08.2003 - 05.2005] UZJ100 |
86280-60361 |
— | ||
|
86285
|
86285
86285-60020 Bracket, Amplifier, No.1[08.2002 - 08.2003] UZJ100 |
86285-60020 |
US $33.92 |
||
|
86285
|
86285
86285-60021 Bracket, Amplifier, No.1[08.2003 - 05.2005] UZJ100 |
86285-60021 |
US $28.54 |
||
|
86285B
|
86285B
86285-60030 Bracket, Amplifier, No.1[05.2005 -] UZJ100 |
86285-60030 |
US $9.90 |
||
|
86286
|
86286
86286-60030 Bracket, Amplifier, No.2[05.2005 -] UZJ100 |
86286-60030 |
US $26.79 |
||
|
5539460010
|
5539460010
55394-60010 BOLT INSTRUMENT |
55394-60010 |
US $1.89 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015350012
|
9015350012
90153-50012 SCREW CROSSRECESS |
90153-50012 |
US $0.51 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
|
9162140612
|
9162140612
91621-40612 BOLTWWASHER |
91621-40612 |
from US $0.72 |
||
