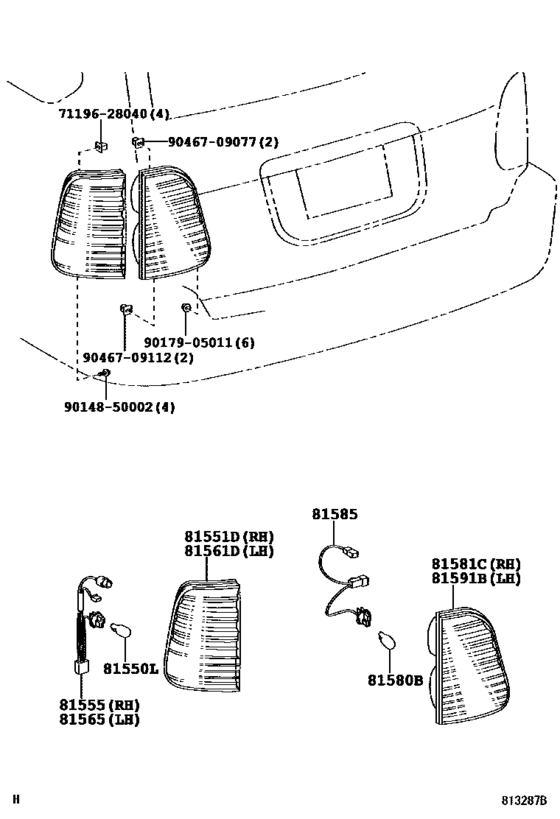

Rear Combination Lamp ([05.2005 - ] (0505- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550L
|
81550L
90981-15021 Bulb (For Front Turn Signal Lamp)[05.2005 - 11.2006] UZJ100 |
90981-15021 |
from US $3.14 |
||
|
81551D
|
81551D
81551-60580 Lens & Body, Rear Combination Lamp, Rh[08.2002 - 05.2005] UZJ100 |
81551-60580 |
US $243.21 |
||
|
81551D
|
81551D
81551-60770 Lens & Body, Rear Combination Lamp, Rh[05.2005 - 11.2006] UZJ100 |
81551-60770 |
US $398.94 |
||
| replacement | |||||
|
81551D
|
81551D
81551-60771 Lens & Body, Rear Combination Lamp, Rh[05.2005 - 11.2006] UZJ100 |
81551-60771 |
from US $385.76 |
||
|
81551D
|
81551D
81551-60771 Lens & Body, Rear Combination Lamp, Rh[12.2006 -] UZJ100 |
81551-60771 |
from US $385.76 |
||
|
81555
|
81555
81555-60590 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.2002 - 05.2005] UZJ100 |
81555-60590 |
US $27.37 |
||
|
81555
|
81555
81555-60770 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.2005 -] UZJ100 |
81555-60770 |
US $33.20 |
||
|
81561D
|
81561D
81561-60500 Lens & Body, Rear Combination Lamp, Lh[08.2002 - 05.2005] UZJ100 |
81561-60500 |
US $245.31 |
||
|
81561D
|
81561D
81561-60690 Lens & Body, Rear Combination Lamp, Lh[05.2005 - 11.2006] UZJ100 |
81561-60690 |
US $398.94 |
||
| replacement | |||||
|
81561D
|
81561D
81561-60691 Lens & Body, Rear Combination Lamp, Lh[05.2005 - 11.2006] UZJ100 |
81561-60691 |
from US $398.59 |
||
|
81561D
|
81561D
81561-60691 Lens & Body, Rear Combination Lamp, Lh[12.2006 -] UZJ100 |
81561-60691 |
from US $398.59 |
||
|
81565
|
81565
81555-60590 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.2002 - 05.2005] UZJ100 |
81555-60590 |
US $27.37 |
||
|
81565
|
81565
81555-60770 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.2005 -] UZJ100 |
81555-60770 |
US $33.20 |
||
|
81580B
|
81580B
90981-13043 Bulb (12V 21W)[08.2002 - 05.2005] UZJ100 12V 21W |
90981-13043 |
from US $3.15 |
||
|
81581C
|
81581C
81581-60090 Lens And Body, Rear Lamp, Rh[08.2002 - 05.2005] UZJ100 |
81581-60090 |
US $260.62 |
||
|
81581C
|
81581C
81581-60170 Lens And Body, Rear Lamp, Rh[05.2005 - 11.2006] UZJ100 |
81581-60170 |
US $366.91 |
||
| replacement | |||||
|
81581C
|
81581C
81581-60171 Lens And Body, Rear Lamp, Rh[05.2005 - 11.2006] UZJ100 |
81581-60171 |
US $366.50 |
||
|
81581C
|
81581C
81581-60171 Lens And Body, Rear Lamp, Rh[12.2006 -] UZJ100 |
81581-60171 |
US $366.50 |
||
|
81585
|
81585
81585-60170 Socket & Wire, Rear Lamp[05.2005 -] UZJ100 |
81585-60170 |
US $27.37 |
||
|
81591B
|
81591B
81591-60120 Lens And Body, Rear Lamp, Lh[08.2002 - 05.2005] UZJ100 |
81591-60120 |
US $260.62 |
||
|
81591B
|
81591B
81591-60200 Lens And Body, Rear Lamp, Lh[05.2005 - 11.2006] UZJ100 |
81591-60200 |
US $366.91 |
||
| replacement | |||||
|
81591B
|
81591B
81591-60201 Lens And Body, Rear Lamp, Lh[05.2005 - 11.2006] UZJ100 |
81591-60201 |
US $366.50 |
||
|
81591B
|
81591B
81591-60201 Lens And Body, Rear Lamp, Lh[12.2006 -] UZJ100 |
81591-60201 |
US $366.50 |
||
|
7119628040
|
7119628040
71196-28040 Clip(for Rear Spoiler) |
71196-28040 |
from US $0.95 |
||
|
9014850002
|
9014850002
90148-50002 Screw Hex Lobular |
90148-50002 |
US $2.33 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.76 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
|
9046709077
|
9046709077
90467-09077 Clip(For Rear Combination Lamp) |
90467-09077 |
from US $0.74 |
||
|
9046709112
|
9046709112
90467-09112 Clip(For Rear Combination Lamp) |
90467-09112 |
from US $1.44 |
||
