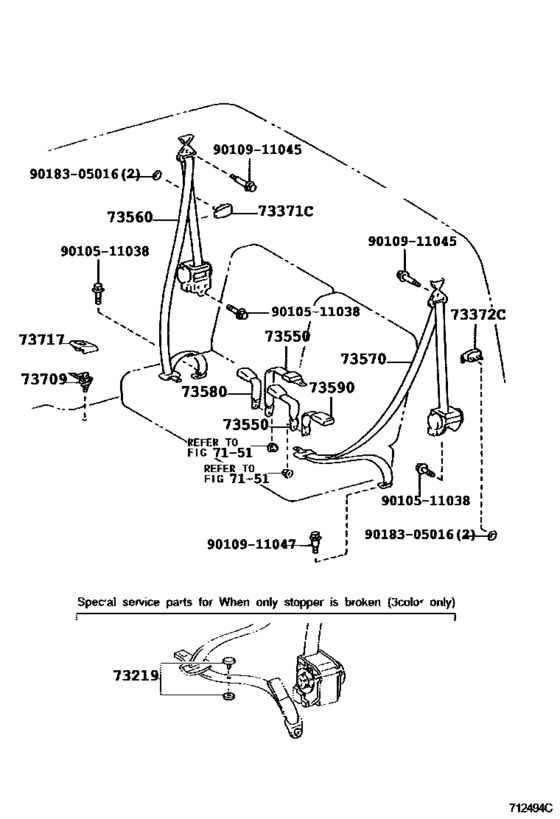

Seat Belt ([08.2002 - ] REAR NO.2 SEAT (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73219
|
73219
73219-33010 Stopper, Tongue Plate[08.2002 - 05.2005] UZJ100 BLACK |
73219-33010 |
from US $0.89 |
||
|
73219
|
73219
73219-33020 Stopper, Tongue Plate[08.2002 - 05.2005] UZJ100 GRAY |
73219-33020 |
from US $1.05 |
||
|
73219
|
73219
73219-33030 Stopper, Tongue Plate[08.2002 - 05.2005] UZJ100 BEIGE |
73219-33030 |
from US $0.89 |
||
|
73371C
|
73371C
73371-60030-A1 Hanger, Rear Seat Shoulder Belt, Rh[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
73371-60030-A1 |
US $13.26 |
||
|
73371C
|
73371C
73371-60030-B3 Hanger, Rear Seat Shoulder Belt, Rh[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
73371-60030-B3 |
US $13.26 |
||
|
73372C
|
73372C
73371-60030-A1 Hanger, Rear Seat Shoulder Belt, Rh[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
73371-60030-A1 |
US $13.26 |
||
|
73372C
|
73372C
73371-60030-B3 Hanger, Rear Seat Shoulder Belt, Rh[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
73371-60030-B3 |
US $13.26 |
||
|
73550
|
73550
73550-60101-A1
Belt Assy, Rear No.2 Seat Lap Type, Center
[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
73550-60101-A1 |
— | ||
|
73550
|
73550
73550-60101-B1
Belt Assy, Rear No.2 Seat Lap Type, Center
[08.2002 - 05.2005] UZJ100 GRAY,TRIM1# |
73550-60101-B1 |
— | ||
|
73550
|
73550
73550-60120-A0
Belt Assy, Rear No.2 Seat Lap Type, Center
[05.2005 - 08.2007] UZJ100 CHINA SPEC,IVORY,TRIM0# |
73550-60120-A0 |
— | ||
|
73550
|
73550
73550-60120-B0
Belt Assy, Rear No.2 Seat Lap Type, Center
[05.2005 - 08.2007] UZJ100 CHINA SPEC,GRAY,TRIM1# |
73550-60120-B0 |
— | ||
|
73560
|
73560
73560-60131-A1 Belt Assy, Rear No.2 Seat, Outer Rh[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
73560-60131-A1 |
US $321.78 |
||
|
73560
|
73560
73560-60131-B1 Belt Assy, Rear No.2 Seat, Outer Rh[08.2002 - 05.2005] UZJ100 GRAY,TRIM1# |
73560-60131-B1 |
US $321.78 |
||
|
73560
|
73560
73560-60161-A0 Belt Assy, Rear No.2 Seat, Outer RhREAR NO.2 SEAT, OUTER RH [05.2005 - 08.2007] UZJ100 CHINA SPEC,IVORY,TRIM0# |
73560-60161-A0 |
US $250.43 |
||
|
73560
|
73560
73560-60161-B0 Belt Assy, Rear No.2 Seat, Outer RhREAR NO.2 SEAT, OUTER RH [05.2005 - 08.2007] UZJ100 CHINA SPEC,GRAY,TRIM1# |
73560-60161-B0 |
US $250.43 |
||
|
73570
|
73570
73570-60132-A1 Belt Assy, Rear No.2 Seat, Outer Lh[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
73570-60132-A1 |
US $321.78 |
||
|
73570
|
73570
73570-60132-B1 Belt Assy, Rear No.2 Seat, Outer Lh[08.2002 - 05.2005] UZJ100 GRAY,TRIM1# |
73570-60132-B1 |
US $321.78 |
||
|
73570
|
73570
73570-60181-A0 Belt Assy, Rear No.2 Seat, Outer LhREAR NO.2 SEAT, OUTER LH [05.2005 - 08.2007] UZJ100 CHINA SPEC,IVORY,TRIM0# |
73570-60181-A0 |
US $331.97 |
||
|
73570
|
73570
73570-60181-B0 Belt Assy, Rear No.2 Seat, Outer LhREAR NO.2 SEAT, OUTER LH [05.2005 - 08.2007] UZJ100 CHINA SPEC,GRAY,TRIM1# |
73570-60181-B0 |
US $331.97 |
||
|
73580
|
73580
73580-60090-A1 Belt Assy, Rear No.2 Seat, Inner Rh[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
73580-60090-A1 |
US $51.40 |
||
|
73580
|
73580
73580-60090-B1 Belt Assy, Rear No.2 Seat, Inner Rh[08.2002 - 05.2005] UZJ100 GRAY,TRIM1# |
73580-60090-B1 |
US $51.40 |
||
|
73590
|
73590
73580-60090-A1 Belt Assy, Rear No.2 Seat, Inner Rh[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
73580-60090-A1 |
US $51.40 |
||
|
73590
|
73590
73580-60090-B1 Belt Assy, Rear No.2 Seat, Inner Rh[08.2002 - 05.2005] UZJ100 GRAY,TRIM1# |
73580-60090-B1 |
US $51.40 |
||
|
73709
|
73709
73709-60040 Bracket Sub-Assy, Tether Anchor[08.2003 - 05.2005] UZJ100 |
73709-60040 |
US $11.07 |
||
|
73717
|
73717
73717-50011-C0 Cover, Child Restraint Seat Tether Anchor[08.2003 - 05.2005] UZJ100 BLACK,TRIM0#,1# |
73717-50011-C0 |
US $3.93 |
||
|
9010511038
|
9010511038
90105-11038 BOLTWASHER BASED |
90105-11038 |
US $1.79 |
||
|
9010911045
|
9010911045
90109-11045 New Genuine Part |
90109-11045 |
US $5.42 |
||
|
9010911047
|
9010911047
90109-11047
New Genuine Part
|
90109-11047 |
— | ||
| replacement | |||||
|
9010911047
|
9010911047
90109-11049 BOLT |
90109-11049 |
US $4.02 |
||
|
9018305016
|
9018305016
90183-05016 NUT |
90183-05016 |
US $1.43 |
||
