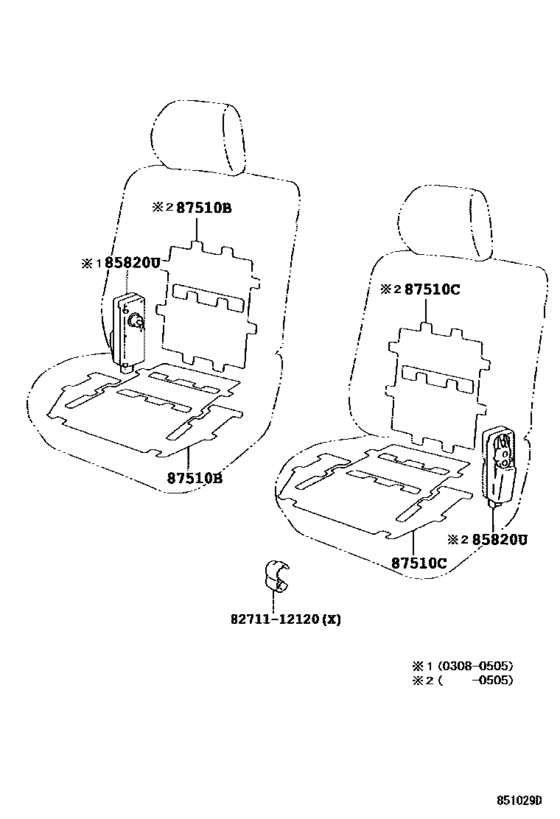

Seat Motor & Seat Heater ([08.2002 - ] (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85820U
|
85820U
85820-30550 Motor Assy, Power Seat[08.2002 - 08.2003] UZJ100 |
85820-30550 |
US $260.62 |
||
| replacement | |||||
|
85820U
|
85820U
85820-60140 Motor Assy, Power SeatPOWER SEAT(FOR LUMBAR SUPPORT) [08.2002 - 08.2003] UZJ100 |
85820-60140 |
US $315.95 |
||
|
87510B
|
87510B
87510-60200 Heater Assy, Front Seat Cushion, Rh[08.2002 - 05.2005] UZJ100 CUSHION |
87510-60200 |
US $375.65 |
||
|
87510B
|
87510B
87510-60240 Heater Assy, Front Seat Cushion, Rh[08.2002 - 05.2005] UZJ100 BACK |
87510-60240 |
US $329.06 |
||
|
87510C
|
87510C
87510-60210
Heater Assy, Front Seat Cushion, Lh
[08.2002 - 05.2005] UZJ100 CUSHION |
87510-60210 |
— | ||
|
87510C
|
87510C
87510-60250
Heater Assy, Front Seat Cushion, Lh
[08.2002 - 05.2005] UZJ100 BACK |
87510-60250 |
— | ||
|
8271112120
|
8271112120
82711-12120 Clamp(Rear Seat) |
82711-12120 |
US $3.40 |
||
