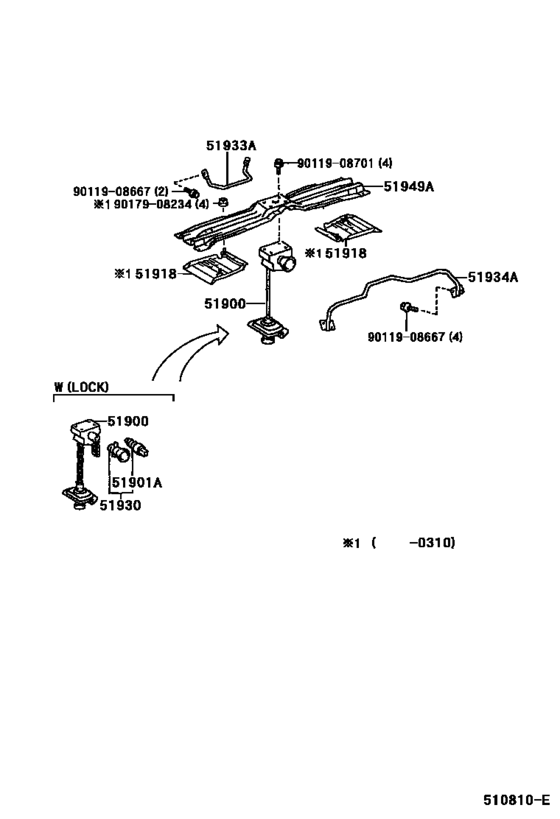

Spare Wheel Carrier ([08.2002 - ] (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51900
|
51900
51900-60260
Carrier Assy, Spare Wheel
[08.2002 - 11.2002] UZJ100 |
51900-60260 |
— | ||
| replacement | |||||
|
51900
|
51900
51900-60261 Carrier Assy, Spare WheelSPARE WHEEL [08.2002 - 11.2002] UZJ100 |
51900-60261 |
US $126.27 |
||
|
51900
|
51900
51900-60270 Carrier Assy, Spare Wheel[11.2002 - 05.2005] UZJ100 |
51900-60270 |
from US $74.59 |
||
|
51901A
|
51901A
51901-0W010
Key Sub-Assy, Spare Wheel Carrier
[11.2002 - 05.2005] UZJ100 |
51901-0W010 |
— | ||
|
51918
|
51918
51918-60020 Bracket, Spare Wheel Stopper[08.2002 - 10.2003] UZJ100 |
51918-60020 |
US $45.08 |
||
|
51930
|
51930
51930-0W010
Lock Assy, Spare Wheel Carrier
[11.2002 - 05.2005] UZJ100 |
51930-0W010 |
— | ||
| replacement | |||||
|
51930
|
51930
51930-0W011 Lock Assy, Spare Wheel Carrier[11.2002 - 05.2005] UZJ100 |
51930-0W011 |
from US $83.64 |
||
|
51930
|
51930
51930-0W011 Lock Assy, Spare Wheel Carrier[08.2006 - 08.2007] UZJ100 |
51930-0W011 |
from US $83.64 |
||
|
51933A
|
51933A
51903-60151
Stopper, Spare Wheel, No.1
[05.2005 -] UZJ100 W(FUEL SUB TANK) |
51903-60151 |
— | ||
|
51933A
|
51933A
51933-60141 Stopper, Spare Wheel, No.1[08.2002 - 05.2005] UZJ100 |
51933-60141 |
US $28.48 |
||
|
51934A
|
51934A
51904-60061 Stopper, Spare Wheel, No.2[08.2002 - 05.2005] UZJ100 |
51904-60061 |
US $101.92 |
||
|
51949A
|
51949A
51281-60110 Crossmember, Spare Wheel Carrier[08.2002 - 10.2003] UZJ100 |
51281-60110 |
US $270.23 |
||
|
51949A
|
51949A
51281-60111 Crossmember, Spare Wheel Carrier[10.2003 - 05.2005] UZJ100 |
51281-60111 |
US $291.20 |
||
|
9011908667
|
9011908667
90119-08667 BOLT |
90119-08667 |
from US $1.20 |
||
|
9011908701
|
9011908701
90119-08701 BOLT |
90119-08701 |
from US $0.97 |
||
|
9017908234
|
9017908234
90179-08234 NUT |
90179-08234 |
from US $0.80 |
||
