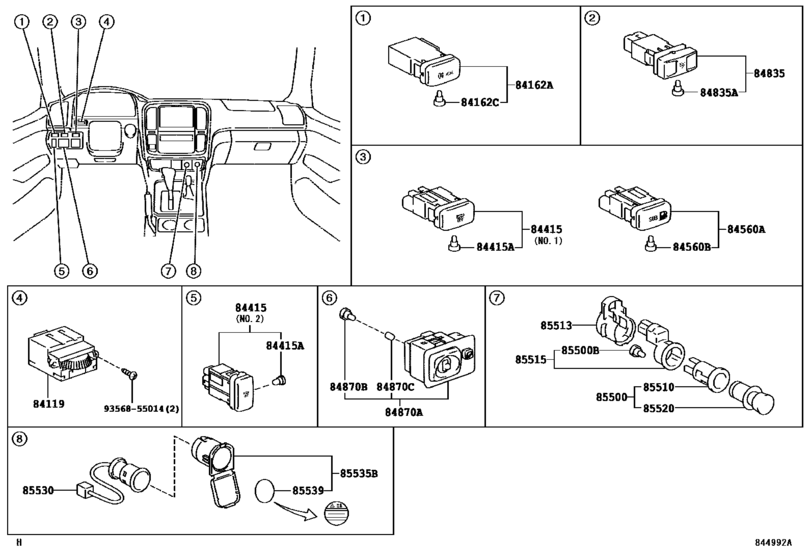

Switch & Relay & Computer ([08.2002 - ] INSTRUMENT PANEL SWITCH (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84119
|
84119
84119-60130 Rheostat, Light Control[08.2002 - 05.2005] UZJ100 |
84119-60130 |
US $118.81 |
||
|
84162A
|
84162A
84165-60060 Switch, Rear Fog LampREAR FOG LAMP [08.2002 - 05.2005] UZJ100 |
84165-60060 |
US $55.91 |
||
|
84162C
|
84162C
90010-01039 Blub, Center Cluster Module Switch[08.2002 - 05.2005] UZJ100 14V0.91W,W(GREEN CAP |
90010-01039 |
from US $3.17 |
||
|
84415
|
84415
84415-60010
Switch, Curtain Airbag Cutoff
[05.2005 -] UZJ100 NO.2 |
84415-60010 |
— | ||
|
84415
|
84415
84415-60020 Switch, Curtain Airbag Cutoff[08.2002 - 05.2005] UZJ100 NO.1 |
84415-60020 |
US $57.51 |
||
|
84415A
|
84415A
90010-01061 Bulb (For Headlamp Leveling Switch)[08.2002 - 05.2005] UZJ100 |
90010-01061 |
from US $3.48 |
||
|
84560A
|
84560A
84560-60050 Switch Assy, Fuel ControlFUEL CONTROL [05.2005 -] UZJ100 |
84560-60050 |
from US $51.19 |
||
|
84560B
|
84560B
90010-01039 Blub, Center Cluster Module Switch[05.2005 -] UZJ100 |
90010-01039 |
from US $3.17 |
||
|
84835
|
84835
84835-60040
Switch, Power Quarter Window
[08.2002 - 05.2005] UZJ100 |
84835-60040 |
— | ||
|
84835A
|
84835A
84999-10310 Bulb, Air Conditioner Control[08.2002 - 05.2005] UZJ100 |
84999-10310 |
from US $2.85 |
||
|
84870A
|
84870A
84870-60080 Switch Assy, Outer Mirror[08.2002 - 05.2005] UZJ100 |
84870-60080 |
from US $116.44 |
||
|
84870B
|
84870B
84999-10470 Bulb, Hazard Warning Signal Switch[08.2002 - 05.2005] UZJ100 14V 1.12W |
84999-10470 |
from US $4.92 |
||
|
84870C
|
84870C
84998-10430 Cap, Outer Mirror Switch Bulb[08.2002 - 05.2005] UZJ100 |
84998-10430 |
from US $1.71 |
||
|
85500
|
85500
85500-89106
Lighter Assy, Cigarette
[08.2002 - 05.2005] UZJ100 |
85500-89106 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[08.2002 - 05.2005] UZJ100 |
85500-12240 |
from US $26.71 |
||
|
85500B
|
85500B
90010-01022 Bulb, Key Cylinder Lamp[08.2002 - 05.2005] UZJ100 14V 1.4W,W(GREEN CAP) |
90010-01022 |
from US $2.51 |
||
|
85510
|
85510
85510-16040 Socket & Retainer Assy, Cigarlighter[08.2002 - 05.2005] UZJ100 |
85510-16040 |
US $27.05 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[08.2002 - 05.2005] UZJ100 |
85513-12020 |
from US $4.85 |
||
|
85515
|
85515
85515-60010 Stay, Cigarette Lighter Bezel[08.2002 - 05.2005] UZJ100 |
85515-60010 |
from US $6.76 |
||
|
85520
|
85520
85520-89101 Knob And Element Assy, Cigarette Lighter[08.2002 - 05.2005] UZJ100 |
85520-89101 |
from US $16.74 |
||
|
85530
|
85530
85530-33020 Socket Assy, Power Outlet, No.1[08.2002 - 05.2005] UZJ100 |
85530-33020 |
from US $14.90 |
||
| replacement | |||||
|
85530
|
85530
85530-06010 Socket Assy, Power Outlet, No.1[08.2002 - 05.2005] UZJ100 |
85530-06010 |
from US $26.06 |
||
|
85535B
|
85535B
85535-60040-C0 Cover, Power Outlet Socket (BLACK)[08.2002 - 05.2005] UZJ100 BLACK,TRIM0#,1# |
85535-60040-C0 |
from US $10.05 |
||
|
85535B
|
85535B
85535-60120-C0
Cover, Power Outlet Socket, No.1
[02.2007 - 08.2007] UZJ100 CHINA SPEC,BLACK,TRIM00,10 |
85535-60120-C0 |
— | ||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[08.2002 - 05.2005] UZJ100 |
85539-60020 |
US $1.41 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
