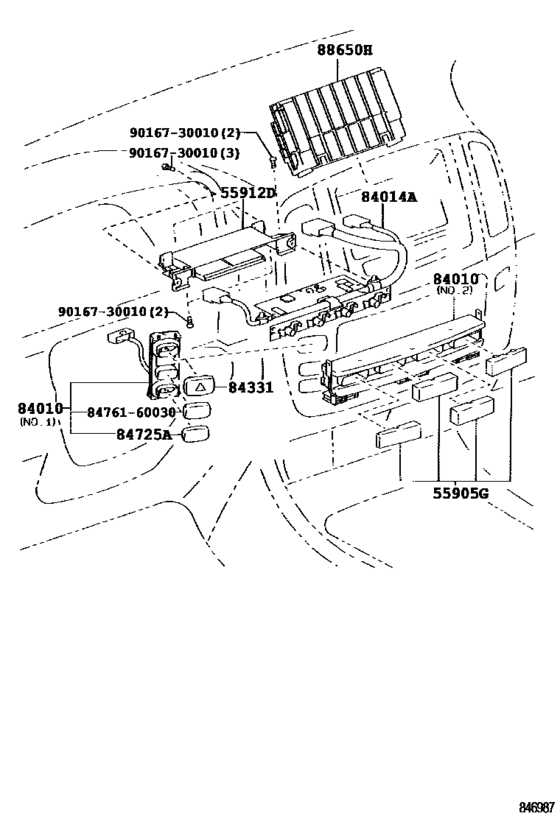

Switch & Relay & Computer ([05.2005 - ] CENTER CLUSTER INTEGRATION (0505- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55905G
|
55905G
55905-60820
Knob Sub-Assy, Control
[05.2005 -] UZJ100 |
55905-60820 |
— | ||
|
55912D
|
55912D
55912-60180 Housing, Heater Control[05.2005 -] UZJ100 |
55912-60180 |
US $26.64 |
||
|
84010
|
84010
84010-60520 Switch Assy, Center Cluster Integration[08.2002 - 05.2005] UZJ100 |
84010-60520 |
US $138.03 |
||
|
84010
|
84010
84012-60320 Switch Assy, Center Cluster Integration[05.2005 - 08.2007] UZJ100 NO.2 |
84012-60320 |
US $47.03 |
||
|
84014A
|
84014A
84014-60280 Board Sub-Assy, Printed Wire Integration, No.2PRINTED WIRE INTEGRATION, NO.2 [05.2005 -] UZJ100 |
84014-60280 |
US $650.83 |
||
|
84331
|
84331
84331-60080 Knob, Hazard Warning Signal SwitchHAZARD WARNING SIGNAL SWITCH [08.2002 - 05.2005] UZJ100 |
84331-60080 |
US $5.53 |
||
| replacement | |||||
|
84331
|
84331
84331-60060 Knob, Hazard Warning Signal SwitchHAZARD WARNING SIGNAL SWITCH [08.2002 - 05.2005] UZJ100 |
84331-60060 |
US $5.64 |
||
|
84725A
|
84725A
84725-60110 Switch, Differential Lock[08.2002 - 05.2005] UZJ100 |
84725-60110 |
US $10.34 |
||
|
88650H
|
88650H
88650-60B31
Amplifier Assy, Air Conditioner
[05.2005 -] UZJ100 |
88650-60B31 |
— | ||
|
8476160030
|
8476160030
84761-60030 Knob, Antenna Switch |
84761-60030 |
US $10.34 |
||
|
9016730010
|
9016730010
90167-30010 SCREW PAN TAPPING |
90167-30010 |
US $1.08 |
||
