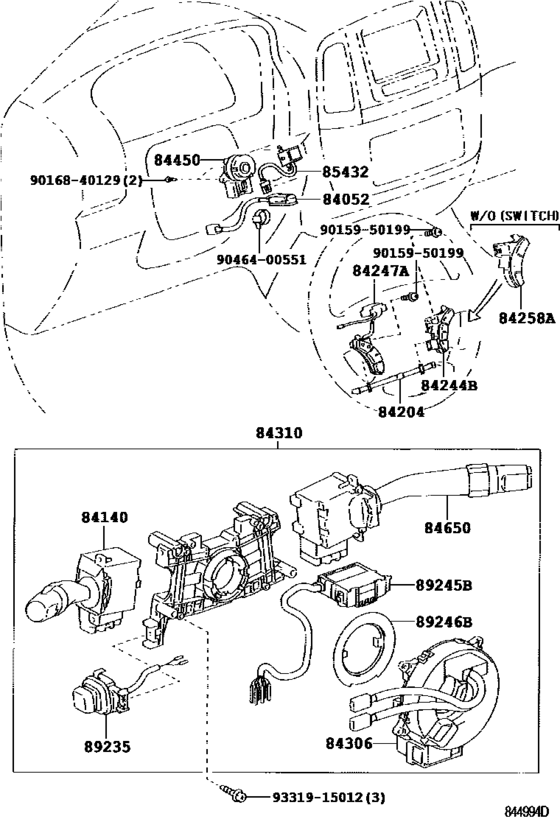

Switch & Relay & Computer ([08.2002 - ] IGNITION & COMBINATION SWITCH (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-33040 Switch Assy, Un-Lock Warning[08.2002 - 05.2005] UZJ100 |
84052-33040 |
US $22.54 |
||
|
84140
|
84140
84140-33020 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2002 - 05.2005] UZJ100 |
84140-33020 |
from US $107.73 |
||
|
84204
|
84204
84204-58010 Cable Sub-Assy, Steering Pad Switch[05.2005 -] UZJ100 |
84204-58010 |
from US $33.08 |
||
|
84244B
|
84244B
84244-60051-B0 Switch, Steering Pad, RhSTEERING PAD, RH [05.2005 - 08.2007] UZJ100 DK.GRAY,TRIM1# |
84244-60051-B0 |
US $65.96 |
||
|
84244B
|
84244B
84244-60051-E0
Switch, Steering Pad, Rh
[05.2005 - 08.2007] UZJ100 SANDAL WOOD,TRIM0# |
84244-60051-E0 |
— | ||
|
84247A
|
84247A
84247-58020-B0 Switch, Steering Pad, Lh[08.2003 - 05.2005] UZJ100 DK.GRAY,TRIM1# |
84247-58020-B0 |
US $132.84 |
||
|
84247A
|
84247A
84247-58020-E1 Switch, Steering Pad, Lh[08.2003 - 05.2005] UZJ100 SANDAL WOOD,TRIM0# |
84247-58020-E1 |
from US $90.27 |
||
|
84247A
|
84247A
84247-60020-B0 Switch, Steering Pad, Lh[08.2002 - 08.2003] UZJ100 DK.GRAY,TRIM1# |
84247-60020-B0 |
US $109.20 |
||
|
84247A
|
84247A
84247-60020-E0 Switch, Steering Pad, Lh[08.2002 - 08.2003] UZJ100 SANDAL WOOD,TRIM0# |
84247-60020-E0 |
US $109.20 |
||
| replacement | |||||
|
84247A
|
84247A
84247-60020-B0 Switch, Steering Pad, Lh[08.2002 - 08.2003] UZJ100 SANDAL WOOD,TRIM0# |
84247-60020-B0 |
US $109.20 |
||
|
84258A
|
84258A
84258-58010-B0
Cover, Steering Pad, Rh
[08.2002 - 05.2005] UZJ100 DK.GRAY,TRIM1# |
84258-58010-B0 |
— | ||
| replacement | |||||
|
84258A
|
84258A
84258-58010-C0 Cover, Steering Pad, Rh[08.2002 - 05.2005] UZJ100 DK.GRAY,TRIM1# |
84258-58010-C0 |
US $22.13 |
||
|
84258A
|
84258A
84258-58010-E1 Cover, Steering Pad, Rh[08.2002 - 05.2005] UZJ100 SANDAL WOOD,TRIM0# |
84258-58010-E1 |
US $22.89 |
||
|
84306
|
84306
84306-33090
Cable Sub-Assy, Spiral
[08.2002 - 04.2003] UZJ100 |
84306-33090 |
— | ||
| replacement | |||||
|
84306
|
84306
84306-60080 Cable Sub-Assy, Spiral[08.2002 - 04.2003] UZJ100 |
84306-60080 |
from US $165.98 |
||
|
84306
|
84306
84306-60080 Cable Sub-Assy, Spiral[04.2003 - 05.2005] UZJ100 |
84306-60080 |
from US $165.98 |
||
|
84306
|
84306
84306-60100
Cable Sub-Assy, Spiral
[04.2007 - 08.2007] UZJ100 CHINA SPEC |
84306-60100 |
— | ||
|
84310
|
84310
84310-60D80
Switch Assy, Turn Signal
[04.2007 -] UZJ100 CHINA SPEC |
84310-60D80 |
— | ||
|
84310
|
84310
84310-6B320 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] UZJ100 |
84310-6B320 |
US $684.32 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[08.2002 - 05.2005] UZJ100 |
84450-12200 |
from US $54.43 |
||
|
84650
|
84650
84652-60860
Switch Assy, Windshield Wiper
[08.2002 - 09.2004] UZJ100 |
84652-60860 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-60861
Switch Assy, Windshield Wiper
[08.2002 - 09.2004] UZJ100 |
84652-60861 |
— | ||
|
84650
|
84650
84652-6A030
Switch Assy, Windshield Wiper
[09.2004 - 05.2005] UZJ100 |
84652-6A030 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-6A031
Switch Assy, Windshield Wiper
[09.2004 - 05.2005] UZJ100 |
84652-6A031 |
— | ||
|
85432
|
85432
85432-60050 Solenoid, Key Inter Lock[07.2004 - 05.2005] UZJ100 |
85432-60050 |
US $62.38 |
||
|
89235
|
89235
89235-60010 Switch, Tilt Steering[08.2002 - 05.2005] UZJ100 |
89235-60010 |
US $49.62 |
||
|
89245B
|
89245B
89245-60020 Sensor, Steering[08.2002 - 05.2005] UZJ100 |
89245-60020 |
US $326.73 |
||
|
89246B
|
89246B
89246-22020 Disc, Sensor Steering[08.2002 - 05.2005] UZJ100 |
89246-22020 |
from US $78.64 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.51 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $1.08 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
