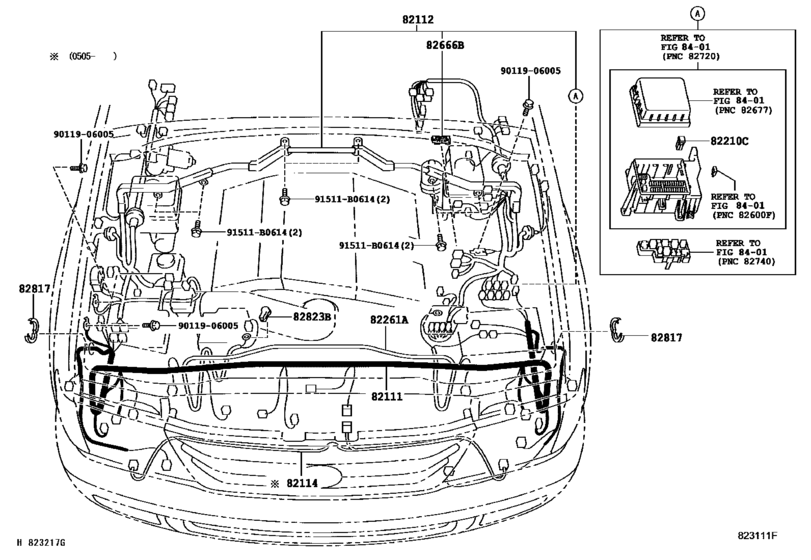

Wiring & Clamp ([08.2002 - ] ENGINE ROOM (0208- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- Europe
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-6A024 Wire, Engine Room MainENGINE ROOM MAIN [08.2002 - 05.2005] UZJ100 |
82111-6A024 |
US $500.86 |
||
|
82111
|
82111
82111-6A025 Wire, Engine Room MainENGINE ROOM MAIN [05.2005 - 09.2006] UZJ100 |
82111-6A025 |
US $500.86 |
||
| replacement | |||||
|
82111
|
82111
82111-6A026 Wire, Engine Room MainENGINE ROOM MAIN [05.2005 - 09.2006] UZJ100 |
82111-6A026 |
US $500.86 |
||
|
82111
|
82111
82111-6A026 Wire, Engine Room MainENGINE ROOM MAIN [09.2006 -] UZJ100 |
82111-6A026 |
US $500.86 |
||
|
82112
|
82112
82112-60444 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [08.2002 - 07.2004] UZJ100 |
82112-60444 |
US $2,256.80 |
||
|
82112
|
82112
82112-60445
Wire, Engine Room, No.2
[07.2004 - 05.2005] UZJ100 |
82112-60445 |
— | ||
|
82112
|
82112
82112-60600 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [05.2005 - 07.2006] UZJ100 CHINA SPEC |
82112-60600 |
US $2,271.36 |
||
|
82112
|
82112
82112-60601
Wire, Engine Room, No.2
[07.2006 - 01.2007] UZJ100 CHINA SPEC |
82112-60601 |
— | ||
| replacement | |||||
|
82112
|
82112
82112-60602
Wire, Engine Room, No.2
[07.2006 - 01.2007] UZJ100 CHINA SPEC |
82112-60602 |
— | ||
|
82112
|
82112
82112-60602
Wire, Engine Room, No.2
[02.2007 -] UZJ100 CHINA SPEC |
82112-60602 |
— | ||
|
82114
|
82114
82114-60090 Wire, Engine Room, No.4[05.2005 -] UZJ100 |
82114-60090 |
US $66.74 |
||
|
82210C
|
82210C
90982-08283 Fusible Link[08.2002 - 05.2005] UZJ100 30A,TERMINAL:FEMALE |
90982-08283 |
from US $1.35 |
||
|
82210C
|
82210C
90982-08284 Fusible Link[08.2002 - 05.2005] UZJ100 40A,TERMINAL:FEMALE |
90982-08284 |
from US $10.57 |
||
|
82210C
|
82210C
90982-08285 Fusible Link[08.2002 - 05.2005] UZJ100 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.88 |
||
|
82210C
|
82210C
90982-08291 Fusible Link[08.2002 - 05.2005] UZJ100 80A |
90982-08291 |
US $7.88 |
||
|
82261A
|
82261A
82261-60061 Wire, AlternatorALTERNATOR [08.2002 - 07.2004] UZJ100 |
82261-60061 |
US $218.40 |
||
|
82261A
|
82261A
82261-60141 Wire, Alternator[07.2004 - 05.2005] UZJ100 |
82261-60141 |
US $218.40 |
||
|
82261A
|
82261A
82261-60142 Wire, Alternator[05.2005 -] UZJ100 |
82261-60142 |
US $218.40 |
||
|
82666B
|
82666B
82666-60060 Holder, Connector No.2[08.2002 - 05.2005] UZJ100 |
82666-60060 |
US $3.67 |
||
|
82817
|
82817
82817-24110 Protector, Wiring Harness, No.1[08.2002 - 05.2005] UZJ100 |
82817-24110 |
US $5.42 |
||
|
82823B
|
82823B
82823-22050 Cap, Terminal, No.1[08.2002 - 05.2005] UZJ100 |
82823-22050 |
from US $3.57 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
